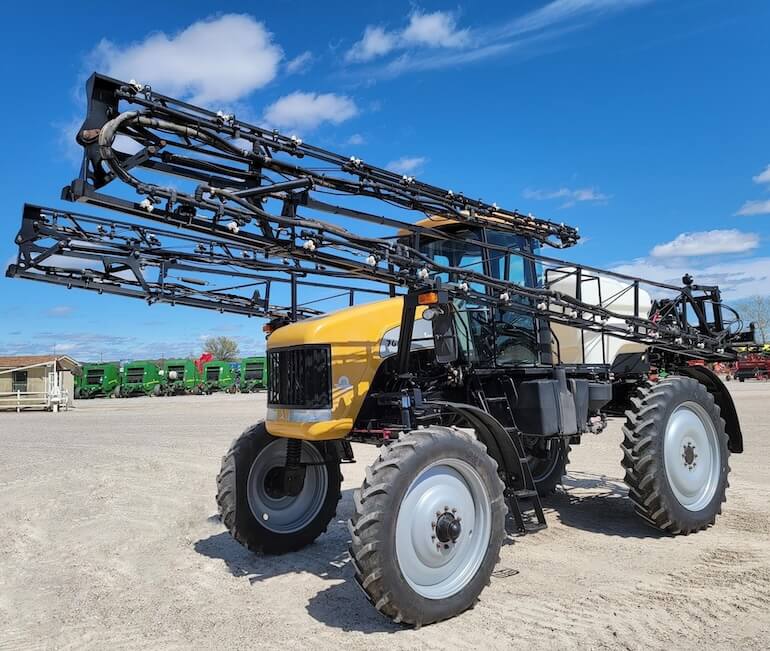

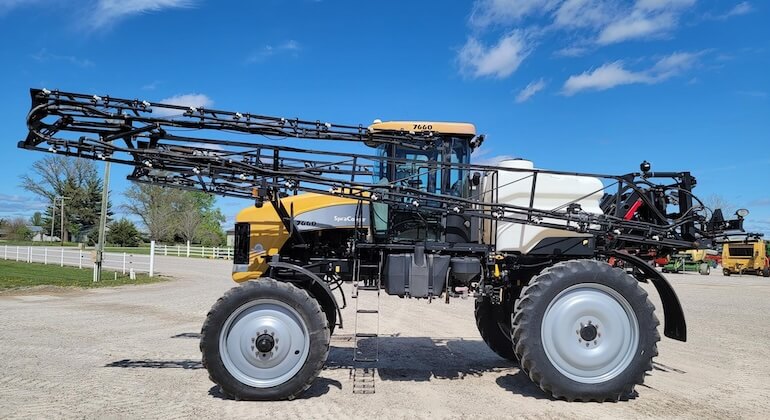

The Agco Spra-Coupe 7660 Self-Propelled Sprayer is a top-tier choice for farmers and agricultural professionals seeking cutting-edge technology and exceptional performance in crop spraying. This model is renowned for its robust design, precision, and versatility, making it ideal for a wide range of agricultural applications.
Equipped with a powerful engine, the Spra-Coupe 7660 delivers reliable and consistent performance, even under challenging field conditions. Its high-capacity tank allows for extended operation times, minimizing the need for frequent refills and maximizing productivity. The advanced control systems ensure precise application rates and uniform coverage, reducing chemical usage and enhancing crop health.
Agco Spra-Coupe 7660 Boom
| Max Boom Width | 90 ft (27.4 m) |
| Min Boom Width | 60 ft (18 m) |
| Nozzle Spacing | 20 in (51 cm) |
| Number of Sections | 5 |
| Tire Size | Front – 320/85R38, Rear – 320/90R46 |
Spra-Coupe 7660 Dimensions
| Overall Length | 28 in (72 cm) |
| Transport Height | 12 ft (4 m) |
| Transport Width | 10 ft (3 m) |
| Wheelbase | 13 ft (4 m) |
Spra-Coupe 7660 Engine Specs
| Aspiration | Wastegated turbocharger |
| Displacement | 365 cu in (5,981 cu cm) |
| Engine Model | Perkins 1106D – Diesel 7.0 L (6 Cylinders); – Maximum Power 205 kW; – Maximum Torque 1050 Nm @ 1400 rpm; – Rated Speed 2200-2500 rpm; Caterpillar C-6.6 ACERT (optional) – Diesel 6.6 L (6 Cylinders); – Maximum Power 129 kW; – Maximum Torque 824 Nm @ 1400 rpm; – Rated Speed 2200 rpm; |
| Emissions | UN ECE R96 Stage IIIA, Brazil MAR-1, China NRIII |
| Maximum Power | 205 kW |
| Minimum Power | 116 kW |
Spra-Coupe 7660 Operating Specs
| Operating Weight | 23,956 lbs (10,866 kg) |
| Dry Weight – min | 17,800 lbs (8,074 kg) |
| Solution Tank Capacity | 725 gal (2,744 l) |
| Fuel Capacity | 65 gal (246 l) |
| Fuel Capacity | 65 gal (246 l) |
Spra-Coupe 7660 Transmission
| Max Speed | 28 mph (44 kph) |
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 2 |
| Transmission Type | CAT PG 115 fully electronic power shift with torque converter |
The Spra-Coupe 7660 features a comfortable and user-friendly cab with intuitive controls, providing operators with a seamless and efficient spraying experience. Its superior maneuverability and durable construction make it a dependable choice for handling various field layouts and terrains.
Overall, the Agco Spra-Coupe 7660 Self-Propelled Sprayer combines advanced technology, durability, and efficiency, making it an indispensable tool for modern farming operations dedicated to achieving optimal crop protection and yield.
