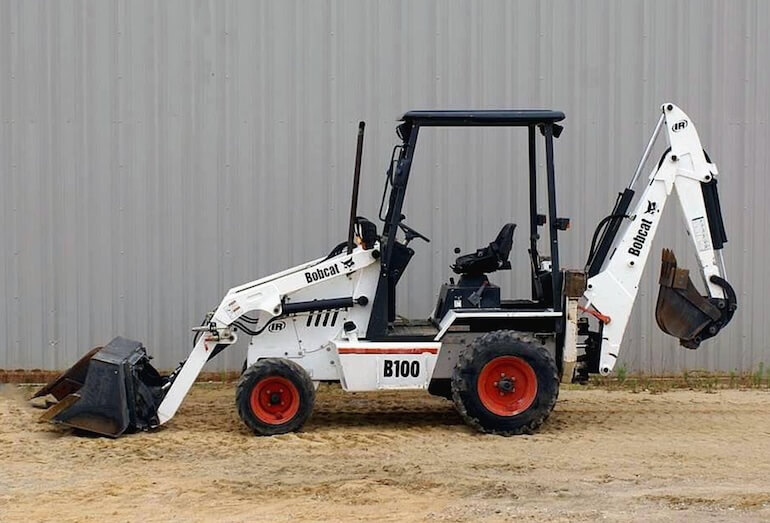

The Bobcat B100 Backhoe Loader, produced in 2002 by Bobcat, a part of Ingersoll Rand, is a versatile and efficient machine designed to handle a variety of construction and landscaping tasks.
This backhoe loader combines the capabilities of a backhoe and a loader, offering operators the flexibility to dig, lift, and transport materials with ease.
Bobcat B100 Dimensions
| Height to Top of Suspended Cab | 93 in (236 cm) |
| Transport Length | 202 in (513 cm) |
| Transport Width | 78.7 in (200 cm) |
| Wheelbase | 64 in (162 cm) |
Bobcat B100 Engine Specs
| Engine Model | Kubota D1105 Diesel 3-cylinder |
| Net Power | 32 hp (23 kw) |
| Displacement | 68.5 ci (1.1 L) |
| Bore/Stroke | 3.071×3.087 in (78 x 78 mm) |
Bobcat B100 Backhoe Specifications
| Bucket Dig Force | 5,409 lbs (2,453 kg) |
| Dig Depth | 9 ft (3 m) |
| Load Height | 8 ft (2 m) |
| Loading Height | 7 ft (2 m) |
| Max Digging Depth | 9 ft (3 m) |
| Reach From Swivel | 12 ft (4 m) |
Bobcat B100 Loader Specifications
| Breakout Force | 3,600 lbs (1,633 kg) |
| Bucket Capacity | 1 cu yd (0 cu m) |
| Clearance at Max Dump Height | 6 ft (2 m) |
| Dig Depth | 3 in (7 cm) |
| Lift Capacity | 1,600 lbs (726 kg) |
| Reach at Max Dump Height | 4 ft (1 m) |
| SAE – Net | 32 hp (23 kw) |
Bobcat B100 Operating Specs
| Fuel Capacity | 15 gal (55 l) |
| Operating Weight | 4,865 lbs (2,207 kg) |
| Operating Weight 4WD | 5,752 lbs (2,609 kg) |
| Front Tire Size (2WD / 4WD) | 23×8.5×12 |
| Rear Tires Size (2WD / 4WD) | 31×15.5×15 (10/75-15.3) |
| Turning Radius | 14 ft (4 m) |
Bobcat B100 Transmission Specs
| Max Speed | 5 mph (8 kph) |
| Transmission Type | hydrostatic |
| 4Th Gear Fwd | 5 mph (8 kph) |
Built with Bobcat’s renowned engineering and durability, the B100 features robust construction and advanced hydraulics, ensuring reliable performance in demanding job sites.
Its compact design allows for excellent maneuverability in confined spaces, making it an ideal choice for urban construction projects and other environments where space is limited. The operator’s cab is designed for comfort and visibility, enhancing safety and productivity during long work hours.
With the B100 Backhoe Loader, Bobcat continues its tradition of providing high-quality, versatile equipment that meets the needs of a wide range of applications, from digging and trenching to material handling and site preparation.
What difference between Bobcat B100 and B200 Backhoe Loaders?
The main differences between the Bobcat B100 and B200 backhoe loaders usually lie in specific features and productivity upgrades. Here are some key features that set these backhoe loaders apart from each other (Bobcat B100 vs Bobcat B200):
Engine Power: 25 hp 18.6 kW vs 31.5 hp (23.5 kW);
Wheelbase: 64 in (162 cm) vs 65 in (165 cm);
Weight: 4865 lbs (2206 kg) vs 6220 lbs (2821 kg);
Dig depth: 107 in (271 cm) vs 121 in (307 cm);
Dump angle: 39 in (99 cm) vs 45 in (114 cm).
