The Bobcat B200 Backhoe Loader, introduced in 2002, is a pioneering machine that combines the functionality of a skid-steer loader and a backhoe into one compact, versatile unit. Designed to tackle a variety of construction and landscaping tasks, the B200 offers efficiency, power, and ease of use, making it an invaluable asset for contractors and operators looking for a reliable and adaptable piece of equipment.
At the heart of the B200 is a robust engine that delivers sufficient horsepower to handle demanding jobs with ease. This power, coupled with Bobcat’s advanced hydraulic system, ensures smooth operation and precise control, whether you’re digging trenches, moving materials, or performing site preparation. The backhoe’s digging depth and reach capabilities make it suitable for a wide range of applications, from utility work to general construction tasks.
Bobcat B200 Engine Specs
| Engine Model | Kubota D1105 |
| Engine Type | Vertical, water cooled 4-cycle diesel engine |
| Number of cylinders | 3 |
| Aspiration | Turbocharged |
| Net Power | 31.5 hp (23.5 kW) @ 3000 rpm |
| Max Torque | 65 lb-ft (88.1 Nm) / @ 2000 rpm |
| Displacement | 68.5 cu in (1.1 L) |
| Bore/Stroke | 3.07 x 3.09 in (78.0 x 78.4 mm) |
| Fuel Tank Capacity | 14.5 gal (55 L) |
| Battery | 12 V |
Bobcat B200 Transmission Specs
| Transmission Type | Hydrostatic |
| Chassis | 4×4 4WD |
| Steering | 4-wheel steering |
| Gears | Infinite forward / reverse |
| Max Speed | 4.5 mph (7.2 km/h) |
Bobcat B200 Backhoe Performance
| Maximum Dig Depth | 121 in (3073 mm) |
| Reach From Center of Swing Point | 159 in (4039 mm) |
| Maximum Bucket Tooth Height | 155 in (3948 mm) |
| Backhoe Max Dump Height | 97 in (2464 mm) |
| Dig Force-Bucket | 5,320 lb (2,413 kg) |
| Dig Force-Dipper | 3,042 lb (1,380 kg) |
Bobcat B200 Loader Performance
| Height to Bucket Hinge Pin | 102 in (2596 mm) |
| Maximum Reach at Ground Level | 51 in (1295 mm) |
| Reach @ Maximum Height | 37 in (940 mm) |
| Loader Max Dump Height | 75 in (1910 mm) |
| Dump Angle @ Maximum Height | 45° |
| Rollback Angle | 40° |
| Rated Operating Capacity (SAE) | 2250 lbs (1021 kg) |
| Lift Breakout Force (SAE) | 3825 lbs (1735 kg) |

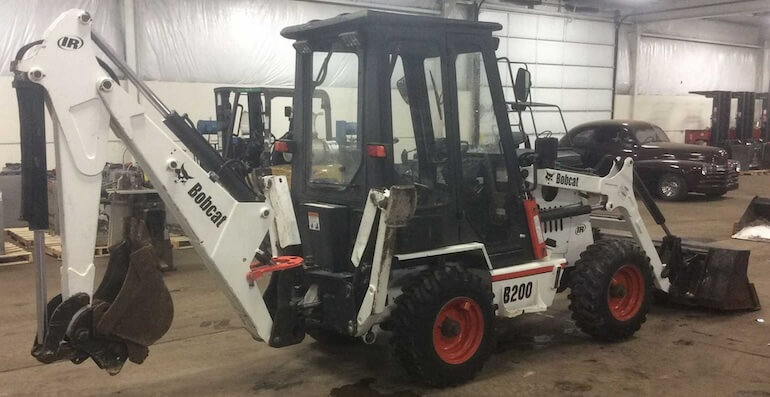

Bobcat B200 Backhoe Loader Dimensions
One of the standout features of the B200 is its compact size and maneuverability. This allows the machine to operate efficiently in confined spaces where larger equipment might struggle. The machine’s design integrates the backhoe and loader functions seamlessly, enabling quick transitions between tasks without the need for multiple pieces of equipment.
| Overall Length in Travel Position | 222 in (5640 mm) |
| Width (with bucket) | 63 in (1600 mm) |
| Height with Operator Cab | 93 in (2362 mm) |
| Wheelbase | 65 in (1659 mm) |
| Front Tire | 10.0/75-15.3 |
| Rear Tire | 10.0/75-15.3 |
| Turning Radius | 11.9 ft (3.63 m) |
| Operating Weight | 6,220 lbs (2,821 kg) |
| Cab | ROPS/FOPS. Cab optional with available heater |
Durability and reliability are key attributes of the B200. Built to withstand the rigors of tough job sites, the machine’s components are engineered for long-lasting performance and reduced maintenance. This means less downtime and more productivity on the job.
The operator experience in the B200 is enhanced by a well-designed, comfortable cabin. With easy-to-use controls and good visibility, operators can work more efficiently and with greater precision. The machine’s ergonomic design reduces operator fatigue, making it ideal for long workdays.
In summary, the Bobcat B200 Backhoe Loader, produced in 2002, stands out for its versatility, power, and operator-friendly features. Its ability to perform multiple tasks with ease, combined with its durability and compact design, makes it a valuable tool for a wide range of construction and landscaping projects. Whether you need to dig, lift, or move materials, the B200 delivers reliable performance to get the job done efficiently.
