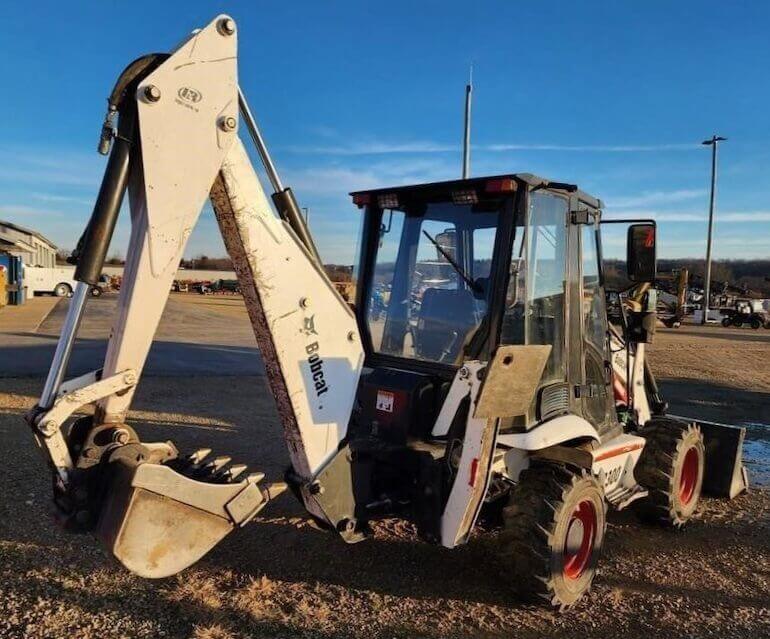

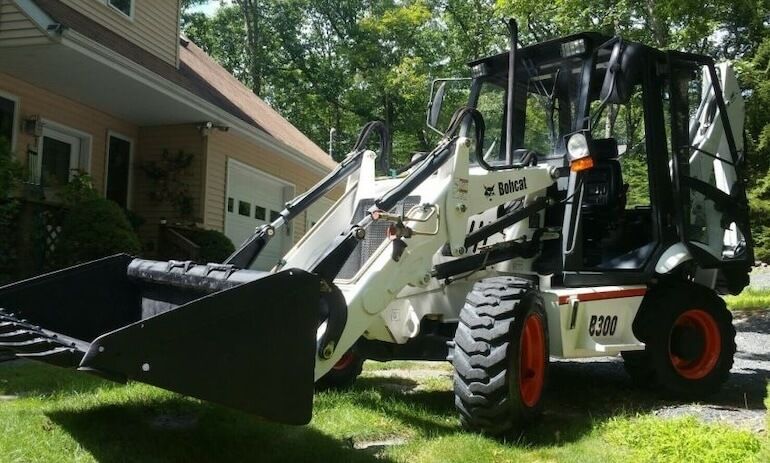

The Bobcat B300 Loader Backhoe, introduced in 2002, is a versatile and powerful machine designed to handle a variety of tasks in construction, landscaping, and agricultural settings. As part of Bobcat’s legacy of innovation, the B300 combines the capabilities of a loader and a backhoe, offering a comprehensive solution for operators who require efficiency, reliability, and performance in a single piece of equipment.
At its core, the Bobcat B300 is powered by a robust diesel engine Kubota V2203 that delivers impressive horsepower, ensuring the machine can tackle demanding jobs with ease. The engine’s power is complemented by an advanced hydraulic system that provides smooth and precise control over both the loader and backhoe functions. This system ensures that the B300 can handle heavy loads, dig deep trenches, and perform a wide range of other tasks with exceptional efficiency.
Bobcat B300 Backhoe Loader Engine Specs
| Engine Model | Kubota V2203 |
| Engine Type | Vertical, water cooled 4-cycle diesel engine |
| Number of cylinders | 4 |
| Aspiration | Naturally aspirated |
| Net Power | 46 hp (34.3 kW) @ 2800 |
| Max Torque | 105.6 lb-ft (143.2 Nm) @ 1600 rpm |
| Displacement | 134.1 cu in (2.2 L) |
| Bore/Stroke | 3.43 x 3.64 in (87.0 x 92.4 mm) |
| Fuel Tank Capacity | 25.1 gal (95 L) |
| Battery | 12 V |
Durability and reliability are key attributes of the Bobcat B300. The machine is built with high-quality components designed to withstand the rigors of tough job sites. Its robust construction ensures long-lasting performance and reduces the need for frequent maintenance, allowing operators to focus on their work without worrying about equipment downtime.
Bobcat B300 Transmission Specs
| Transmission Type | Hydrostatic |
| Chassis | 4×4 4WD |
| Steering | 4-wheel steering |
| Gears | Infinite forward / reverse |
| Max Speed | 9 mph (14.5 km/h) |
Bobcat B300 Loader Performance
The loader component of the B300 is designed for optimal performance in material handling, excavation, and site preparation. Its high lifting capacity and breakout force make it ideal for moving large volumes of soil, gravel, or other materials quickly and efficiently.
| Height to Bucket Hinge Pin | 113 in (2870 mm) |
| Maximum Reach at Ground Level | 51 in (1295 mm) |
| Reach @ Maximum Height | 18 in (451 mm) |
| Loader Max Dump Height | 80 in (2038 mm) |
| Dump Angle @ Maximum Height | 69° |
| Rollback Angle | 40° |
| Rated Operating Capacity (SAE) | 3200 lbs (1452 kg) |
| Lift Breakout Force (SAE) | 8430 lbs (3825 kg) |
The backhoe, on the other hand, offers substantial digging depth and reach, making it suitable for trenching, utility work, and other excavation tasks.
The combination of these two capabilities in one machine reduces the need for multiple pieces of equipment on the job site, saving time and increasing productivity.
Bobcat B300 Backhoe Performance
| Maximum Dig Depth | 117 in (2972 mm) |
| Reach From Center of Swing Point | 159 in (4030 mm) |
| Maximum Bucket Tooth Height | 159 in (4035 mm) |
| Backhoe Max Dump Height | 101 in (2561 mm) |
| Dig Force-Bucket | 5633 lbs (2555 kg) |
| Dig Force-Dipper | 3221 lbs (1461 kg) |

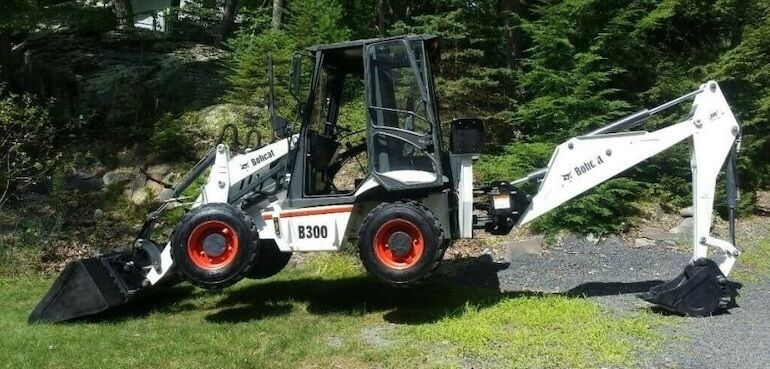

Bobcat B300 Dimensions & Weight
One of the standout features of the B300 is its compact size and maneuverability. Despite its powerful performance, the machine is designed to operate in confined spaces where larger equipment might struggle. This makes it an excellent choice for urban construction sites, landscaping projects, and other applications where space is limited.
| Overall Length in Travel Position | 226 in (5749 mm) |
| Width (with bucket) | 74 in (1873 mm) |
| Height with Operator Cab | 93 in (2359 mm) |
| Wheelbase | 72 in (1819 mm) |
| Turning Radius | 15 ft (5 m) |
| Operating Weight | 9015 lbs (4089 kg) |
Operator comfort and ease of use are also prioritized in the B300’s design. The machine features an ergonomic cabin with intuitive controls and excellent visibility, allowing operators to work with greater precision and less fatigue. The comfortable seating and well-placed controls ensure that operators can remain productive throughout long workdays.
In summary, the Bobcat B300 Loader Backhoe from 2002 is a versatile and reliable machine that combines the capabilities of a loader and a backhoe into one powerful package. With its robust engine, advanced hydraulic system, compact size, and operator-friendly design, the B300 is an invaluable asset for a wide range of construction, landscaping, and agricultural projects.
