The Bobcat B900 Backhoe Loader stands out in its class with exceptional performance and innovative features designed to maximize productivity and reduce operating costs. With a superior digging depth that is 3-5% greater than other backhoe loaders in its class, the B900 ensures unmatched performance in a variety of applications. Its optimized design allows for economy mode operations at 1200 RPM and power mode at 1400 RPM, delivering high performance even at low engine speeds for significant fuel savings.
The B900 features Bobcat’s i-Connect Telematics solution, allowing operators to monitor the machine from anywhere. This system provides real-time alerts on fuel levels, temperature increases, and water contamination in fuel. It also tracks the machine’s work location, usage, and allows for the creation of geo-fences to restrict movement, offering superior control and peace of mind.

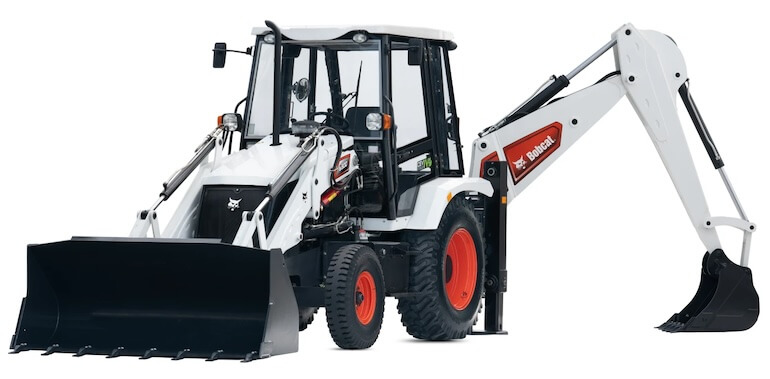

Bobcat B900 Engine Specs
Powering the B900 is a reliable 74 HP Ashok Leyland engine, known for its robust performance and low fuel consumption. The backhoe loader is equipped with industry-leading components, enhancing durability, performance, and reducing maintenance needs. Major structural components are reinforced and manufactured in-house at Bobcat’s Chennai facility, ensuring long-lasting reliability.
| Engine Model | Ashok Leyland / H4C47422 |
| Aspiration | Turbocharged |
| Number of cylinders | 4 |
| Displacement | 3839 cc (3.8 L) |
| Engine Power | 74 hp (54.4 kW) @ 2200 rpm |
| Maximum torque | 336 Nm @ 1400 rpm |
| Cooling | Water Cooled |
| Fuel | Diesel |
| Battery | 12 volts / 130 Ah |
| Alternator | 90A |
| Emission | CEV STAGE IV |
Bobcat B900 Transmission Specs
A heavy-duty Carraro transmission and rear axle deliver higher torque and best-in-class performance, while the balanced front axle cylinders and 16-degree oscillation ensure optimal performance on uneven terrains.
| Transmission Model | Carraro |
| Transmission Type | Synchroshuttle |
| Number of speeds (F/R) | 4/4 |
| Maximum Speed | 24.9 mph (40 km/h) |
| Front Axle | 2WD Steer axle, centrally Pivoted, with oscillation angle 16° |
| Rear Axle | Rigidly mounted rear axle with outbound planetary drives |
| Steering Type | Front Wheel Steering (With dedicated steering pump) |
| Service Brakes | Hydraulic wet multi disc, dual pedal braking |
| Parking Brakes | Mechanical control on rear axle |
| Tires Size | Front 9 x 16 / Rear 16.9 x 28 |
Bobcat B900 Backhoe Loader Hydraulic Specs
The hydraulic system of the B900 is designed for efficiency and longevity. A hydraulic hose distribution box in the backhoe hydraulic circuit increases the life of the hoses and minimizes leakages, reducing downtime. The machine boasts 7-10% higher breakout forces, enhancing its capability for hard ground excavation, dozing, and loading performance.
| System type | Open center |
| Pump | Variable Displacement Axial Piston Pump |
| System Pressure | 3190 psi (220 Bar) |
| Flow | 119 L/min |
| Backhoe Controls | Manual Controls |
| Loader Controls | Manual Controls |
| Stabilizer Type | Side Shift Stabilizers |
The B900’s load-sensing variable displacement hydraulic pump from Parker delivers 119 liters per minute at 2200 RPM, adjusting flow based on load requirements to boost productivity without increasing fuel consumption. A dedicated steering pump reduces the engine power needed to operate the steering system, freeing up the main hydraulic pump and further saving fuel.

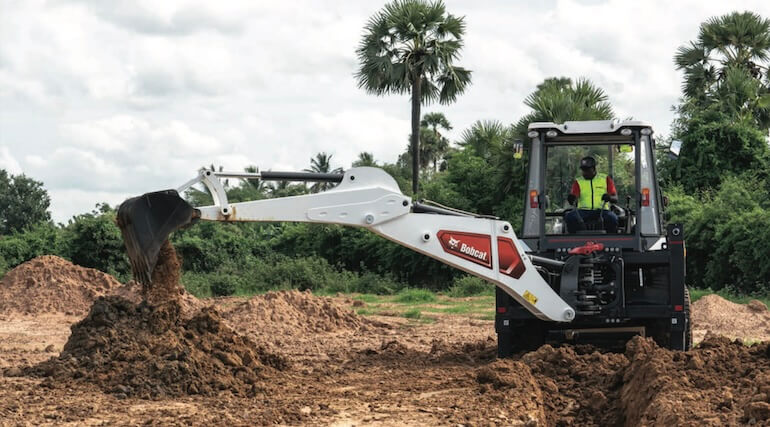

Bobcat B900 Backhoe Performance
| Bucket Capacity | 0.35 yd3 (0.27 m3) |
| Max bucket breakout force | 13,717 lbf (60.0 kN / 6121 kgf) |
| Arm teatout retracted | 6,773 lbf (30.13 kN / 3072 kgf) |

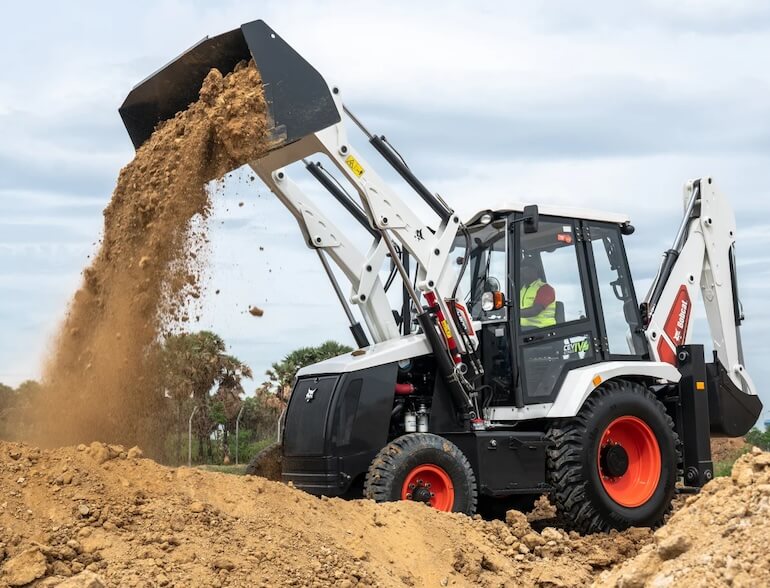

Bobcat B900 Loader Performance
| Bucket capacity GP | 1.4 yd3 (1.1 m3) |
| Breakout force bucket | 13,481 lbf (59.9 kN / 6115 kgf) |
| Breakout force arm | 13,717 lbf (61.0 kN / 6222 kgf) |
| Rated operating capacity a max. height | 9153.6 lb (4152 kg) |

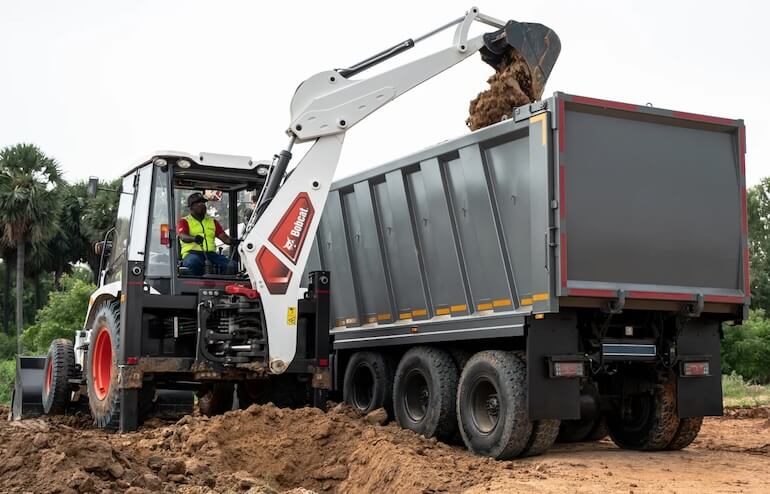

Bobcat B900 Backhoe Loader Working Range
| Max Dig Depth | 195.5 in (4966 mm) |
| Max Reach from Rear Axle Centre | 281 in (7135 mm) |
| Max Reach from Swing Centre | 228.6 in (5807 mm) |
| Max Digging Height | 247.5 in (6288 mm) |
| Max Loading Reach | 71.3 in (1812 mm) |
| Bucket Pivot Angle | 202° |
| Loader Dump Height | 107.7 in (2737 mm) |
| Hinge Pin Height | 138.3 in (3514 mm) |
| Reach at Full Height | 52.3 in (1329 mm) |
| Dump Reach | 33.6 in (853 mm) |
| Loader Bucket Dig Depth | 5.7 in (145 mm) |
The B900’s higher ground clearance allows for better operation on rough and undulated surfaces, protecting powertrain components from damage. Its best-in-class front wheel turning radius provides superior maneuverability, making it ideal for confined working areas.
A large cooling package with an efficient cooling fan ensures the machine can operate for long hours without overheating, extending the lifespan of its components.

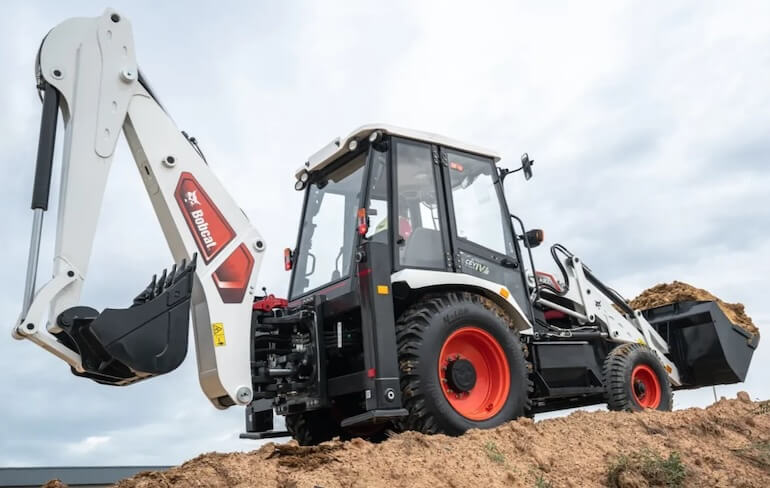

Bobcat B900 Operating Weight & Dimensions
| Operating Weight | 17614.9 lb (7,990 kg) |
| Overall Length in Travel Position | 241.8 in (6,144 mm) |
| Overall Width | 90 in (2,286 mm) |
| Overall Width with Bucket | 92.5 in (2,350 mm) |
| Overall Height in Travel Position | 148 in (3,760 mm) |
| Height to Cab | 117.4 in (2,983 mm) |
| Wheelbase | 85.4 in (2,170 mm) |
| Ground Clearance | 15 in (382 mm) |
| Rear Wheel Track | 67.9 in (1,725 mm) |
| Front Wheel Track | 77.4 in (1,965 mm) |
| Turning Circle – Outside Front Wheel (With Brake) | 248 in (6,300 mm) |
| Turning Circle – Outside Widest Loader Bucket (With Brake) | 362.2 in (9,200 mm) |

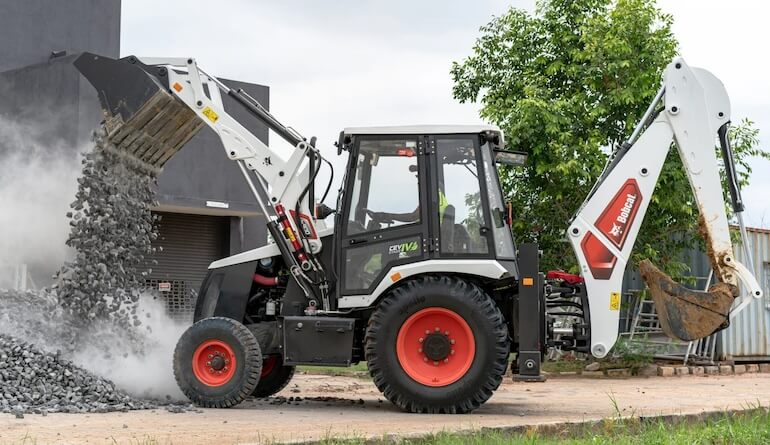

Bobcat B900 Service Capacity
| Engine Oil | 2.2 gal (8.5 L) |
| Cooling System | 4.2 gal (16 L) |
| Fuel Tank Capacity | 36.9 gal (140 L) |
| Hydraulic Tank Capacity | 18.5 gal (70 L) |
| Transmission Oil | 4.2 gal (16 L) |
| Axle Oil Front | 2.4 gal (9.1 L) |
| Axle Oil Rear | 4.6 gal (17.5 L) |
Bobcat B900 Attachments
- Combination Bucket, 84 in (2134 mm)
- Trenching Bucket, 0.92 yd3 (0.7 m3)
- Trenching Bucket, 1.18 yd3 (0.9 m3)
- HB1180 Hydraulic Breaker with Nail Point
- HB1380 Hydraulic Breaker with Nail Point
- HB2380 Hydraulic Breaker with Nail Point
- HB280 Hydraulic Breaker with Nail Point
- HB980 Hydraulic Breaker with Nail Point
- Heavy Duty Pallet Fork Frame, 4K
- 6-in-1 Loader Bucket, 89.7 in (2,280 mm), 1,44 yd3 (1.1 m)
Operator comfort is a priority in the B900’s design. The spacious cabin offers excellent visibility and is equipped with ergonomically placed control levers and switches for convenient operation. The side control panel cluster features large displays and easy-to-read indicators. Additional convenience features include a standard radio cum MP3 player, a multi-directional fan for better airflow, and LED dome lights for improved interior lighting.
In summary, the Bobcat B900 Backhoe Loader combines powerful performance, advanced technology, and operator comfort, making it a top choice for those seeking efficiency and durability in their heavy machinery. With its superior digging depth, robust engine, efficient hydraulic system, and innovative telematics, the B900 offers excellent total cost of ownership and reliable performance for a wide range of applications.
