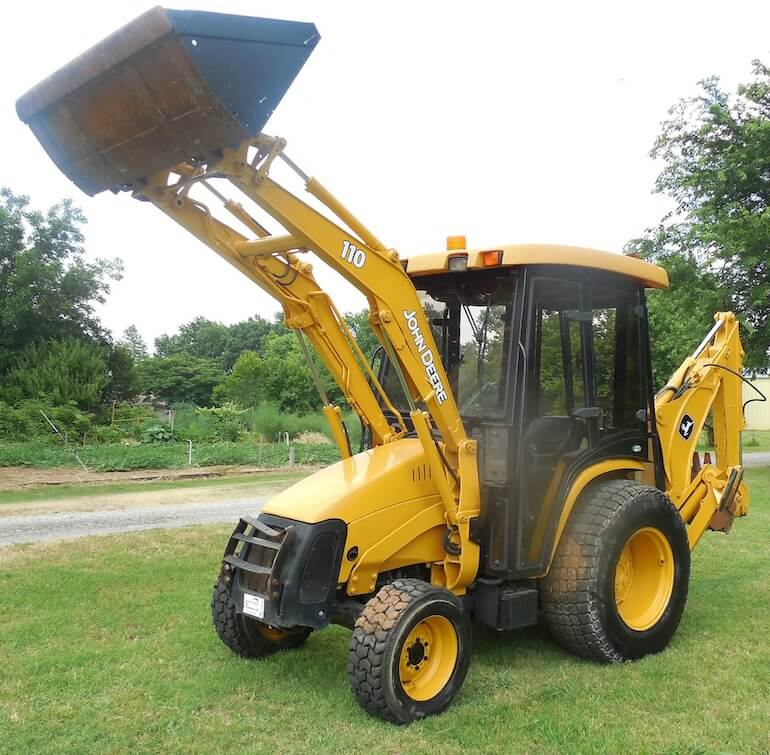

The John Deere 110 Backhoe Loader is a versatile and powerful piece of equipment designed for a wide range of construction and agricultural tasks. Manufactured with the reliability and durability that John Deere is known for, the 110 Backhoe Loader combines the functionality of a loader and a backhoe in one compact machine.
Equipped with a robust engine and advanced hydraulics, this machine delivers exceptional digging, lifting, and loading capabilities. The operator-friendly design includes features such as easy-to-use controls, comfortable seating, and excellent visibility, ensuring efficient and safe operation in various working conditions.

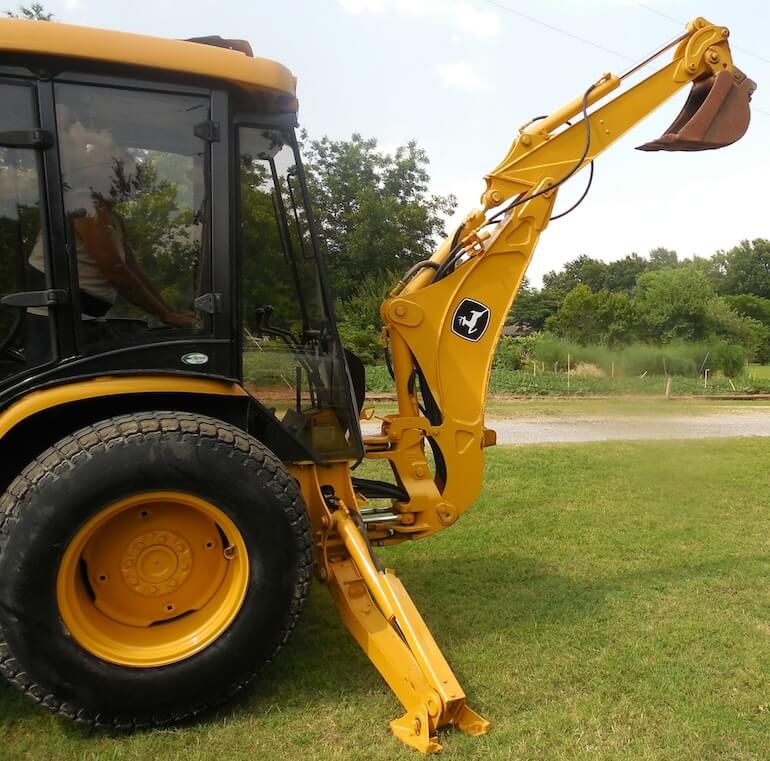

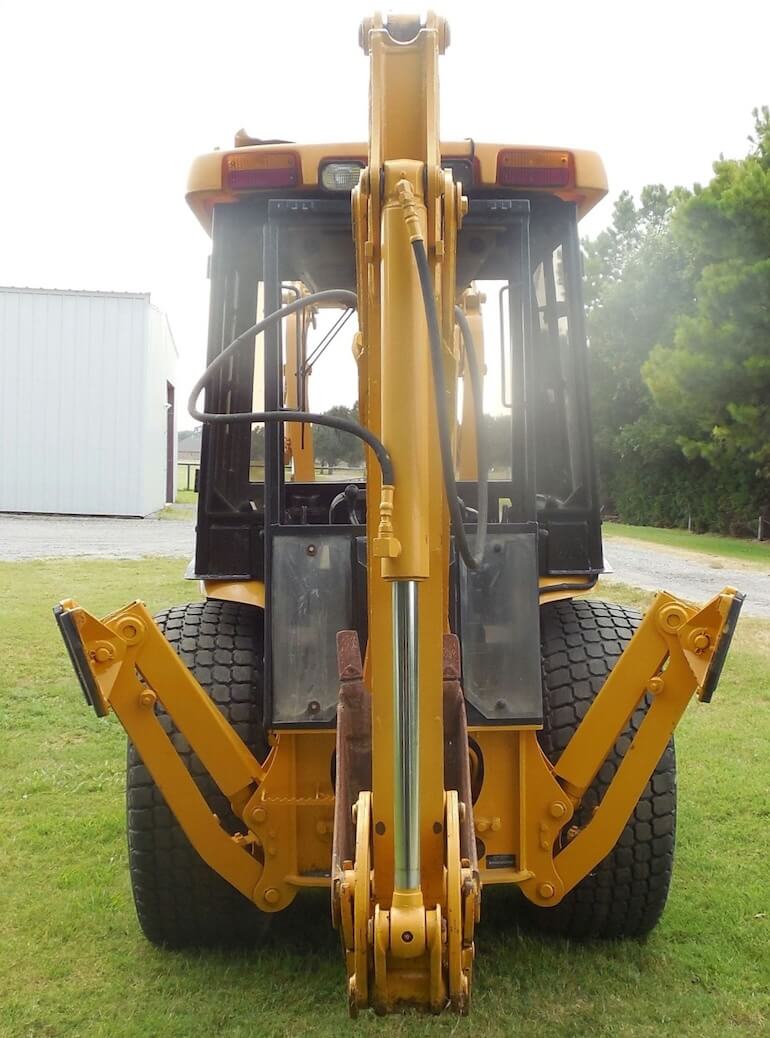

John Deere 110 Backhoe Specs
| Maximum Digging Depth | 10.1 ft (3073 mm) |
| Digging Depth, 2 ft Flat Bottom | 9.9 ft (3021 mm) |
| Truck Loading Height | 8.4 ft (2567 mm) |
| Reach from Swing Pivot | 13.2 ft (4016 mm) |
| Stabilizer Spread, Operating | 8.2 ft (2489 mm) |
| Stabilizer Arm Leveling Angle | 13° |
| Boom Swing Arc | 180° |
| Bucket Rotation | 190° |
| Angle of Departure | 21° |
| Digging Force, Bucket Cylinder | 5,723 lb (25,457 N) |
| Digging Force, Crowd Cylinder | 3,764 lb (16,743 N) |
John Deere 110 Loader Specs (ASAE S301.3)
| Lift Height to Pivot Pin | 9.6 ft (2917 mm) |
| Reach at Maximum Lift Height | 2.1 ft (635 mm) |
| Maximum Dump and Rollback Angle | 45° |
| Lift Capacity to Max Height, Pivot Pin | 2,727 lb (1237 kg) |
| Lift Capacity to Max Height | 2,042 lb (926 kg) |
| Breakout Force at Pivot Pins | 3,965 lb/ft (17,635 N) |
| Loader Raise Time | 3.44 sec |
| Loader Lowering Time | 2.31 sec |
John Deere 110 Dimensions
| Overall Height, Backhoe Folded | 8.8 ft (2725 mm) |
| Overall Length, Backhoe Folded | 21.7 ft (6599 mm) |
| Wheelbase | 6 ft (2 m) |
| Turning Radius | 12 ft (4 m) |
| ROPS | SAE J1040 to 9,000 lb |
| FOPS | ISO 3449 level 1 |
John Deere 110 Engine Specs
| Engine Model | Yanmar TNV88 |
| Fuel | No.1 Diesel, No.2 Diesel, B5 Biodiesel |
| Total Displacement | 121.7 cu in (2.0 L) |
| Number of Cylinders | 4 |
| Gross Power | 43.0 hp (32.1 kW)** |
| Net Power | 41.0 hp (30.6 kW) |
| PTO Power | 33.0 hp (24.6 kW) |
John Deere 110 Transmission & Power Train
| Type | Hydrostatic w/load-sensing system |
| Range Speeds | 3 |
| Max Traveling Speed | 16.1 mph (26.1 kph) |
| Front Axle | Mechanical, bevel gear |
| Front Differential | Cast, four pinion gears |
| Steering | Power, hydrostatic, 58° turn |
| Final Drives | Planetary, inboard |
| Brakes | Wet disc, mechanical |
| Rear Power Take Off | 540, fully independent |
| Front Tires (R4 or R3 Tread Pattern) | 10×16.5 8PR |
| Rear Tires (R4 or R3 Tread Pattern) | 17.5L×24 8PR |
John Deere 110 Hydraulic System
| Pump Type | 3, Open center systems |
| Pump Flow Capacity | 24 gpm (89 lpm) |
| System Operating Pressure | 3,000 psi (20,684 kPa) |
| Oil Cooler | Steel, thick core, 190 sq. in. |
John Deere 110 Capacities & Operating Specs
| Fuel Tank Capacity | 15 gal (58 l) |
| Cooling System Fluid Capacity | 2.4 gal (9 l) |
| Oil System Fluid Capacity | 1 gal (5 l) |
| Hydraulic System Fluid Capacity | 15 gal (57 l) |
| Front Axle Fluid Capacity | 1 gal (5 l) |
| Operating Voltage | 12 volts |
| Alternator Supplied Amperage | 55 amps |
| John Deere 110 Weight w/Loader + Box Blade | 7,280 lbs (3,302 kg) |
| John Deere 110 Weight w/Loader + Backhoe | 7,600 lbs (3,667 kg) |
Key features include a powerful engine that provides ample horsepower for demanding tasks, a reliable hydraulic system that ensures smooth operation, and a durable build that withstands the rigors of heavy-duty use. The 110 Backhoe Loader’s compact size allows for maneuverability in tight spaces, making it ideal for smaller job sites or residential areas. Whether you are digging trenches, loading materials, or performing general earthmoving tasks, the John Deere 110 Backhoe Loader is engineered to handle the job with precision and ease.
Additionally, its compatibility with a variety of attachments enhances its versatility, allowing it to be customized for specific applications. With its blend of performance, reliability, and user-friendly features, the John Deere 110 Backhoe Loader stands out as a valuable asset for professionals in construction, landscaping, and agriculture.
