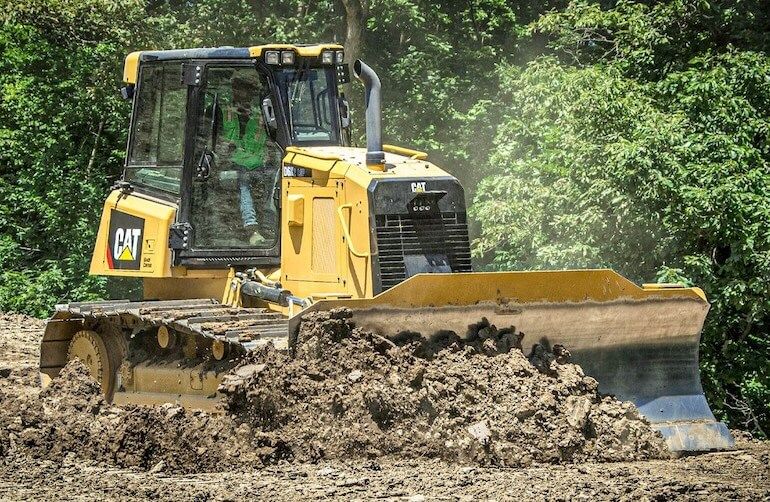

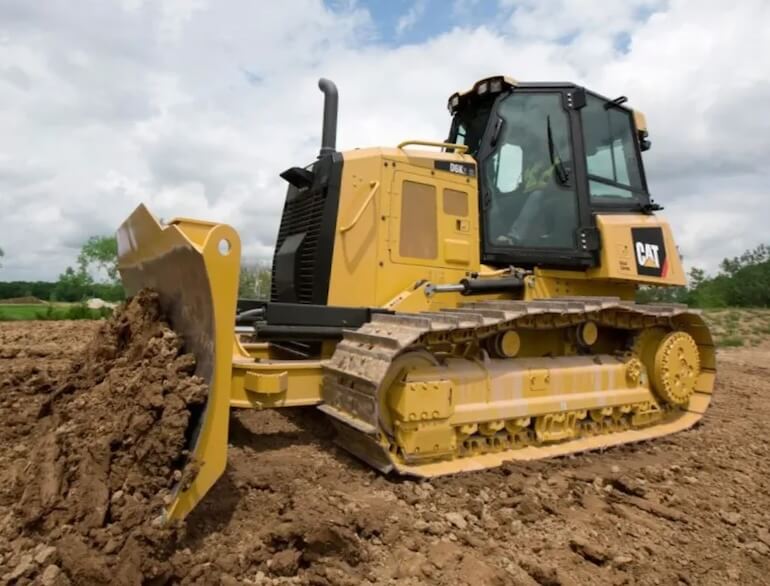

The Caterpillar D6K2 XL Dozer, produced between 2016 and 2017, is a versatile and powerful machine designed for a wide range of construction and earthmoving tasks. Renowned for its exceptional performance, durability, and operator comfort, the CAT D6K2 XL is an ideal choice for grading, clearing, and site preparation.
The advanced hydraulic system ensures precise blade control and smooth operation, allowing for accurate grading and efficient material handling. Integrated Cat Grade Control systems, including Cat AccuGrade™, provide advanced grading solutions, increasing accuracy and reducing rework, making the D6K2 XL a preferred choice for fine grading applications.
Caterpillar D6K2 XL Dozer Engine
Equipped with a Cat C4.4 ACERT engine, the D6K2 XL delivers robust power and efficiency, meeting stringent emissions standards while providing optimal performance in demanding conditions.
| Engine Model | Cat C4.4 ACERT with twin turbo |
| Net Power (ISO 9249) | 130 hp (97 kW) @ 2200 rpm |
| Displacement | 268.5 cu in (4.4 L) |
| Bore / Stroke | 4.13 x 4.99 in |
| Emissions | U.S. EPA Tier 4 Final / EU Stage IV / Japan 2014 (Tier 4 Final) / Korea Tier 4 |
| Diesel Exhaust Fluid (DEF) | DEF used in Cat Selective Catalytic Reduction (SCR) systems must meet the requirements outlined in the ISO 22241 |
| Bore / Stroke | 4.13 x 4.99 in |
| Fuel Tank Capacity | 69 gal (260 L) |
CAT D6K2 XL VPAT Blade Specs
| Blade Capacity | 4.26 yd3 ( 3.26 m3) |
| Blade Width Over End Bits | 125.8 in (319,6 cm) |
| Blade Type | VPAT, VPAT Foldable (have the same capacity and width as the XL/LGP VPAT blades) |
Caterpillar D6K2 XL Transmission Specs
| Transmission Type | HS Hydrostatic |
| Max Speed – Forward | 6.2 mph (10 km/h) |
| Max Speed – Reverse | 6.2 mph (10 km/h) |
| Number of Forward Gears | 1 |
| Number of Reverse Gears | 1 |
Caterpillar D6K2 XL Weight
| Operating Weight | 29,258 lb (13,271 kg) |
| Shipping Weight * | 28,651 lb (12, 996 kg) |
| Ground Pressure (ISO 16754) | 5.77 psi (39.80 kPa) |
* Includes EROPS, A/C, lights, VPAT Dozer, transmission, drawbar, engine enclosure, 3-valve hydraulics, 10% fuel, Cat Comfort Series air suspension seat.
Caterpillar D6K2 XL Dozer Undercarriage
| Ground Contact Area (ISO 16754) | 5070 in2 (3.27 m2) |
| Ground Pressure (ISO 16754) | 5.77 psi (39.80 kPa) |
| Grouser Height – ES Shoe | 2.2 in (57 mm) |
| Grouser Height – MS Shoe | 1.9 in (48 mm) |
| Shoes/Side | 40 |
| Track Gauge | 79 in (1770 mm) |
| Track Rollers/Side | 8 |
| Track on Ground | 104 in (2645 mm) |

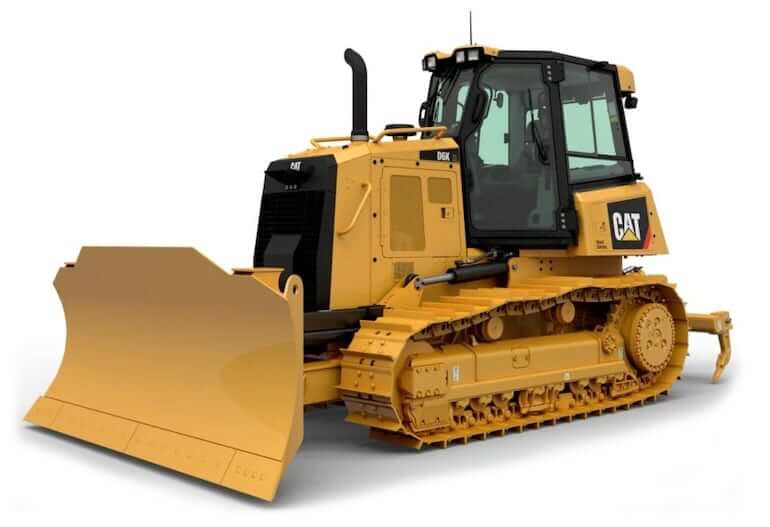

CAT D6K2 XL Dozer Dimensions
| Length of Track on Ground | 104 in (2645 mm) |
| Length of Basic Tractor (with C-frame/drawbar) | 182 in (4618 mm) |
| Width (Standard Shoes with Foldable Blade) in Transport Position | 93 in (2364 mm) |
| Width (Standard Shoes without Blade) | 92 in (2330 mm) |
| Height from Tip of Grouser (ROPS cab) | 117 in (2965 mm) |
| Ground Clearance from Ground Face of Shoe (per SAE J1234) | 14 in (350 mm) |
CAT D6K2 XL Service Refill Capacities
| Fuel Tank Capacity | 69 gal (260 L) |
| Cooling System | 7.9 gal (30 L) |
| Final Drive (Each) | 4.9 gal (18.5 L) |
| Hydraulic Tank | 16.9 gal (64 L) |
| Engine Crankcase | 2.9 gal (11 L) |
| DEF Tank | 5 gal (19 L) |
Built with heavy-duty components and a robust undercarriage, the Caterpillar D6K2 XL is designed for long-lasting durability. Simplified maintenance and easy access to service points ensure minimal downtime and lower operating costs. The spacious and ergonomically designed cab offers excellent visibility, intuitive controls, and a comfortable working environment, enhancing operator productivity and reducing fatigue.
With a variety of blade configurations and optional attachments, the D6K2 XL can be customized to meet specific job site requirements, enhancing its versatility and utility.
The Caterpillar D6K2 XL Dozer stands out as a reliable and efficient machine, capable of tackling a wide range of tasks with precision and power, making it a valuable asset for contractors and construction professionals.
