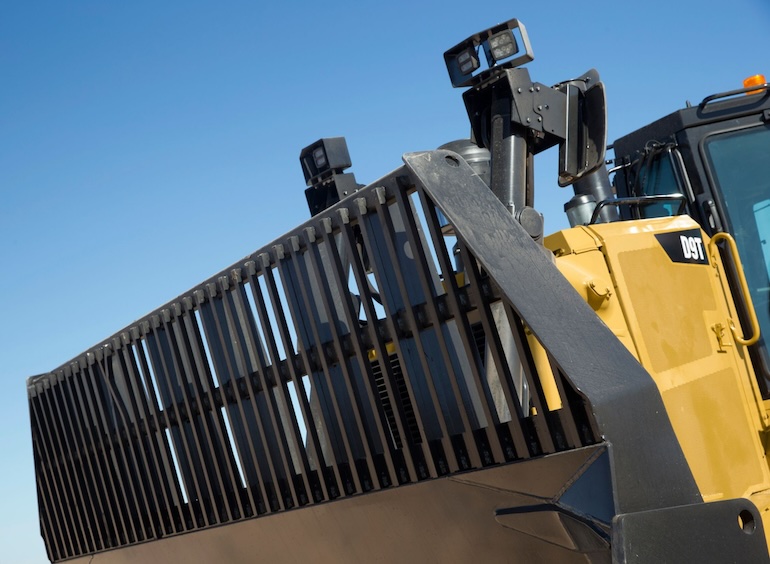

The Caterpillar D9T WH IV Waste Handler is designed to enhance landfill performance with a variety of optional waste handling attachments tailored for optimal efficiency and durability. These blades increase the dozing capacity in trash and help prevent material from spilling over into the radiator, thereby maintaining optimal machine performance.

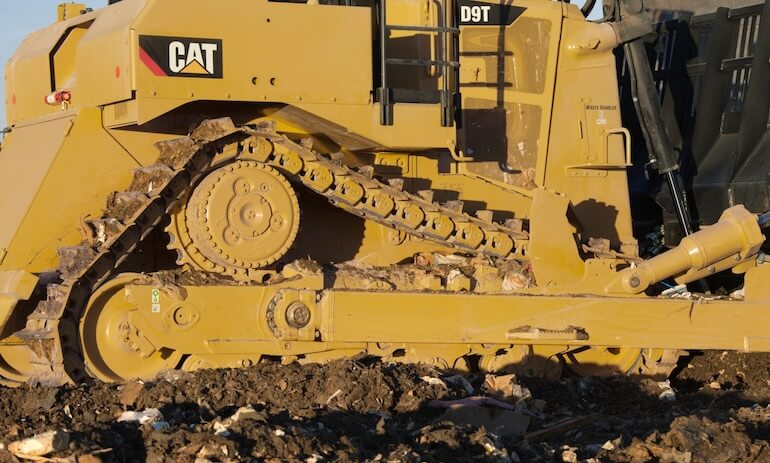

Angled to prevent debris from riding up the track during reversal, these bars protect the fenders and fuel and hydraulic tanks from damage. This comprehensive feature includes a striker bar, storage box, drawbar, slab counterweight, fast fuel system, and transmission guard, all designed to keep material from packing between the track and fender during forward operation. These shoes reduce refuse packing within the track, allowing the sprocket to clear dirt and debris effectively, extending the service life of the track pins.
Caterpillar D9T WH IV Engine Specs
| Engine Model | Cat® C18 ACERT |
| Flywheel Power | 436 hp (325 kw) |
| Rated Engine RPM | 1833 r/min |
| Number of Cylinders | 6 |
| Displacement | 1106 in3 (18,124 cm3) |
| Global Emissions | U.S. EPA Tier 4 Final/EU Stage IV; Tier 2/Stage II Equivalent; Tier 3/Stage IIIA Equivalent |
| Net SAE J1349/ISO 9249 – Tier 4 Final/Stage IV (SN Prefix: REX) | 436 hp (325 kw) |
| Net SAE J1349/ISO 9249 – Tier 2/Stage II Equivalent (SN Prefix: TWG) | 410 hp (302 kw) |
| Net SAE J1349/ISO 9249 – Tier 3/Stage IIIA Equivalent (SN Prefix: TWG) | 410 hp (302 kw) |
| Tank Capacity | 23.5 gal (US) (89 L) |
Caterpillar D9T WH IV Transmission Specs
| 1 Forward – Drawbar Pull (1000) | 161 lbf (716 N) |
| 2 Forward – Drawbar Pull (1000) | 90 lbf (400 N) |
| 1 Forward | 2.4 mile/h (3.9 km/h) |
| 3 Forward – Drawbar Pull (1000) | 50 lbf (222 N) |
| 2 Reverse | 5.2 mile/h (8.4 km/h) |
| 2 Forward | 4.2 mile/h (6.8 km/h) |
| 3 Reverse | 8.9 mile/h (14.3 km/h) |
| 3 Forward | 7.3 mile/h (11.7 km/h) |
| 1 Reverse | 2.9 mile/h (4.7 km/h) |
| Operating Weight | 110,471 lbs (50,109 kg) |
Caterpillar D9T WH IV Dimensions
| Ground Clearance | 1.90 ft (0.58 m) |
| Overall Length – SU Landfill Blade | 22.50 ft (6.86 m) |
| Overall Length – Without Blade and Without Drawbar | 16.10 ft (4.91 m) |
| Height – Stripped Top | 12.10 ft (3.69 m) |
| Height – To Top of ROPS Canopy | 13.10 ft (3.99 m) |
| Height – To Top of ROPS Cab | 12.50 ft (3.81 m) |
| Width – Over Trunnion | 10.80 ft (3.29 m) |
| Width – Without Trunnion – Standard Shoe | 9.40 ft (2.87 m) |
| Track Length on Ground | 11.40 ft (3.47 m) |
| Track Rollers (Each Side) | 8 |
| Standard Track – Shoe Width | 2.00 ft (0.61 m) |
| Ground Contact Area (With Standard Shoes) | 6569.00 in² (4.24 m²) |
| Track Gauge | 7.40 ft (2.26 m) |
Caterpillar D9T WH IV Hydraulic Controls
| Pump Type | Piston-type pump geared from flywheel |
| Pump Output – Steering | 102 gal/min (386 L/min) |
| Pump Output – Implement | 60 gal/min (227 L/min) |
| Ripper – Pitch – Relief Valve Setting | 3800 psi (262 bar) |
| Steering System – Pressure | 5875 psi (405 bar) |
| Tilt Cylinder Flow – Head End Flow | 50 gal/min (189 L/min) |
| Tilt Cylinder Flow – Rod End Flow | 37 gal/min (140 L/min) |
| Tilt Cylinder Relief Valve Setting | 2800 psi (193 bar) |
| Lift Cylinder Relief Valve Setting | 3800 psi (262 bar) |
| Ripper – Lift – Relief Valve Setting | 3800 psi (262 bar) |
With an additional centrifugal precleaner, this feature separates excess dust particles before they reach the cab air filter, extending the filter’s life. Protects the implement hydraulic oil tank, DEF tank (for serial prefix REX), and fuel tank, crucial in high debris landfill applications. Protects hydraulic lines from contact damage while maintaining hose flexibility.
Available in halogen, HID, or LED, these lights are mounted away from the debris environment to ensure excellent illumination and visibility under low light conditions. These features make the D9T WH IV Waste Handler an indispensable asset for landfill operations, offering enhanced performance, protection, and longevity.
