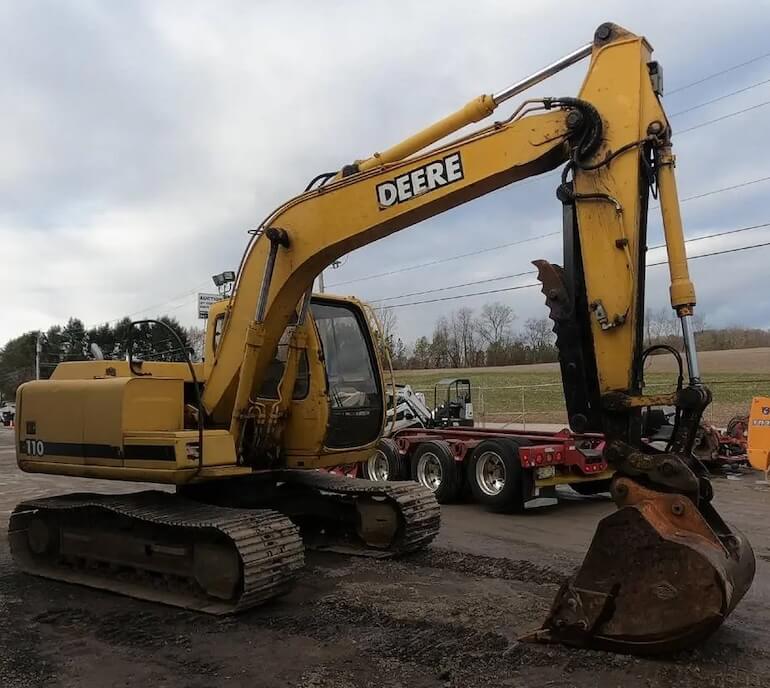

The John Deere 110 Crawler Excavator, introduced in 1998, was a versatile and compact machine designed for various construction and excavation tasks. This 8.8-ton excavator combined power, efficiency, and maneuverability in a relatively small package, making it suitable for both confined job sites and larger projects.
Powered by a John Deere 4045T engine, the 110 delivered 60 kW (80 hp) of power, providing ample strength for digging, lifting, and material handling operations. The excavator featured a maximum horizontal reach of 7.46 meters and a dredging depth of 4.96 meters, allowing for efficient excavation in various conditions.
John Deere 110 Excavator Range
| Arm Length 7 ft. 4 in. (2.26 m) | Arm Length 9 ft. 3 in. (2.80 m) | |
|---|---|---|
| Arm force with bucket (0.79 cu yd 42 in) | 12,348 lb. (5600 kg) | 10,805 lb. (4900 kg) |
| Bucket digging force with bucket ( 0.79 cu yd 42-in) | 19,640 lb. (8909 kg) | 19,640 lb. (8909 kg) |
| Lifting capacity over front @ 20-ft. reach | 4,353 lb. (1974 kg) | 4,303 lb. (1952 kg) |
| Maximum reach | 24 ft. 10 in. (7.58 m) | 26 ft. 5 in. (8.06 m) |
| Maximum reach @ ground level | 24 ft. 6 in. (7.46 m) | 25 ft. 10 in. (7.88 m) |
| Maximum digging depth | 16 ft. 3 in. (4.96 m) | 18 ft. 1 in. (5.51 m) |
| Maximum digging depth @ 8-ft. flat bottom | 15 ft. 9 in. (4.80 m) | 17 ft. 8 in. (5.38 m) |
| Maximum cutting height | 26 ft. 2 in. (7.99 m) | 27 ft. 0 in. (8.23 m) |
| Maximum dumping height | 19 ft. 1 in. (5.82 m) | 20 ft. 0 in. (6.09 m) |
| Minimum swing radius | 7 ft. 8 in. (2.33 m) | 8 ft. 6 in. (2.59 m) |
| Maximum vertical wall | 14 ft. 9 in. (4.50 m) | 16 ft. 5 in. (5.00 m) |
| Tail swing radius | 7 ft. 0 in. (2.13 m) | 7 ft. 0 in. (2.13 m) |

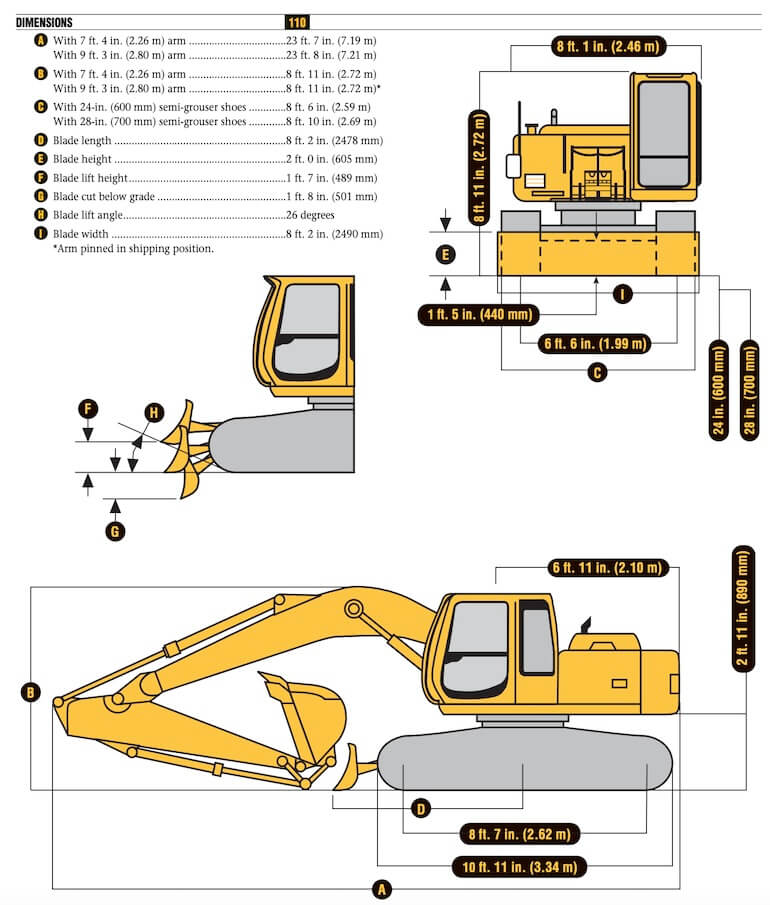

John Deere 110 Excavator Dimensions
| With 7 ft. 4 in. (2.26 m) arm | With 9 ft. 3 in. (2.80 m) arm | |
|---|---|---|
| Reach | 23 ft. 7 in. (7.19 m) | 23 ft. 8 in. (7.21 m) |
| Reach @ ground level | 8 ft. 11 in. (2.72 m) | 8 ft. 11 in. (2.72 m) |
| With 24-in. (600 mm) semi-grouser shoes | 8 ft. 6 in. (2.59 m) | 8 ft. 10 in. (2.69 m) |
| Blade length | 8 ft. 2 in. (2478 mm) | |
| Blade height | 2 ft. 0 in. (605 mm) | |
| Blade lift height | 1 ft. 7 in. (489 mm) | |
| Blade cut below grade | 1 ft. 8 in. (501 mm) | |
| Blade lift angle | 26 degrees | |
| Blade width | 8 ft. 2 in. (2490 mm) | |
| Ground Clearance | 2 ft (0 m) | |
| Height – Top of Cab | 9 ft (3 m) | |
| Length of Track on Ground | 9 ft (3 m) | |
| Removal Counterweight Clearance | 3 ft (1 m) | |
| Tail Swing Radius | 7 ft (2 m) | |
| Width to Outside of Tracks | 9 ft (3 m) | |
John Deere 110 Crawler Excavator Engine
| Aspiration | Turbocharger |
| Displacement | 276 cu in (4,523 cu cm) |
| Engine Model | 4045 T |
| Max Torque | 244 lbs ft (331 nm) |
| Net Power | 80 hp (60 kw) |
| Power Measured @ | 2200 rpm |
| Torque Measured @ | 1300 rpm |
John Deere 110 Excavator Operating Specs
| Maximum Bucket Capacity | 1 cu yd (1 cu m) |
| Alternator Supplied Amperage | 45 amps |
| Cooling System Fluid Capacity | 6 gal (22 l) |
| Engine Oil Capacity | 4 gal (13 l) |
| Fuel Capacity | 66 gal (250 l) |
| Hydraulic Pump Flow Capacity | 26 gpm (98 lpm) |
| Hydraulic System Fluid Capacity | 35 gal (132 l) |
| Hydraulic System Relief Valve Pressure | 4980 psi |
| Operating Voltage | 24 volts |
| Operating Weight | 27,100 lbs (12,292 kg) |
| Swing Drive Fluid Capacity | 1 gal (3 l) |
| Swing Speed | 13.5 rpm |
John Deere 110 Excavator Undercarriage
| Drawbar Pull | 19,400 lbs (8,800 kg) |
| Ground Pressure | 5 psi |
| Max Travel Speed | 3 mph (5 kph) |
| Number of Carrier Rollers per Side | 1 |
| Number of Shoes per Side | 41 |
| Number of Track Rollers per Side | 6 |
| Shoe Size | 24 in (60 cm) |
| Track Gauge | 7 ft (2 m) |
The John Deere 110 was built with operator comfort and productivity in mind. It included a ROPS cabin, power steering, and options for air conditioning and quick hitches.
The machine’s compact dimensions, with a transport length of 7.2 meters, width of 2.59 meters, and height of 2.72 meters, facilitated easy transportation between job sites.
This crawler excavator offered impressive versatility with its range of attachments and buckets. It could be equipped with bucket capacities ranging from 0.4 to 1.1 cubic yards, allowing operators to tailor the machine to specific job requirements. The 110’s combination of power, compact size, and adaptability made it a popular choice for contractors and construction professionals seeking a reliable and efficient excavator for diverse applications.
