Bobcat backhoe attachments 607, 709, 8709, 811, 905B for Bobcat 453, 553, 750s, 763, 773, 863, 864, 873, 963 compact track loaders and skid steers offer enhanced versatility and performance. Designed for efficient digging, trenching, and material handling, these attachments utilize the Bob-Tach system for quick and secure mounting.
The exclusive X-Change™ system ensures fast and easy bucket changes, making Bobcat backhoe attachments a reliable and productive choice for various applications.

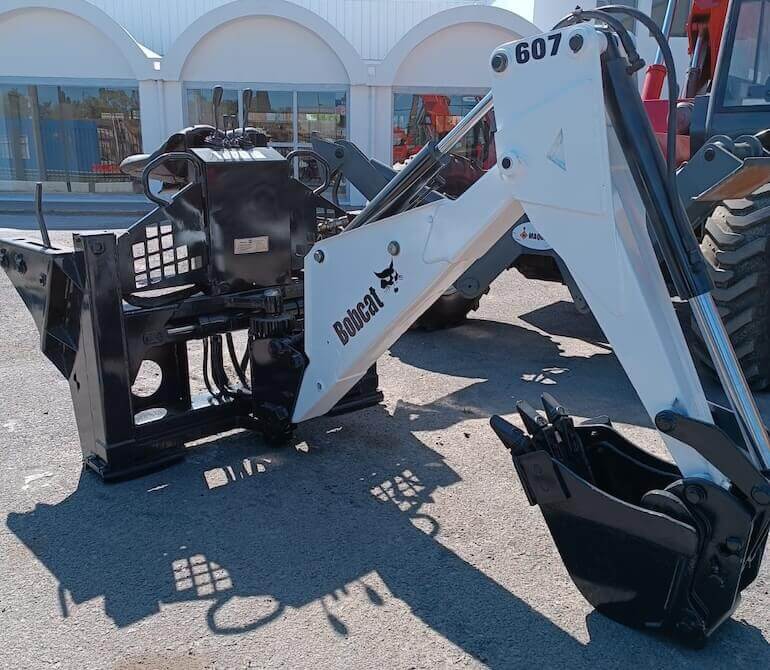

Bobcat 607 Backhoe Attachment
Designed for use with Bobcat loaders like the 751, 753, 763, 773, and 863, the 607 model offers robust digging capabilities:
- Weight: 1298 lbs (589 kg)
- Stabilizer Type: Vertical
- Maximum Digging Depth: 95.1 inches (2416 mm)
- Bucket Mounting System: X-Change™ system
- Bucket Widths Available: 12″ (305 mm), 16″ (406 mm), 20″ (508 mm), 24″ (610 mm)
Bobcat 709 Backhoe Attachment
The Bobcat 709 backhoe attachment is a highly adaptable and efficient tool designed to enhance the capabilities of Bobcat 750S, 763, 773, and 863 compact loaders. Ideal for a wide range of applications, this attachment excels in tasks such as digging, trenching, and material handling.. It combines efficiency with versatility:
- Weight: 1487 lbs (675 kg)
- Stabilizer Type: Vertical
- Maximum Digging Depth: 116.6 inches (2962 mm)
- Bucket Mounting System: X-Change™ system
- Bucket Widths Available: 12″ (305 mm), 16″ (406 mm), 20″ (508 mm), 24″ (610 mm), 30″ (762 mm)
Equipped with an easy-to-use mounting system, allowing for quick attachment and detachment, thus minimizing downtime and maximizing productivity. Built with high-quality materials and a sturdy design, the 709 backhoe attachment is designed for long-lasting use, even in the most challenging job site conditions.
Bobcat 709 F/D Backhoe Attachment
An enhanced version of the 709, the 709 F/D is compatible with loaders like the 753, 763, 773, and 863:
- Weight: 1637 lbs (743 kg)
- Stabilizer Type: Fold-Down
- Maximum Digging Depth: 116.6 inches (2962 mm)
- Bucket Mounting System: X-Change™ system
- Bucket Widths Available: 12″ (305 mm), 16″ (406 mm), 20″ (508 mm), 24″ (610 mm), 30″ (762 mm)
The Bobcat 709 F/D backhoe attachment transforms Bobcat 750s, 763, 773, and 863 compact loaders into versatile and powerful machines, capable of tackling a wide variety of projects with ease and efficiency.

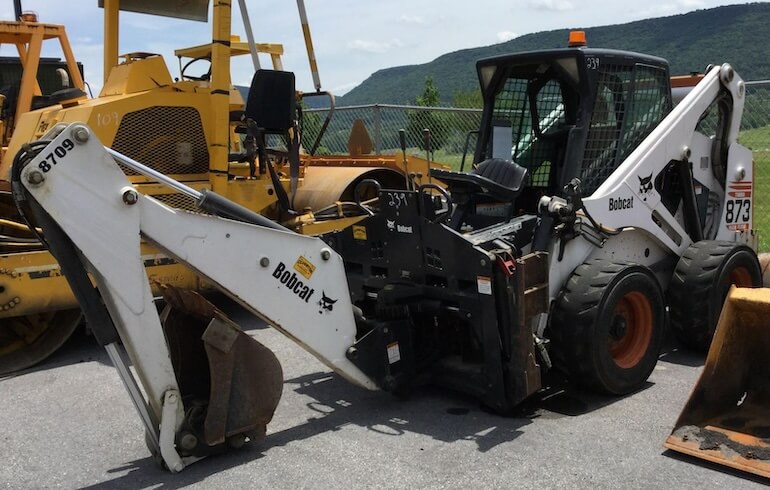

Bobcat 8709 Backhoe Attachment
Tailored for the 873 loader, the 8709 offers greater digging depth and force:
- Weight: 1640 lbs (744 kg)
- Stabilizer Type: Fold-Down
- Maximum Digging Depth: 118.1 inches (2999 mm)
- Bucket Mounting System: X-Change™ system
- Bucket Widths Available: 12″ (305 mm), 16″ (406 mm), 20″ (508 mm), 24″ (610 mm), 30″ (762 mm), 39″ (991 mm)
Bobcat 811 Backhoe Attachment
The 811 model is designed for heavy-duty loaders like the 863, 864, and 963, providing maximum performance:
- Weight: 2012 lbs (913 kg)
- Stabilizer Type: Fold-Down
- Maximum Digging Depth: 135.7 inches (3448 mm)
- Bucket Mounting System: X-Change™ system
- Bucket Widths Available: 12″ (305 mm), 16″ (406 mm), 20″ (508 mm), 24″ (610 mm), 30″ (762 mm), 36″ (914 mm), 39″ (991 mm)
Bobcat 905B Backhoe Attachment
The Bobcat 905B is a compact yet powerful backhoe attachment designed for smaller loaders like the Bobcat 453 and 553. Ideal for working in tight spaces, it offers:
- Weight: 550 lbs (250 kg)
- Stabilizer Type: Fixed
- Maximum Digging Depth: 69 inches (1753 mm)
- Bucket Mounting System: Pin-on
- Bucket Widths Available: 8″ (203 mm), 12″ (305 mm), 16″ (406 mm)
Each of these backhoe attachments is engineered to provide Bobcat loaders with enhanced digging capabilities, making them more versatile for various construction, landscaping, and utility applications. The exclusive Bob-Tach system ensures quick and secure attachment changes, maximizing productivity on the job site.
Bobcat 905B, 607, 709, 8709, 811 Specifications
Here is the table summarizing the specifications for the Bobcat backhoe attachments:
| Bobcat | 905B | 607 | 709 | 8709 | 811 |
|---|---|---|---|---|---|
| Compatible Models | 453, 553 | 750S, 763, 773, 863 | 750S, 763, 773, 863 | 873 | 863, 864, 963 |
| Weight – Without Bucket | 550 lbs (250 kg) | 1298 lbs (589 kg) | 1487 lbs (675 kg) | 1640 lbs (744 kg) | 2012 lbs (913 kg) |
| Stabilizer Type | Fixed | Vertical | Vertical | Fold-Down | Fold-Down |
| Stabilizer Spread Transport | 52.0 in (1321 mm) | 54.0 in (1373 mm) | 54.1 in (1374 mm) | 66.7 in (1695 mm) | 81.9 in (2082 mm) |
| Stabilizer Spread Working | 52.0 in (1321 mm) | 54.0 in (1373 mm) | 54.1 in (1374 mm) | 113.1 in (2873 mm) | 130.3 in (3309 mm) |
| Ground Clearance (A) | 4.8 in (123 mm) | 8.4 in (214 mm) | 6.7 in (170 mm) | 6.7 in (170 mm) | 6.9 in (175 mm) |
| Digging Depth – Maximum (B) | 69.0 in (1753 mm) | 95.1 in (2416 mm) | 116.6 in (2962 mm) | 118.1 in (2999 mm) | 135.7 in (3448 mm) |
| Digging Depth – 2 ft. Flat bottom (C) | 66.0 in (1676 mm) | 93.9 in (2386 mm) | 115.6 in (2937 mm) | 117.1 in (2974 mm) | 134.8 in (3425 mm) |
| Loading Height (D) | 43.0 in (1092 mm) | 72.3 in (1837 mm) | 83.3 in (2115 mm) | 81.9 in (2079 mm) | 100.0 in (2539 mm) |
| Reach from Swing Pivot (E) | 84.0 in (2134 mm) | 123.2 in (3128 mm) | 145.3 in (3691 mm) | 145.5 in (3695 mm) | 166.0 in (4216 mm) |
| Swing Arc | 180° | 180° | 180° | 180° | 180° |
| Bucket Rotation | 118° | 185° | 200° | 200° | 200° |
| General Backhoe Weight | Pin-on | X-Change system | X-Change system | X-Change system | X-Change system |
| Bucket Mounting System | 8″ (203 mm), 12″ (305 mm), 16″ (406 mm) | 12″ (305 mm), 16″ (406 mm), 20″ (508 mm), 24″ (610 mm) | 12″ (305 mm), 16″ (406 mm), 20″ (508 mm), 24″ (610 mm), 30″ (762 mm) | 12″ (305 mm), 16″ (406 mm), 20″ (508 mm), 24″ (610 mm), 30″ (762 mm), 39″ (991 mm) Grading Bucket | 12″ (305 mm), 16″ (406 mm), 20″ (508 mm), 24″ (610 mm), 30″ (762 mm), 36″ (914 mm), 39″ (991 mm) Grading Bucket |
In addition to the Bob-Tach system, Bobcat backhoe attachments also use hook mounts to secure the backhoe to the loader frame. A lever on each backhoe arm locks the backhoe onto the loader hook mounts, ensuring a secure attachment. The combination of the Bob-Tach and backhoe mounting systems provides a simple and secure method for attaching the Bobcat backhoe (Refer to the backhoe operation & maintenance manual for complete instructions on properly securing a backhoe to your loader).
Where applicable, dimensions are in accordance with Society of Automotive Engineers (SAE) standards. Specifications and design are subject to change without notice. Pictures of Bobcat skid-steer loaders may show other than standard equipment. All dimensions are given for loaders equipped with standard tires. All dimensions are shown in inches, with respective metric dimensions in parentheses. Bobcat / Ingersoll-Rand complies with the requirements of ISO 9001 as registered with BSI. These attachments may also be approved for certain new Bobcat loader models. See your Bobcat dealer for details.
