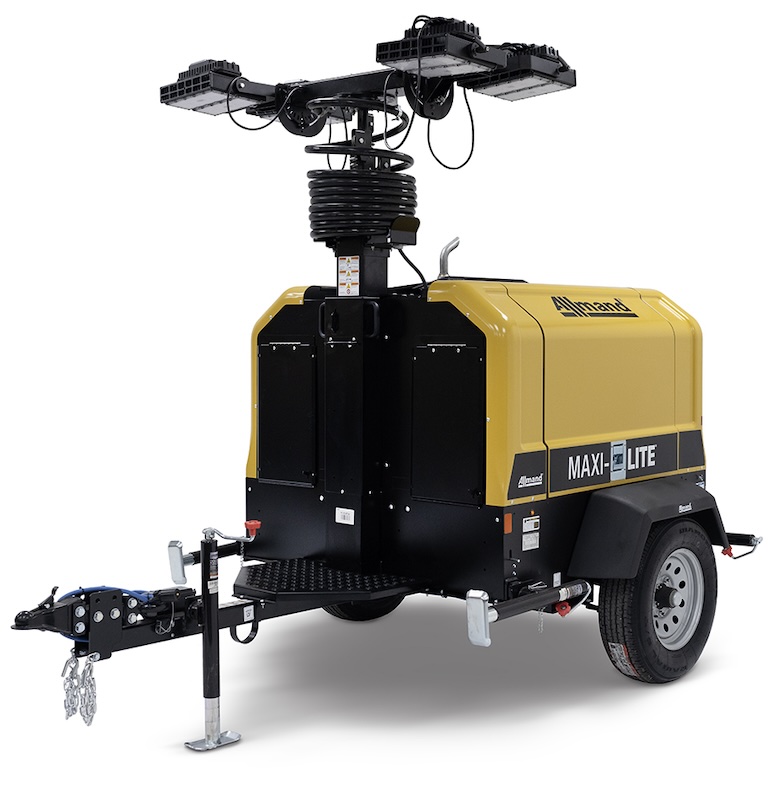

The Allmand MAXI-LITE Light Tower is designed to provide reliable and powerful lighting solutions for a variety of outdoor applications. Equipped with advanced LED and optional Metal Halide lighting technology, the MAXI-LITE ensures optimal illumination for construction sites, events, and emergency situations.
The light tower is available with engine options from Caterpillar, Isuzu, and Kubota, each meeting Tier 4 Final emissions standards.
Allmand MAXI-LITE Dimensions
| Specification | Measurement |
|---|---|
| Transport Height (Mast Lowered) | 105 in (2,672 mm) |
| Operating Height (Mast Raised) | 322 in (8,179 mm) |
| Transport Width | 77 in (1,956 mm) |
| Operating Width (Outriggers Deployed) | 151 in (3,835 mm) |
| Transport Length | 126 in (3,200 mm) |
| Operating Length (Outriggers Deployed) | 168 in (4,265 mm) |
| Operating Tower Wind Speed Rating | 55 MPH (88 km/h) |
| Trailer Weight | 3,430 lbs (1,556 kg) |
| Trailer GVWR | 5,000 lbs (2,267 kg) |
| Number of Units on 48′ Flatbed | 7 |
| Number of Units on 53′ Flatbed | 7 |
Allmand MAXI-LITE Engine Specs
| Specification | CAT / Perkins 1.5T | Isuzu 4LE2T | Kubota D1105 |
|---|---|---|---|
| Output @ Rated Speed (1,800 RPM) – HP | 22.3 | 40.2 | 11.6 |
| Engine Prime Power (kW) | 15 | 20 | 8 |
| Engine Tier | Tier 4 Final | Tier 4 Final | Tier 4 Final |
| Fuel Capacity – gal (L) | 100 (379) | 100 (379) | 100 (379) |
Allmand MAXI-LITE Light Tower Operating Specs
| Specification | CAT / Perkins 1.5T | Isuzu 4LE2T | Kubota D1105 |
|---|---|---|---|
| Light Type – LED | SMD Style LED, 5000° K Color Temperature | SMD Style LED, 5000° K Color Temperature | SMD Style LED, 5000° K Color Temperature |
| LED Wattage (per lamp) | 350 | 350 | 350 |
| LED Lumens (per lamp) | 57,140 | 57,140 | 57,140 |
| LED Lumens (total) | 228,560 – 4 Lights / 342,840 – 6 Lights | 228,560 – 4 Lights / 342,840 – 6 Lights | 228,560 – 4 Lights / 342,840 – 6 Lights |
| Operating Time – using four 350W LED light fixtures | 217.4 hrs | 200 hrs | 277.8 hrs |
| Operating Time – using six 350W LED light fixtures | 185.2 hrs | 181.8 hrs | 222.2 hrs |
| Operating Time – using four 1,250W Metal Halide light fixtures | 128.2 hrs | 137 hrs | 158.7 hrs |
| Light Type – Metal Halide (Optional) | Metal Halide SHO-HD® fixture | Metal Halide SHO-HD® fixture | Metal Halide SHO-HD® fixture |
| Metal Halide Wattage (per lamp) | 1,250 | 1,250 | 1,250 |
| Metal Halide Lumens (per lamp) | 135,500 | 135,500 | 135,500 |
| Metal Halide Lumens (total) | 542,000 – 4 Lights / 813,000 – 6 Lights | 542,000 – 4 Lights / 813,000 – 6 Lights | 542,000 – 4 Lights / 813,000 – 6 Lights |
With robust construction and efficient fuel usage, the Allmand MAXI-LITE Light Tower is built for durability and extended operation times. Its user-friendly design includes a versatile mast height, adjustable outriggers for stability, and essential safety features to ensure ease of transport and operation under diverse conditions. Whether it’s for long-term projects or short-term needs, the Allmand MAXI-LITE Light Tower stands as a dependable choice for high-quality, portable lighting.
