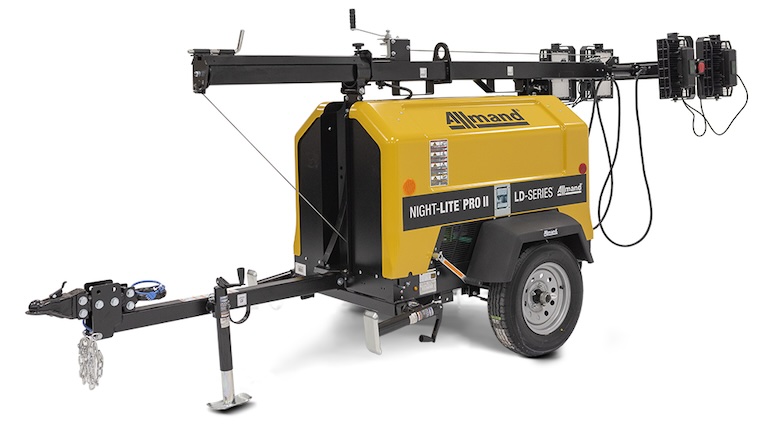

The Allmand NIGHT-LITE Pro II LD-Series Light Tower delivers outstanding illumination with up to 542,000 total lumens, making it ideal for building construction, infrastructure projects, mining, and oil & gas applications. Equipped with a durable 30-gallon polyethylene fuel tank, it minimizes contamination from rust and corrosion, ensuring longer operational life.
This eco-friendly light tower offers an optional full fluid containment system to safeguard sensitive environments from accidental leaks and spills. The Night-Lite Pro II LD-Series combines robust performance with environmental responsibility, meeting the demanding needs of various industrial applications.
NIGHT-LITE Pro II LD-Series Dimensions
| Transport Height (Mast Lowered) – in (mm) | 70 (1,768) |
| Operating Height (Mast Raised) – in (mm) | 350 (8,900) |
| Transport Width – in (mm) | 51 (1,283) |
| Operating Width (Outriggers Deployed) – in (mm) | 101 (2,555) |
| Transport Length – in (mm) | 1,767 (4,483) |
| Operating Tower Wind Speed Rating – MPH (km/h) | 55 (88) |
| Trailer Weight – lbs (kg) | 1,720 (885) |
| Trailer GVWR – lbs (kg) | 2,200 (998) |
| Number of Units on 48 Flatbed | 12 |
| Number of Units on 53 Flatbed | 12 |
NIGHT-LITE Pro II LD-Series Engine Specs
| Engine Model | CAT / Perkins 1.1 | Kubota D1005 | Kubota D1105 |
|---|---|---|---|
| Output @ Rated Speed (1,800 RPM) – HP | 13.8 | 11.6 | 11.6 |
| Engine Prime Power (kW) | 8 | 7 | 8 |
| Emission Standards | Tier 4 Final | Tier 4 Final | Tier 4 Final |
| Fuel Capacity – gal (L) | 30 (114) | 30 (114) | 30 (114) |
NIGHT-LITE Pro II LD-Series Operating Specs
| Specification | CAT / Perkins 1.1 | Kubota D1005 | Kubota D1105 |
|---|---|---|---|
| Light Type – LED | SMD Style LED, 5000° K Color Temperature | SMD Style LED, 5000° K Color Temperature | SMD Style LED, 5000° K Color Temperature |
| LED Wattage (per lamp) | 350 | 350 | 350 |
| LED Lumens (per lamp) | 57,140 | 57,140 | 57,140 |
| LED Lumens (total) | 228,560 – 4 Lights | 228,560 – 4 Lights | 228,560 – 4 Lights |
| Operating Time – using four 350W LED light fixtures | 78.9 hrs | 103.4 hrs | 83.3 hrs |
| Operating Time – using four 1,250W Metal Halide light fixtures | 50.0 hrs | 48.4 hrs | 47.6 hrs |
| Light Type – Metal Halide (Optional) | Metal Halide SHO-HD® Fixture | Metal Halide SHO-HD® Fixture | Metal Halide SHO-HD® Fixture |
| Metal Halide Wattage (per lamp) | 1,250 | 1,250 | 1,250 |
| Metal Halide Lumens (per lamp) | 135,500 | 135,500 | 135,500 |
| Metal Halide Lumens (total) | 542,000 – 4 Lights | 542,000 – 4 Lights | 542,000 – 4 Lights |
