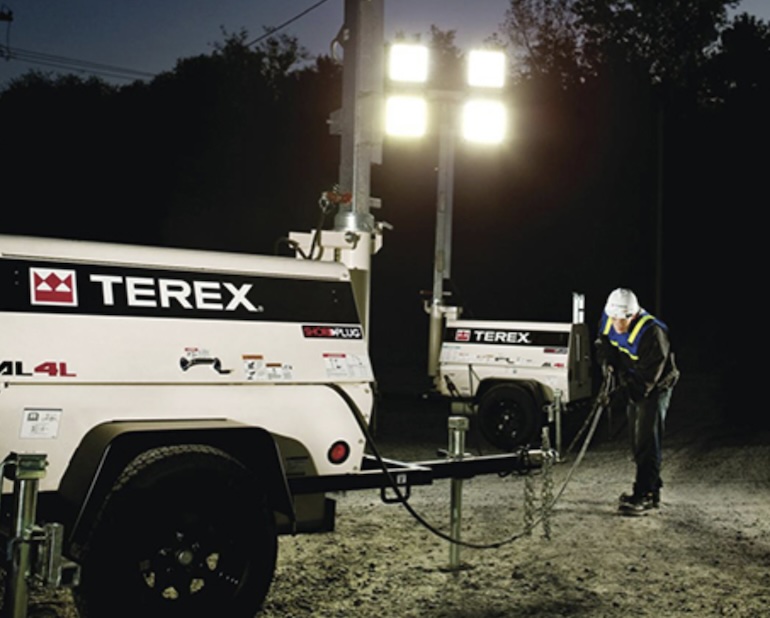

The Terex AL4L Engine / Generator LED Light Tower is a reliable and efficient solution for providing powerful illumination in various applications. Designed for construction sites, events, emergency response, and other outdoor activities, the AL4L Light Tower ensures that your work area is well-lit, enhancing safety and productivity during nighttime operations or in low-light conditions.
This light tower is equipped with robust features, including a powerful engine and a high-capacity generator, ensuring consistent and dependable performance. The AL4L is engineered for ease of use and durability, with a design that prioritizes ease of transport, rapid deployment, and minimal maintenance requirements. Its compact and rugged construction makes it suitable for use in challenging environments, ensuring that it can withstand the rigors of daily use in various conditions.
Terex AL4L Light Tower Dimensions
| Boom | 30 ft (9 m) |
| Height, stowed | 5 ft 8 in (1.73 m) |
| Length, stowed | 14 ft 11 in (4.55 m) |
| Width, stowed | 5 ft 8 in (1.73 m) |
| Tire Size | ST205/75R15 Load C |
| Weight (no fuel) | 1986 lbs (901 kg) |
| Maximum towing speed | 60 mph (97 km/h) |
| Maximum wind speed | 62 mph (100 km/h) |
Terex AL4L Engine / Generator Specs
| Engine options | 6 kW, 60 Hz, generator with 15.3 hp Perkins ® diesel 7 kW, 50 Hz, generator with 13.6 hp Kubota ® D-1105 diesel 8 kW, 60 Hz, generator with 13.6 hp Kubota ® D-1105 diesel |
| Generator options | Brushless 6.0 kW, 60 Hz Marathon 6 kW, 60 Hz |
| Cold weather package including | Engine block heater and low temperature coolant (-40F) |
| Fuel capacity, single tank | 30 gal (114 L) |
| Fuel capacity, single tank | 50 gal (189 L) |
Do not use any battery or charger greater than 12V to jump-start the engine! Engine Oil type – 10W-30 (5W-20 cold conditions)
Terex AL4L Light Tower Operating Specs
| Total Lighting Wattage (4 lights) | 1080 watts |
| Electrical System | 120/240 |
| Tower Rotation | 359 degrees (non-continuous) |
| Lamps | LED metal halide 4 x 1,000 W |
| Axle rating | 3,500 lbs (1,558 kg) |
| Receptacles | One GFI duplex 20 A / 120 V One T/L 30 A / 240 V |
The Terex AL4L Light Tower provides a versatile and flexible lighting solution, with adjustable and extendable light fixtures that can be positioned to direct light where it’s needed most. Whether you need to illuminate a large area or focus on specific tasks, this light tower offers the flexibility and power to meet your needs.
Explore the specifications and features of the Terex AL4L Engine / Generator LED Light Tower in the following sections to understand how it can enhance the visibility and safety of your operations, ensuring that you have reliable lighting whenever and wherever you need it.
