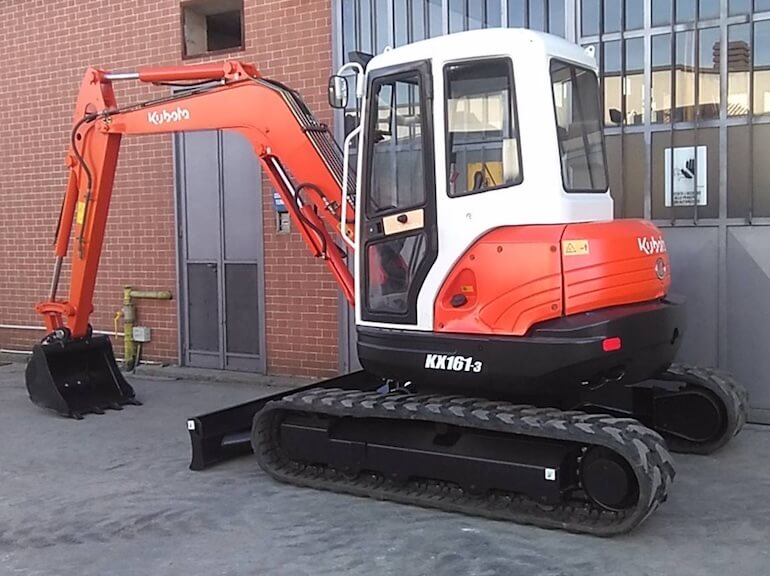

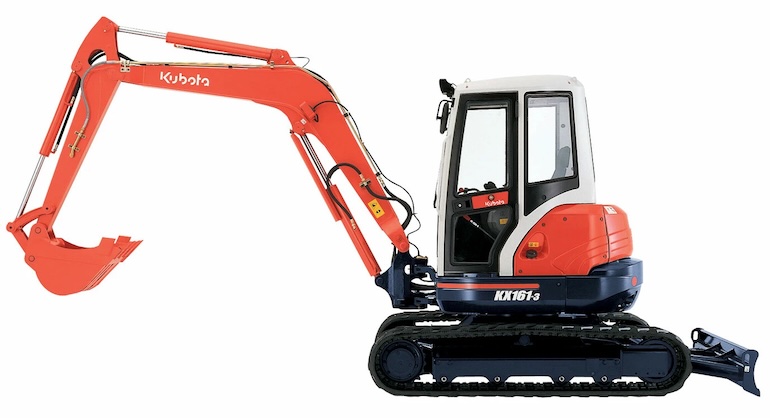

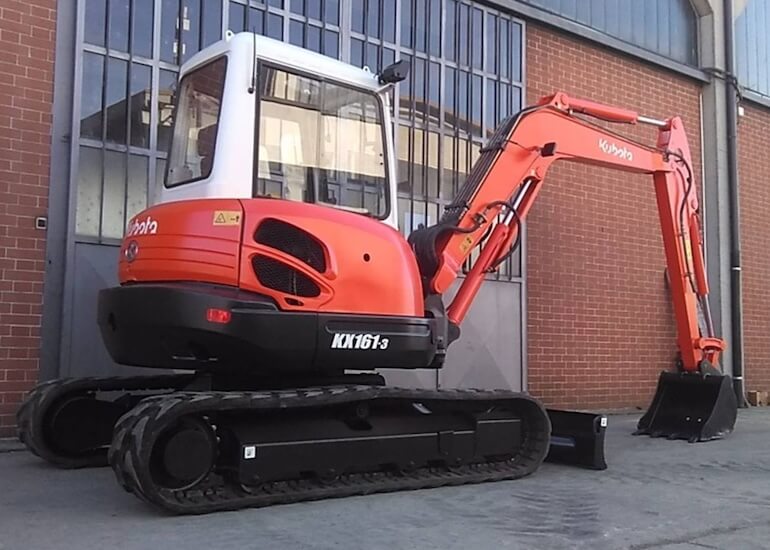

The Kubota KX161-3, produced from 2005 to 2011, stands out as a robust and versatile compact excavator in the construction and landscaping industries. Renowned for its powerful performance, durability, and advanced features, the KX161-3 compact excavator has been a trusted choice for operators seeking efficiency and reliability in various applications.
Designed to handle a wide range of tasks, the KX161-3 boasts a powerful Kubota diesel engine (2,2L V2203-M-EBH-2-N), providing excellent digging force and lifting capabilities. Its compact size allows for easy maneuverability in tight spaces, making it ideal for urban construction projects, residential landscaping, and utility work. The inclusion of a spacious and comfortable cab ensures operator comfort during long hours of operation, while the intuitive controls enhance precision and ease of use.
Kubota KX161-3 Mini Excavator Dimensions
| Overall Length | 18’1″ (5510 mm) |
| Overall Height | 8’4″ (2540 mm) |
| Overall Width | 6’5″ (1960 mm) |
| Min. Ground Clearance | 12.5″ (320 mm) |
| Cabin | – ROPS (Roll-Over Protective Structure, ISO3471) – FOPS (Falling Objects Protective Structure) Level 1 |
| Operating weight | 11244 lbs. (5100 kg) |
Kubota KX161-3 Excavator Engine Specs
| Engine Model | Kubota V2203-M-EBH-2-N (4 cylinders) |
| Engine Type | Water-cooled, diesel engine E-TVCS (Economical, ecological type) |
| Output ISO9249 | 40.0 HP (29.4 kW) / 2250 rpm |
| Displacement | 134.1 cu. in. (2197 cc) |
| Fuel Capacity | 18.5 gal (70 L) |
KX161-3 Compact Excavator Working Range
| Max. digging height | 18′ 12″ (5790 mm) |
| Max. dumping height | 13′ 7″ (4130 mm) |
| Max. digging depth | 12′ 8″ (3870 mm) |
| Max. vertical digging depth | 10′ 1″ (3110 mm) |
| Max. digging radius, at ground level | 20′ 3″ (6160 mm) |
| Max. digging radius | 20′ 7″ (6280 mm) |
| Min. turning radius (w/o swing) | 7′ 12″ (2430 mm) |
| Min. turning radius (with swing) | 6′ 5″ (1945 mm) |
| Min. tail turning radius | 3′ 7″ (1090 mm) |
| Tumbler Distance | 6’6″ (1990 mm) |
| Rubber Shoe Width | 15.7″ (400 mm) |
| Ground Contact Pressure | 4.2 psi (0.294 kgf/cm²) |
| Boom Swing Angle (Left / Right) | 80° / 50° |
| Unit Swing Speed | 9.3 rpm |
| Bucket Width with side teeth | 26.8″ (680 mm) |
| Bucket Width w/o side teeth | 25.6″ (650 mm) |
| Bucket Capacity, STD. SAE / CECE | 0.22 yd3 (0.17 m3) / 0.20 yd3 (0.15 m3) |
| Blade Height | 14.6″ (370 mm) |
| Blade Width | 6’5″ (1960 mm) |
KX161-3 Excavator Drive & Hydraulic
| Pump Flow Rate | 32.1 gpm (121.5 L/min) |
| Pump Hydraulic Pressure | 23.5 MPa (240 kgf/cm2) |
| Auxiliary Hydraulic Flow | 19.8 gpm (75.0 L/min) |
| Auxiliary Hydraulic Pressure | 23.5 MPa (240 kgf/cm2) |
| Hydraulic Oil Reservoir | 11.6 gal (44 L) |
| Max. Breakout Force | Bucket: 8984 lbs. (4075 kgf) Arm: 5501 lbs. (2495 kgf) |
| Travel Speed (Low) | 1.6 mph (2.5 km/h) |
| Travel Speed (High) | 2.7 mph (4.4 km/h) |
Equipped with advanced hydraulic systems, the Kubota KX161-3 offers smooth and responsive operation, ensuring high productivity on the job site. The machine’s versatility is further enhanced by a variety of compatible attachments, allowing it to tackle different tasks with ease, from trenching and digging to grading and material handling.
Kubota’s commitment to quality and innovation is evident in the KX161-3, making it a reliable and efficient compact excavator that meets the demands of modern construction and landscaping professionals. Whether for small-scale projects or larger construction tasks, the Kubota KX161-3 remains a popular and dependable choice for operators worldwide.
