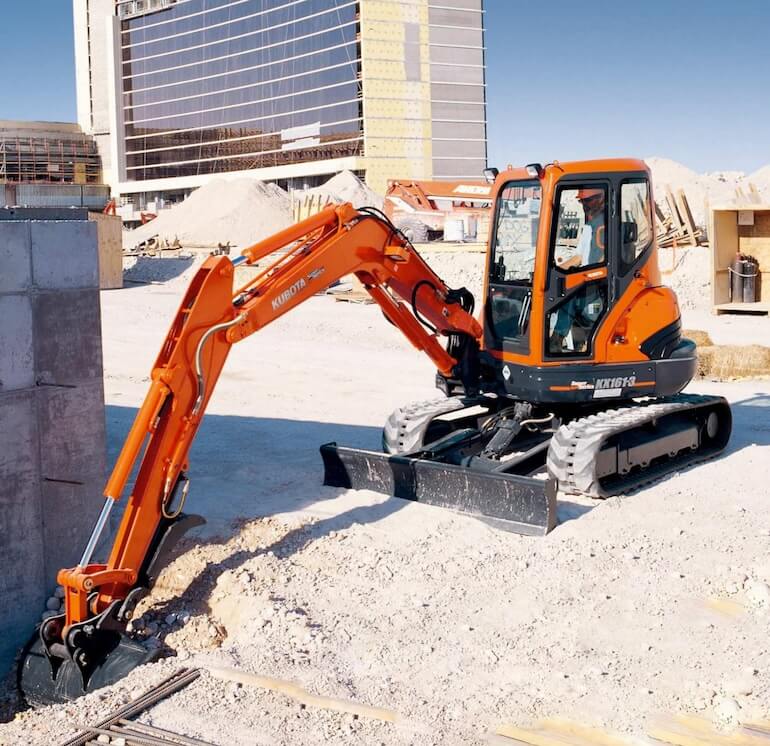

The Kubota KX161-3S Angle Blade Mini Excavator is engineered for those who demand efficiency, power, and versatility in a compact package. This model is renowned for its superior performance in various applications such as construction, landscaping, and utility work. Powered by the reliable Kubota V2203-M-E3 engine, the KX161-3S delivers exceptional horsepower and torque, ensuring you can tackle the toughest jobs with ease.
One of the standout features of the KX161-3S is its angle blade, which significantly enhances versatility and efficiency on the job site. The angle blade allows for easy backfilling and leveling without the need to reposition the machine, saving valuable time and effort. This innovative feature, combined with the machine’s robust hydraulic system, provides operators with smooth, precise control and outstanding performance.
KX161-3S Angle Blade Excavator Dimensions
| Overall Length | 18’2″ (5540 mm) |
| Overall Height (Canopy / Cab) | 8’4″ (2540 mm) / 8’4″ (2540 mm) |
| Overall Width | 6’5″ (1960 mm) |
| Min. Ground Clearance | 12.5″ (320 mm) |

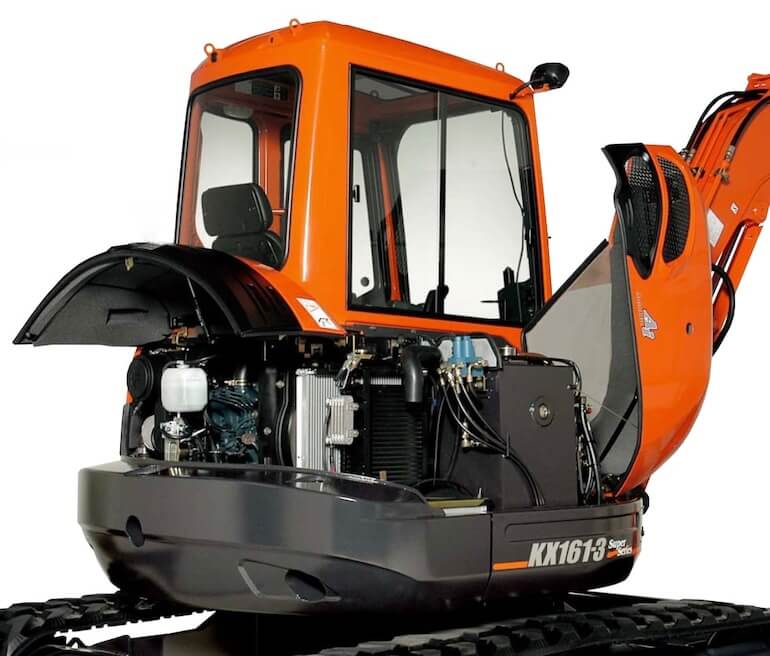

Kubota KX161-3S Angle Blade Excavator Engine Specs
| Engine Model | Kubota V2403-M-E3 |
| Output (SAEJ 1995 gross) | 46.0 HP (34.3 kW) / 2300 rpm |
| Output (SAEJ 1349 net) | 43.8 HP (32.7 kW) / 2300 rpm |
| Displacement | 148.5 cu. in. (2434 cc) |
| Fuel Capacity | 18.5 gal (70 L) |
KX161-3S Angle Blade Excavator Working Range
| Max. digging height | 18′ 11″ (5770 mm) |
| Max. dumping height | 13′ 7″ (4140 mm) |
| Max. digging depth | 12′ 7″ (3845 mm) |
| Max. vertical digging depth | 10′ 5″ (3180 mm) |
| Max. digging radius, at ground level | 20′ 2″ (6145 mm) |
| Max. digging radius | 20′ 7″ (6275 mm) |
| Min. turning radius (W/o swing) | 7′ 11″ (2420 mm) |
| Min. turning radius (with swing) | 6′ 5″ (1945 mm) |
| Min. tail turning radius | 3′ 7″ (1090 mm) |
| Crawler Length | 8’2″ (2500 mm) |
| Tumbler Distance | 6’6″ (1990 mm) |
| Shoe Width | 15.7″ (400 mm) |
| Ground Contact Pressure (Rubber / Steel) | Canopy: 4.45 psi (0.31 kgf/cm²) / 4.51 psi (0.32 kgf/cm²) Cab: 4.51 psi (0.32 kgf/cm²) / 4.55 psi (0.32 kgf/cm²) |
| Max. Blade Lift Above Ground | 17.9″ (455 mm) |
| Max. Blade Drop Below Ground | 14.8″ (375 mm) |
| Max. Swing Angle (Left / Right) | 25° |
| Blade Width | 6’5″ (1960 mm) |
| Blade Height | 15.4″ (390 mm) |
| Boom Swing Angle (Left / Right) | 80° / 50° |
| Unit Swing Speed | 9.3 rpm |
KX161-3S Angle Blade Excavator Drive & Hydraulic
| Pump Capacity | 31.4 gpm (118.9 L/min) |
| Auxiliary Hydraulic Flow | 19.3 gpm (73.0 L/min) |
| Hydraulic Oil (Reservoir / System) | 12.0 gal (46 L) / 19.8 gal (75 L) |
| Travel Speed (Low / High) | 1.6 mph (2.5 km/h) / 2.9 mph (4.6 km/h) |
| Max. Traction Force | 12864 lbs. (5835 kgf) |
| Max. Breakout Force (Bucket / Arm) | 11118 lbs. (5043 kgf) / 4967 lbs. (2253 kgf) |
Kubota KX161-3S (Angle Blade) Operating Specs
| Operating weight: – Canopy (Rubber / Steel) – Cab (Rubber / Steel) |
(Including operator’s weight 175 lbs): – 11960 lbs. (5425 kg) / 12120 lbs. (5510 kg) – 12125 lbs. (5500 kg) / 12290 lbs. (5585 kg) |
| Type of ROPS / FOPS | Canopy / Cab |
| Type of Tracks | Rubber / Steel |
The operator’s cabin is designed for maximum comfort and productivity, featuring ergonomic controls, excellent visibility, and a spacious layout. The advanced hydraulic system ensures that every movement is precise and fluid, making complex tasks easier and more efficient.
Durable and reliable, the Kubota KX161-3S Angle Blade Mini Excavator is built to withstand the rigors of demanding job sites. Its compact size allows for easy maneuverability in tight spaces, while its powerful performance ensures that no task is too challenging. Whether you’re digging, grading, or backfilling, the KX161-3S provides the power and versatility you need to get the job done right.
