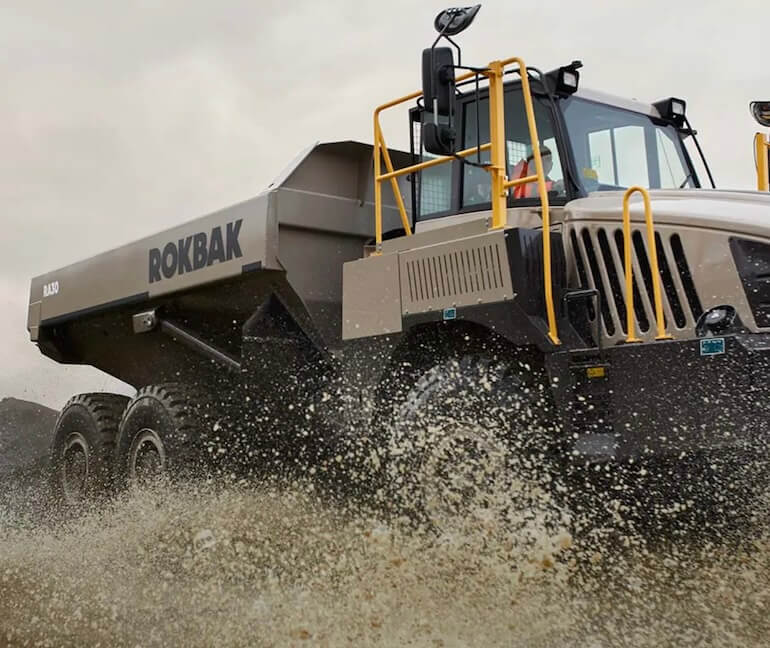

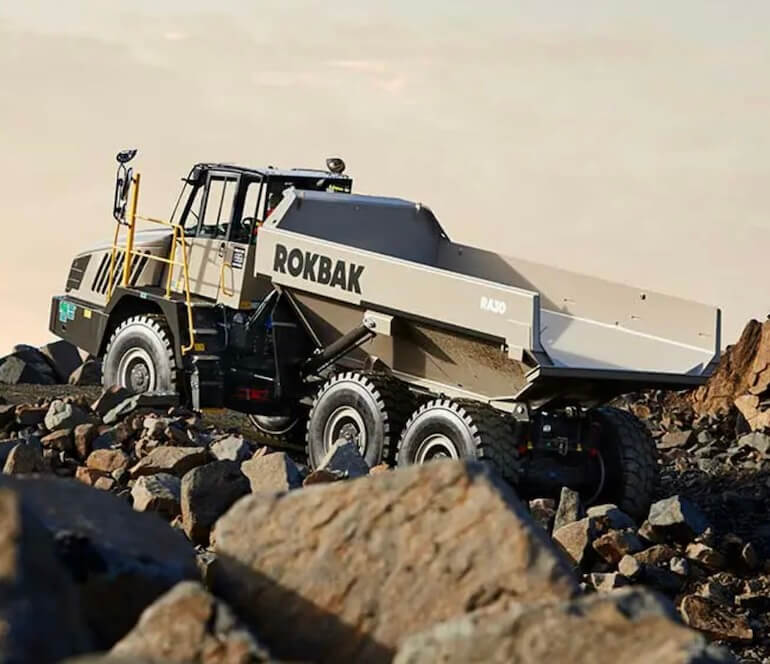

The Rokbak RA30 Articulated Hauler is a dynamic and reliable solution for medium to heavy-duty hauling tasks in various challenging environments. Built to withstand the rigors of construction, mining, and quarry operations, the RA30 combines durability with high performance, ensuring that it can handle the most demanding jobs with ease and efficiency.
Powered by a robust engine that complies with the latest emission standards, the RA30 delivers impressive fuel efficiency and reduced environmental impact. Its advanced transmission system ensures smooth and precise control, while the all-wheel-drive capability provides exceptional traction and stability across rough and uneven terrain.
Rokbak RA30 Engine Specs
| Engine Model | Scania DC9 turbo charged, 5 cylinder |
| Displacement | 568 in3 (9.3 L) |
| Engine Power | 370 hp (276 kW) |
| Engine Torque | 1,387 ft-lb (1,880 Nm) @ 1400 rpm |
Rokbak RA30 Capacities
| Payload Capacity | 61,729 lb (28,000 kg) |
| Body Capacity (Heaped) | 22.9 yd³ (17.5 m³) |
| Body Capacity (Struck) | 18.0 yd³ (13.8 m³) |
| Fuel Tank Capacity | 98 gal (370 L) |
| Hydraulic Tank Capacity | 43.3 gal (164 L) |

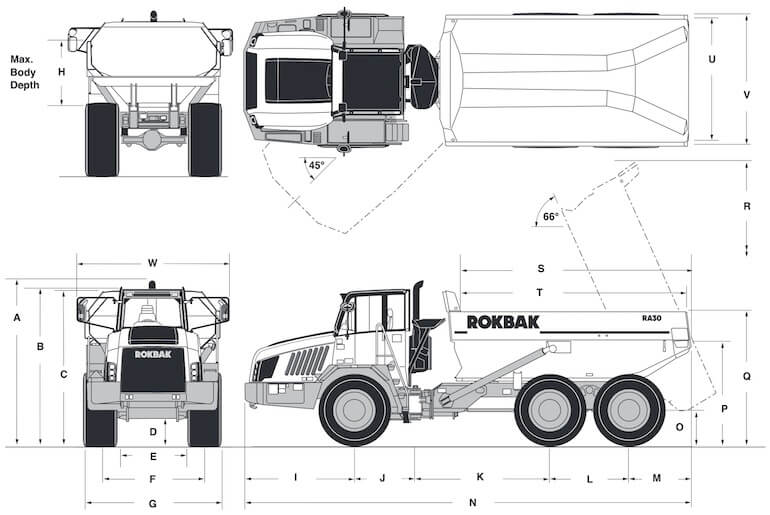

Rokbak RA30 Dump Truck Dimensions
| Overall Length | 32.58 ft (993 cm) |
| Overall Width | 10.6 ft (324 cm) |
| Overall Height | 11.7 ft (356 cm) |
| Tires | 23.5 R25 (750/65 Optional) |
| Rims | 25×19.50 (25×22.00 Optional) |
| Turning Radius | 27.9 ft (8.5 m) |
| Ground Clearance | 20 in (510 mm) |
Rokbak RA30 Dump Truck Transmission
| Transmission | ZF 8EP320. Fully automatic 8 speed transmission with manual over-ride and retarder. |
| Drivetrain | 6×6 |
| Max Speed | 34 mph (55 km/h) |
Rokbak RA30 Weights
| EU Stage V Models | Tier 4 Final Models | Tier 2 Models | |
|---|---|---|---|
| Net Distribution | |||
| Front Axle | 29,129 lb (13,213 kg) | 29,851 lb (13,540 kg) | 29,247 lb (13,266 kg) |
| Centre Axle | 12,945 lb (5,872 kg) | 12,095 lb (5,486 kg) | 12,037 lb (5,460 kg) |
| Rear Axle | 12,844 lb (5,826 kg) | 12,315 lb (5,586 kg) | 12,110 lb (5,493 kg) |
| Vehicle, Net | 54,919 lb (24,911 kg) | 54,260 lb (24,612 kg) | 53,394 lb (24,219 kg) |
| Payload | 61,729 lb (28,000 kg) | 61,729 lb (28,000 kg) | 61,729 lb (28,000 kg) |
| Gross Distribution | |||
| Front Axle | 35,300 lb (15,980 kg) | 34,948 lb (15,852 kg) | 33,283 lb (15,097 kg) |
| Centre Axle | 40,386 lb (18,319 kg) | 40,179 lb (18,225 kg) | 40,248 lb (18,256 kg) |
| Rear Axle | 40,431 lb (18,339 kg) | 40,863 lb (18,535 kg) | 41,592 lb (18,866 kg) |
| Vehicle Gross | 116,047 lb (52,638 kg) | 115,990 lb (52,612 kg) | 115,123 lb (52,219 kg) |
| Ancillary Weights | |||
| Frame | 8,217 lb (3,727 kg) | 8,217 lb (3,727 kg) | 8,217 lb (3,727 kg) |
| Body | 8,325 lb (3,776 kg) | 8,325 lb (3,776 kg) | 8,325 lb (3,776 kg) |
| Hoist, Pair | 1,170 lb (530 kg) | 1,170 lb (530 kg) | 1,170 lb (530 kg) |
The hauler’s solid construction features reinforced components and a sophisticated hydraulic system, allowing it to carry heavy loads and operate efficiently under tough conditions.

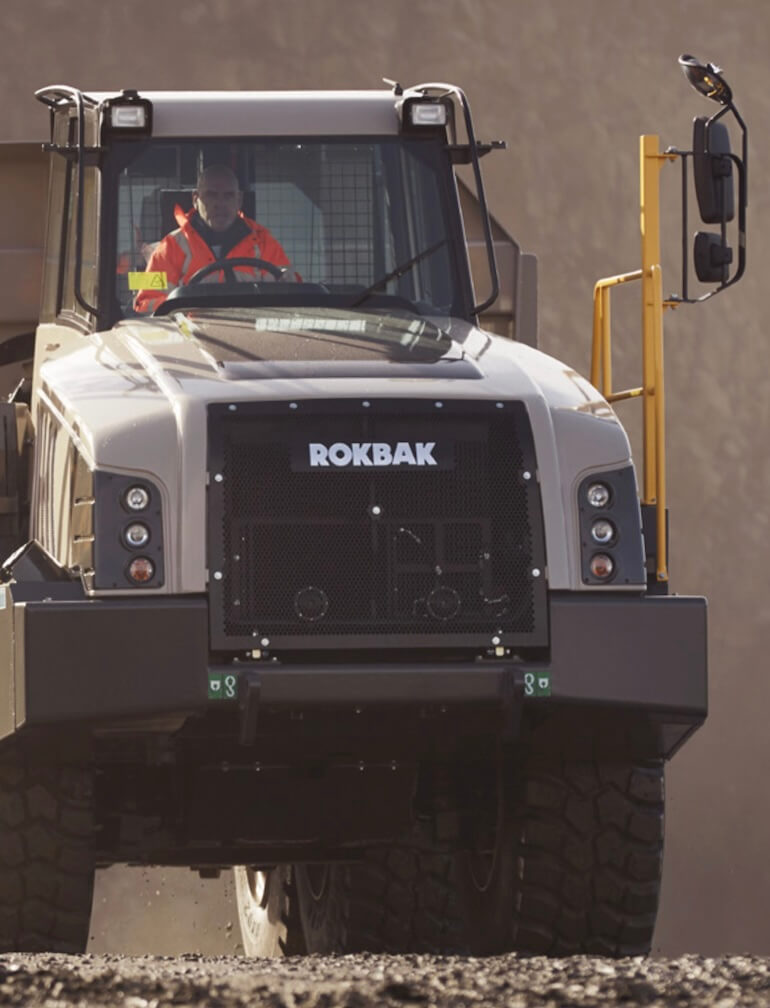

The RA30 is designed with operator comfort and safety in mind. Its spacious and ergonomic cab offers excellent visibility, intuitive controls, and a host of safety features to ensure a secure and comfortable working environment. Maintenance is made easy with the RA30’s user-friendly design, which helps minimize downtime and maximize productivity on the job site.
With its blend of powerful performance, rugged reliability, and ease of use, the Rokbak RA30 Articulated Hauler stands out as a dependable partner for all your hauling needs.
