The Hitachi EX2600-7 B, T4F Mining Excavator is a powerful and efficient machine designed exclusively for the North American market. This mining excavator boasts a robust net power of 1,119 kW (1,500 HP), making it a formidable asset in large-scale mining operations.
With a substantial operating weight, the EX2600-7B, T4F comes in two configurations: the backhoe and the shovel. The backhoe version weighs 257,000 kg (566,588 lbs), while the shovel variant tips the scales at 259,000 kg (570,997 lbs). This weight, combined with its powerful engine, ensures stability and durability in the most demanding environments.
Hitachi EX2600 7 B Excavator Dimensions
| Specification | Value |
|---|---|
| Width | 26 ft. 5 in (8,040 mm) |
| Height | 23 ft. 9 in (7,250 mm) |
| Length | 35 ft. 8 in (10,865 mm) |
| Shoe Width (Loading Shovel) | 40 in (1,000 mm) |
| Operating Weight (Loading Shovel) | 570,997 lbs (259,000 kg) |
| Ground Pressure (Loading Shovel) | 189 kPa (1.92 kgf/cm², 27.4 psi) |
| Shoe Width (Backhoe) | 1,000 mm (40 in.) |
| Operating Weight (Backhoe) | 566,588 lbs (257,000 kg) |
| Ground Pressure (Backhoe) | 187 kPa (1.91 kgf/cm², 27.1 psi) |
| Swing Speed | 4.1 min -1 (rpm) |
| Fuel Tank Capacity | 1,400 gal (5,300 L) |
| DEF Tank Capacity (T4F) | 94 gal (356 L) |

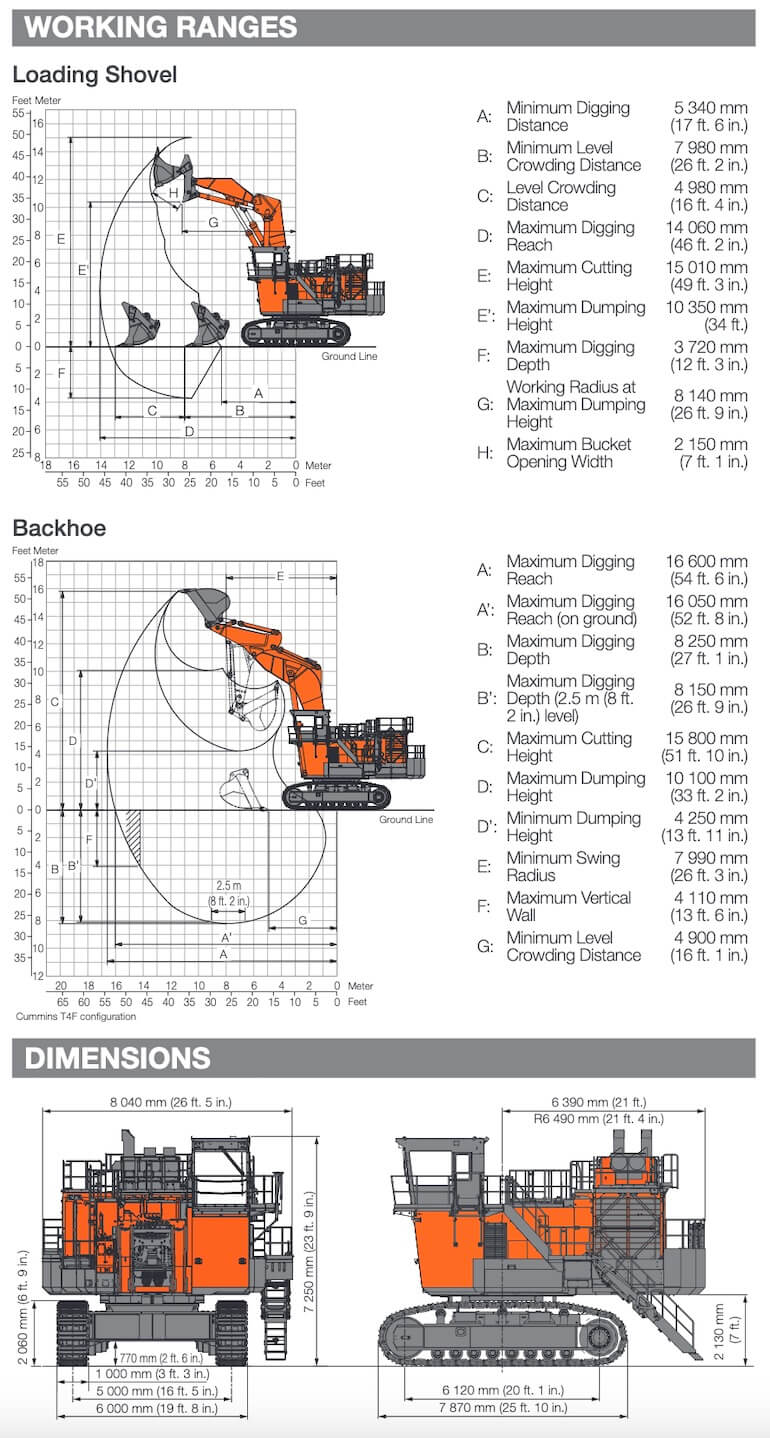

Hitachi EX2600 7B Working Ranges
| Range | Backhoe | Shovel |
|---|---|---|
| Minimum Digging Distance | – | 17 ft. 6 in. (5,340 mm) |
| Minimum Level Crowding Distance | 16 ft. 1 in. (4,900 mm) | 26 ft. 2 in. (7,980 mm) |
| Level Crowding Distance | – | 16 ft. 4 in. (4,980 mm) |
| Maximum Digging Reach – Maximum Digging Reach (on ground) |
54 ft. 6 in. (16,600 mm) 52 ft. 8 in. (16,050 mm) |
46 ft. 2 in. (14,060 mm) – |
| Maximum Cutting Height | 51 ft. 10 in. (15,800 mm) | 49 ft. 3 in. (15,010 mm) |
| Maximum Dumping Height | 33 ft. 2 in. (10,100 mm) | 34 ft. (10,350 mm) |
| Maximum Digging Depth – Maximum Digging Depth (2.5 m level) |
27 ft. 1 in. (8,250 mm) 26 ft. 9 in. (8,150 mm) |
12 ft. 3 in. (3,720 mm) – |
| Working Radius at Maximum Dumping Height | – | 26 ft. 9 in. (8,140 mm) |
| Maximum Bucket Opening Width | – | 7 ft. 1 in. (2,150 mm) |
| Minimum Dumping Height | 13 ft. 11 in. (4,250 mm) | – |
| Minimum Swing Radius | 26 ft. 3 in. (7,990 mm) | – |
| Maximum Vertical Wall | 13 ft. 6 in. (4,110 mm) | – |
Hitachi EX2600 7 Mining Excavator Engine Specs
| Engine Model | Specification |
|---|---|
| Cummins QSKTA50 CE (FCO, T4F) | Rated Power: 1,119 kW (1,520 PS, 1,500 HP) @ 1,800 min-1 (rpm) Displacement: 50.0 L (3,051 cu.in.) |
| MTU 12V4000 C33R (FCO) | Rated Power: 1,150 kW (1,563 PS, 1,542 HP) @ 1,800 min-1 (rpm) Displacement: 57.2 L (3,490 cu.in.) |
| MTU 12V4000 C15 (T4F) | Rated Power: 1,150 kW (1,563 PS, 1,542 HP) @ 1,800 min-1 (rpm) Displacement: 57.2 L (3,490 cu.in) |
| Hitachi AC Electric Motor | Electric motor (860 kW, 1 169 PS, 1 153 HP) 50 Hz, 6 000 V, 6 600 V (Please contact hitachi for other specification request) |
Hitachi EX2600 7 Excavator Hydraulic System
| Specification | Value |
|---|---|
| Main Pumps | 6 variable-displacement, axial piston pumps for front attachment, travel and swing |
| Pressure Setting | 29.4 MPa (300 kgf/cm², 4,264 psi) |
| Max. Oil Flow | 4 x 375 L/min (4 x 99.1 gal./min.), 2 x 425 L/min (2 x 112.3 gal./min.) |
Hitachi EX2600 7 Undercarriage Specs
| Specification | Value |
|---|---|
| Max Travel Speeds | 0 to 2.3 km/h (0 to 1.4 mph) |
| Min Travel Speeds | 0 to 1.6 km/h (0 to 1.0 mph) |
| Maximum Traction Force | 1,330 kN (135,600 kgf, 298,944 lbf.) |
Hitachi EX2600 7 Excavator Attachments
| Type | Bucket Capacity (ISO heaped) | Material Density |
|---|---|---|
| Loading Shovel | 19.6 cu.yd (15.0 m³) | 3,034 lb./cu.yd (1,800 kg/m³) or less |
| Loading Shovel | 21.6 cu.yd (16.5 m³) | 2,697 lb./cu.yd (1,600 kg/m³) or less |
| Backhoe | 22.2 cu.yd (17.0 m³) | 3,034 lb./cu.yd (1,800 kg/m³) or less |
| Backhoe | 23.5 cu.yd (18.0 m³) | 3,034 lb./cu.yd (1,800 kg/m³) or less |
| Backhoe | 25.5 cu.yd (19.5 m³) | 2,697 lb./cu.yd (1,600 kg/m³) or less |
The excavator’s working ranges are impressive, offering a maximum digging reach of 16.6 meters (54 ft. 6 in.) for the backhoe and 14.06 meters (46 ft. 2 in.) for the shovel. When it comes to digging depth, the backhoe can reach a maximum of 8.25 meters (27 ft. 1 in.), whereas the shovel can achieve a maximum depth of 3.72 meters (12 ft. 3 in.). These specifications make the EX2600-7B, T4F highly versatile and capable of handling a wide range of mining tasks with precision and efficiency.
Whether you are looking to maximize productivity in mining applications or need a reliable and powerful excavator, the Hitachi EX2600-7B, T4F Mining Excavator is engineered to meet and exceed your expectations.
