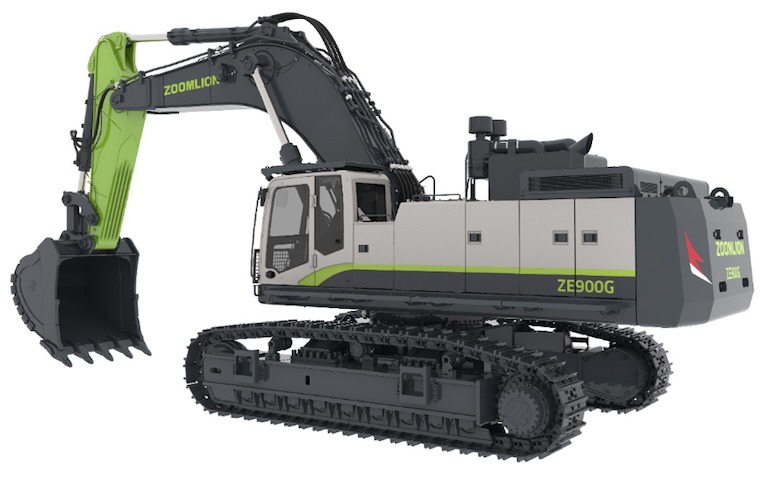

Introducing the Zoomlion ZE900G Mining Excavator, a machine engineered for excellence and durability in the toughest mining conditions. This state-of-the-art excavator is designed to deliver exceptional performance, efficiency, and safety, making it an indispensable asset for any mining operation.
The ZE900G’s main structural components boast a design life of over 30,000 hours. Utilizing a composite high-strength plate structure along with cast and forged elements in high-stress areas, this excavator is built to withstand the rigors of mining environments. It features a specially lengthened and widened chassis, a large torque and long-life walking reducer, and a full crawler guard plate to tackle various mine working conditions with ease. The boom front fork and rear support are cast, while the middle support is forged and strengthened for enhanced durability. The bucket is expertly designed with an optimal cutting angle and minimal resistance, constructed from high wear-resistant steel for extended service life.
Zoomlion ZE900G Excavator Engine Specs
| Engine Model | CUMMINS X15 |
| Engine Power | 575 hp (429 kW) @ 1800 rpm |
| Displacement | 3,96 gal (15 L) |
| Maximum torque | 2644 N·m @ 1400 rpm |
| Emission Standards | U.S. EPA Tier 3/2 Final |
Zoomlion ZE900G Operating Specifications
| Operating Weight | 200,621 lbs (91000 kg) |
| Bucket Capacity | 6 – 9.2 yd3 (4.6-7 m3) |
| Swing Speed | 6.8 r/min |
| Max Travel Speed | 2.6 mph (4.2 km/h) |
| Min Travel Speed | 1.7 mph (2.8 km/h) |

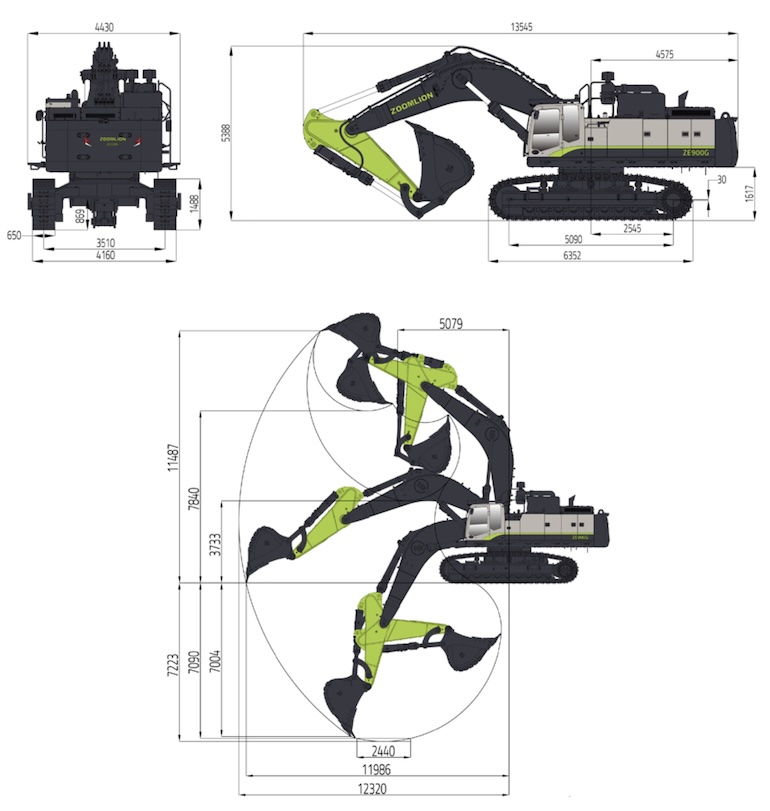

Zoomlion ZE900G Excavator Working Ranges
| Maximum Traction | 143,878 lbf (630 kN) |
| Bucket Digging Force | 116,901 lbf (520 kN) |
| Arm Digging Force | 89,924 lbf (400 kN) |
| Maximum Digging Distance | 40′ 6″ (12,335 mm) |
| Maximum Excavation Distance on the Ground | 39′ 4″ (11,985 mm) |
| Maximum Excavation Depth | 23′ 1″ (7,035 mm) |
| Maximum Digging Height | 39′ 5″ (12,025 mm) |
| Maximum unloading height | 26′ 5″ (8,050 mm) |
Powered by a Cummins X15 Engine (U.S. EPA Tier 2 compliant) paired with a Zoomlion-customized hydraulic system, the ZE900G ensures stable and efficient operation. Fuel consumption is reduced by 5% compared to previous generations. The intelligent heat balance control technology enhances thermal management, ensuring better performance under varying conditions. The advanced ESI electronic control system optimizes the main pump and valve, enabling multi-mode power self-matching that adjusts to different loads, improving work efficiency by 5%.
The ZE900G features a modular design for one-stop inspection, an automatic lubrication system, and long-term hydraulic oil, effectively doubling the replacement cycle and reducing comprehensive costs by 35%. The bucket tooth hammer-free design decreases replacement time by 80%, adding to the machine’s convenience and operational efficiency. Additionally, it can be equipped with the ZRB 900 rock arm, known for its high excavation and crushing efficiency and low maintenance costs.
Safety is paramount with the ZE900G, equipped with rear and side view cameras, anti-slide plates, and other safety features. The operator cabin boasts an 8-inch large screen display and a new man-machine interactive operation system that is rich in functionality and easy to use, significantly improving work efficiency.
The Zoomlion ZE900G Mining Excavator is a powerful, efficient, and reliable machine designed to meet the demands of modern mining operations. Its advanced features and robust design make it a leader in the industry, ensuring optimal performance, reduced operational costs, and enhanced safety for operators.
