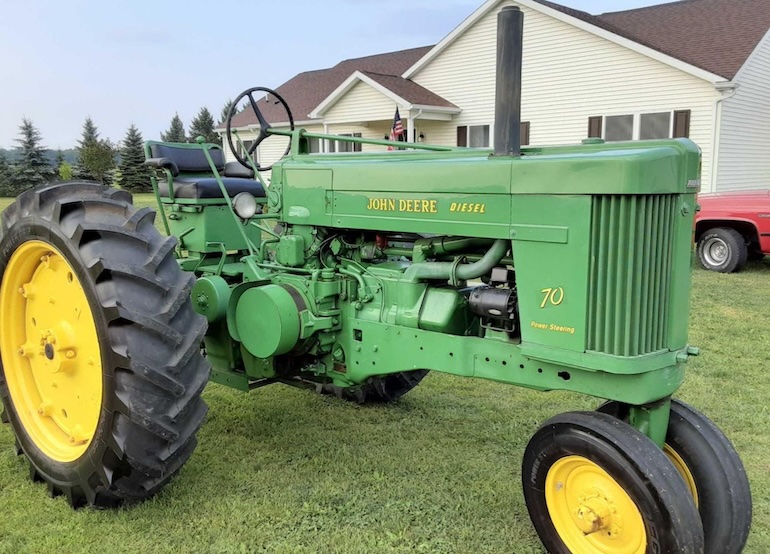

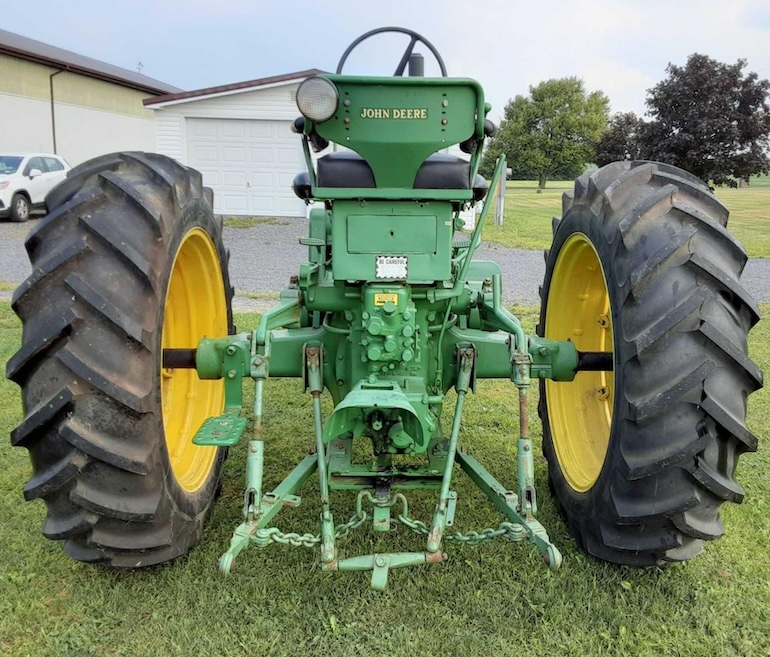

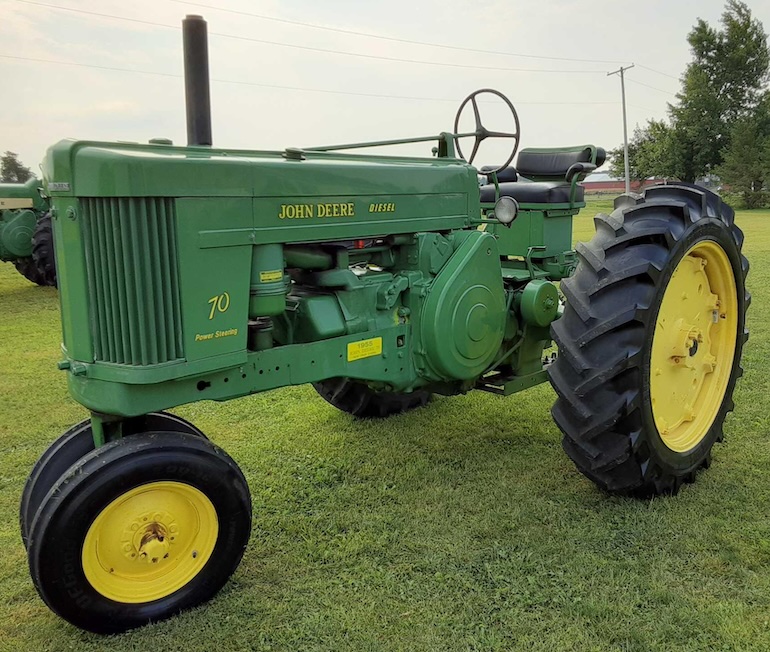

The John Deere 70 Row-Crop Tractor, produced from 1953 to 1956, represents a significant era in agricultural machinery, blending power, versatility, and the renowned reliability of John Deere.
As a pivotal model in the two-cylinder era, the John Deere 70 was designed to meet the needs of mid-20th century farmers, offering enhanced performance and ease of use for a variety of row-crop farming tasks.
John Deere 70 Tractor Engine Specs
| Engine Model (variants) | John Deere 6.2L 2-cyl gasoline John Deere 6.2L 2-cyl LP gas John Deere 6.2L 2-cyl diesel |
| Gasoline Fuel Tank | 24.5 gal (92.7 L) |
| Diesel Fuel Tank | 20 gal (75.7 L) |
| LP Gas Fuel Tank | 33 gal (124.9 L) |
| Drawbar (tested) | 45.60 hp 34.0 kW |
| Belt (tested) | 50.86 hp 37.9 kW |
| Rear PTO RPM | 540 rpm |
| Rear PTO Type | Transmission (independent optional) |
John Deere 70 Tractor Transmission
| Type | Unsynchronized gear |
| Gears | 6 forward + 1 reverse |
| Clutch | Dry disc |
| Drive | Two-wheel drive |
| Steering | Manual (Power optional) |
| Brakes | Differential mechanical expanding shoe brakes |
John Deere 70 Tractor Dimensions
| Length (Gas / Diesel) | 136.25 in (346 cm) / 137 in (347 cm) |
| Height (Gas / Diesel) | 65.6 in (166 cm) / 88 in (223 cm) |
| Width | 86.6 in (220 cm) |
| Wheelbase | 91 in (231 cm) |
| Tires (Front / Rear) | 6.00-16 / 12-38 (13-38) |
John Deere 70 Operating Specifications
| Operating Weight (Gas Operating) | 6538 lbs (2965 kg) |
| Operating Weight (Diesel Operating) | 7079 lbs (3211 kg) |
| Operating Weight (Ballasted) | 9000 lbs (4082 kg) |
| Cab | Open operator station |
| Batteries | 2 (gas) / 1 (diesel) |
| Battery Voltage | 6 V |
Equipped with a robust engine and advanced features for its time, the John Deere 70 was available in multiple configurations, including gasoline, diesel, and LP-gas variants, catering to diverse farming requirements. Its powerful engine, efficient hydraulics, and user-friendly controls made it a favorite among farmers seeking dependable performance in plowing, planting, cultivating, and harvesting.
The John Deere 70 Row-Crop Tractor is celebrated not only for its technical capabilities but also for its contribution to the evolution of agricultural practices during its production years.
Today, it remains a cherished piece of farming history, reflecting the innovation and enduring quality synonymous with the John Deere brand.
