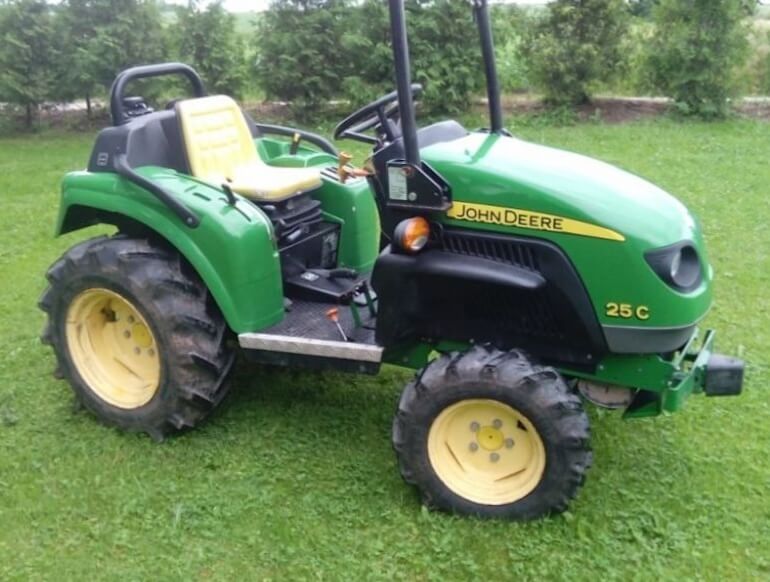

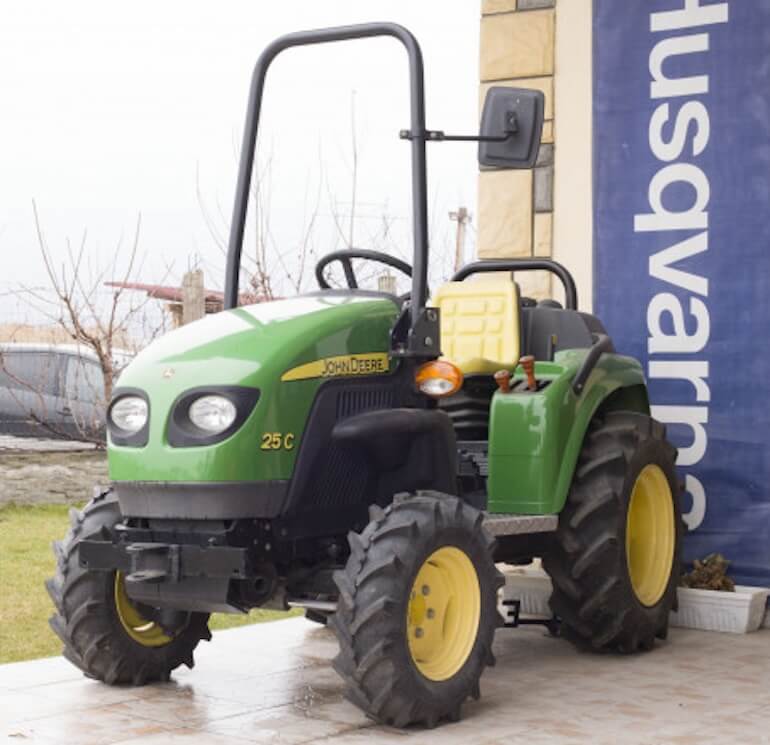

The John Deere Milenio 25C Compact Utility Tractor, built from 2009 to 2015, is a versatile and reliable machine designed for a wide range of agricultural and landscaping tasks.
This compact utility tractor is engineered to provide exceptional maneuverability and performance, making it ideal for small to medium-sized farms and gardens. Its robust construction and advanced features ensure durability and efficiency, allowing operators to tackle various challenges with ease.
John Deere Milenio 25C Engine Specs
| Engine Model | Yanmar 3TNV76 Diesel 3-cylinder |
| Displacement | 68.1 ci (1.1 L) |
| Engine (gross) | 23.7 hp (17.7 kW) |
| Engine (net) | 21.9 hp (16.3 kW) |
| Max Torque | 47.9 lb-ft (65.0 Nm) @ 1800 rpm |
| PTO (claimed) | 17.7 hp (13.2 kW) |
| Starter | Electric, 12 V |
JD Milenio 25 C Tractor Dimensions
| Length | 96.7 in (245 cm) |
| Width | 40.6 in (103 cm) |
| Height (ROPS) | 54.7 in (138 cm) |
| Ground clearance | 9.8 in (24 cm) |
| Max front axle | 1323 lbs (600 kg) |
| Max rear axle | 1764 lbs (800 kg) |
| Tire Size (front : rear) Standard Ag | 6.5/80×12 : 8.25×16 (250×80-16) |
| Tire Size (front : rear) Lawn / Turf | 20×8-10 : 27×10.5-15 |
| Tire Size (front : rear) Industrial | 25×5.5-14 : 15-19.5 |
| Weight | 1,962 lbs (889 kg) |
John Deere 25 C Milenio Transmission Specs
| Type | Mechanical shuttle |
| Gears | 8 forward and reverse (4 gears in 2 ranges with reverser) |
| Steering | Power |
| Rear PTO | 540 / 1000 rpm |
John Deere 25C Milenio Operating Specs
| Tractor Type | Compact Utility Tractor |
| Hydraulic Pressure | 2176 psi (150.0 bar) |
| Hydraulic Pump Flow | 3.7 gpm (14.0 lpm) |
| Cab | Two-post mid-mount folding ROPS |
| Battery Voltage | 12 V |
| Max Capacity | 3,086 lbs (1,399 kg) |
| Tractor Hitch Type | IN |
| Rear Tractor Hitch Lift (at 24″ / 610mm) | 551 lbs (249 kg) |
The Milenio 25C is equipped with a powerful engine and efficient transmission system, delivering the necessary power and control for demanding tasks. Its ergonomic design enhances operator comfort and ease of use, promoting productivity during long working hours.
With its compact size, the Milenio 25C can navigate tight spaces and handle diverse terrain, making it a valuable asset for those requiring a reliable and adaptable tractor for their agricultural and landscaping needs.
