The Bobcat UW53 Toolcat Utility Work Machine is a versatile and powerful piece of equipment designed to handle a wide range of tasks with ease and efficiency. This model combines the functionalities of a compact tractor, utility vehicle, and skid-steer loader into one robust machine, making it ideal for construction, landscaping, agriculture, and various other applications.
The Bobcat UW53 Toolcat Utility Work Machine is equipped with a high-performance Tier 4 diesel engine, advanced hydraulic systems, and a range of features to enhance productivity and operator comfort. With its impressive operating capacity, compact dimensions, and user-friendly controls, the Bobcat UW53 Toolcat is built to deliver exceptional performance in diverse working environments.
Bobcat UW53 Toolcat Operating Specs
| Rated Operating Capacity (ISO) | 1,500 lb (680 kg) |
| Travel Speed – Max | 16.5 mph (27 km/h) |
| Turning Radius (AWS Mode) | 50.5 in (128 cm) |
Bobcat UW53 Engine Specifications
| Horsepower | 61 hp (45 kW) |
| Turbocharged Engine | Yes |
| Engine Fuel | Diesel |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
Bobcat UW53 Toolcat 4×4 Performance
| Rated Operating Capacity (ISO) | 1,500 lb (680 kg) |
| Operating Weight | 5710 lb (2590 kg) |
| Travel Speed – Max | 16.5 mph (27 km/h) |
| Travel Speed – Low | 8 mph (13 km/h) |
| Travel Speed – Reverse | 8 mph (13 km/h) |
| Machine Rated Capacity | 2200 lb (998 kg) |
| 3-Point Hitch | Category 1 |
| Lift Capacity at 24″ behind Lift Point | 1775 lb (805 kg) |
| PTO | 25 hp (18.6 kW) |
Bobcat UW53 Utility Work Machine Capacities
| Fuel Tank Capacity | 20 gal (76 L) |
| Total Vehicle Rated Capacity | 4200 lb (1905 kg) |
Bobcat UW53 4×4 Toolcat Hydraulic System
| Auxiliary Std Flow | 18.8 gal/min (71.2 L/min) |
| Auxiliary High Flow | 27.9 gal/min (105.6 L/min) |
| Auxiliary Pressure | 3,000 psi (20,684 kPa) |
Bobcat UW53 Toolcat 4×4 Dimensions
| Length | 180.8 in (459 cm) |
| Length without Attachment | 153.8 in (391 cm) |
| Width | 60 in (152 cm) |
| Width (with bucket) | 62 in (157 cm) |
| Height | 81 in (206 cm) |
| Height with Operator Cab | 81 in (206 cm) |
| Ground Clearance | 8 in (20 cm) |
| Turning Radius (AWS Mode) | 50.5 in (128 cm) |
| Outside Turning Diameter | 210 in (533 cm) |
Bobcat UW53 Cab Features
| Heater | Standard |
| Air Conditioning | Standard |
| Work Lights | Standard |
| Enclosed Operator Cab (ROPS/FOPS) | Standard |
| Auxiliary Hydraulics | Standard |
| Bob-Tach Attachment System | Standard |
| Joystick Control | Standard |
| Hydrostatic Transmission | Standard |
The UW53 Toolcat is designed to provide exceptional maneuverability and stability, featuring a tight turning radius and hydrostatic transmission that ensure smooth and precise control in confined spaces.

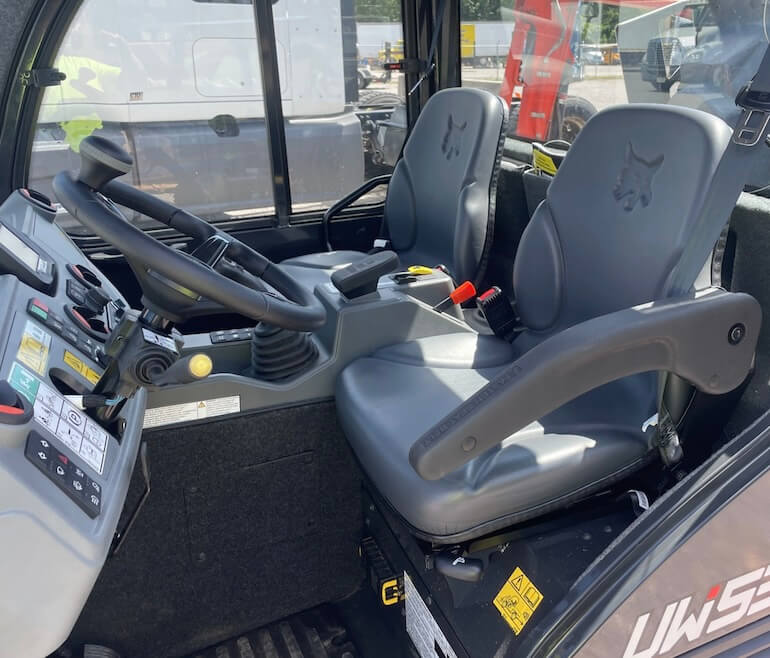

Its spacious operator cab offers a comfortable and ergonomic working environment, equipped with standard features such as auxiliary hydraulics, a Bob-Tach attachment system, and joystick controls for ease of operation.

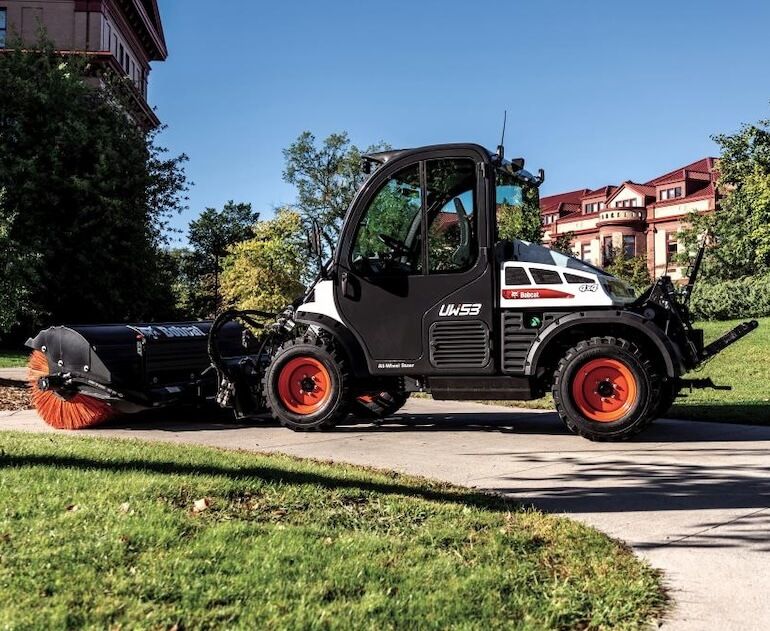

Additionally, the UW53 Toolcat supports a variety of attachments, enhancing its versatility and adaptability to different tasks. Whether it’s for lifting, hauling, digging, or mowing, the UW53 can quickly switch between attachments to meet the demands of the job at hand.
Its durable construction and reliable performance make it a valuable asset for professionals seeking a multifunctional machine that maximizes efficiency and minimizes downtime. With the Bobcat UW53 Toolcat Utility Work Machine, operators can tackle a wide range of projects with confidence and precision.
