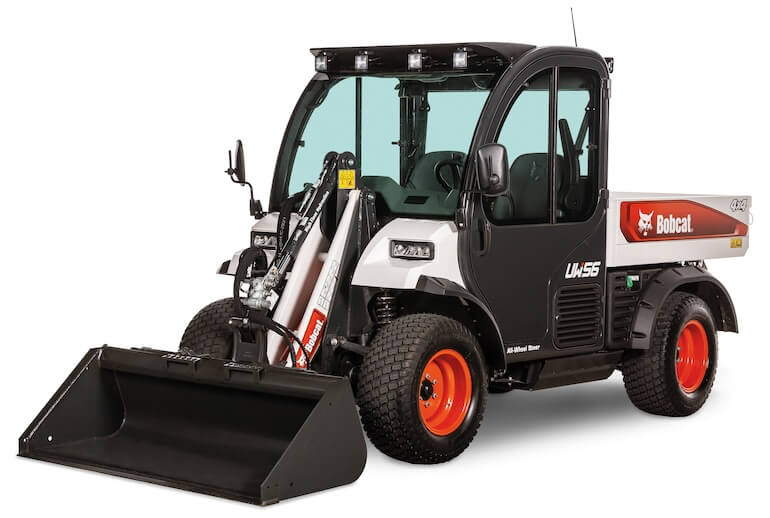

The Bobcat UW56 Toolcat 4×4 Utility Work Machine represents a versatile and robust solution for a variety of demanding tasks. Engineered to deliver a perfect blend of power and precision, the UW56 features a highly efficient Bobcat® Tier 4 engine and advanced variable-flow hydraulics.
The all-wheel steer capability ensures exceptional maneuverability, making it ideal for both tight spaces and wide-open worksites.

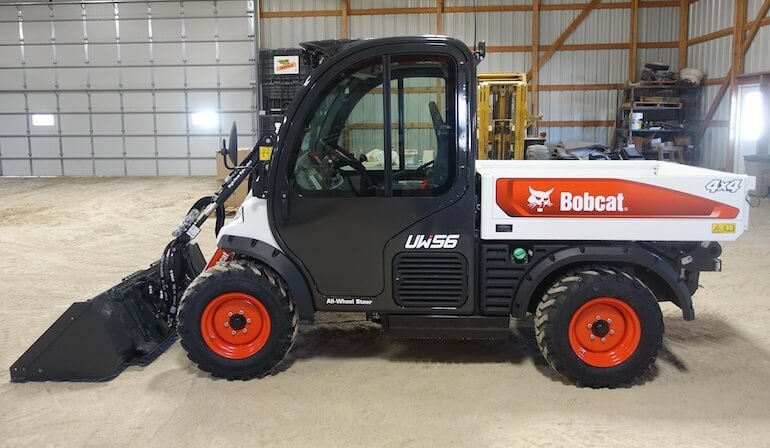

Bobcat UW56 Toolcat Operating Specs
| Rated Operating Capacity (ISO) | 1,500 lb (680 kg) |
| Max Travel Speed | 16.5 mph (27 km/h) |
| Cargo Box Maximum Load | 2,000 lb (907 kg) |
| Turning Radius (AWS Mode) | 50.5 in (1.28 m) |
Bobcat UW56 Engine Specifications
| Engine Power | 61 hp (45.5 kW) |
| Engine Fuel | Diesel |
| Turbocharged Engine | Yes |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
Bobcat UW56 Toolcat 4×4 Performance
| Rated Operating Capacity (ISO) | 1,500 lb (680 kg) |
| Operating Weight | 5680 lb (2577 kg) |
| Travel Speed – Max | 16.5 mph (27 km/h) |
| Travel Speed – Low | 8 mph (13 km/h) |
| Travel Speed – Reverse | 8 mph (13 km/h) |
| Machine Rated Capacity | 2200 lb (998 kg) |
Bobcat UW56 4×4 Toolcat Capacities
| Fuel Tank | 20 gal (76 L) |
| Cargo Box Bed Load Capacity | 2,000 lb (907 kg) |
| Cargo Box Length | 56 in (1.42 m) |
| Cargo Box Width | 51 in (1.30 m) |
| Cargo Box Height | 10 in (0.25 m) |
| Cargo Box Bed Load Height | 38.2 in (0.97 m) |
| Total Vehicle Rated Capacity | 4200 lb (1905 kg) |
Bobcat UW56 Toolcat Hydraulic System
| Auxiliary Flow (Std) | 18.8 gal/min (71.1 L/min) |
| Auxiliary Flow (High) | 27.9 gal/min (105.6 L/min) |
| Auxiliary Pressure | 3,000 psi (20,684 kPa) |

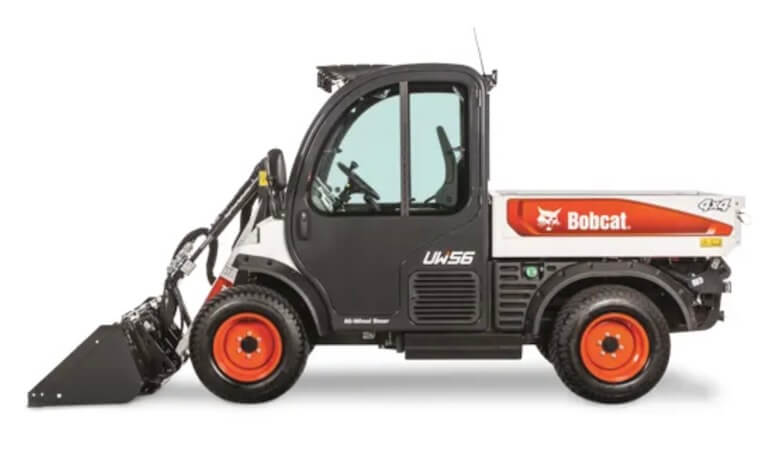

Bobcat UW56 Toolcat Dimensions
| Length | 172.1 in (4.37 m) |
| Length without Attachment | 145.3 in (3.69 m) |
| Width | 60 in (1.52 m) |
| Width (with bucket) | 62 in (1.57 m) |
| Height | 81 in (2.06 m) |
| Bed Height From Ground | 38.2 in (0.97 m) |
| Cargo Box Maximum Load | 2,000 lb (907 kg) |
| Cargo Box Volume | 16.5 ft³ (0.47 m³) |
| Ground Clearance | 8 in (0.20 m) |
| Turning Radius (AWS Mode) | 50.5 in (1.28 m) |
| Outside Turning Diameter | 210 in (5.33 m) |

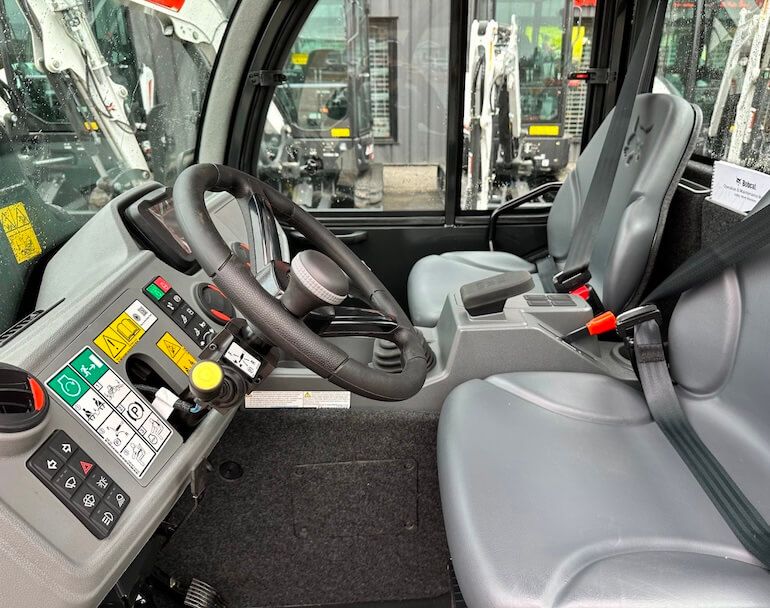

Bobcat UW56 Cab Features
Operator comfort and control are at the forefront of the UW56’s design. The operator-friendly controls and ergonomically designed cab provide a superior user experience, enhancing productivity and reducing fatigue during long hours of operation.
| Heater | Standard |
| Air Conditioning | Standard |
| Work Lights | Standard |
| Enclosed Operator Cab (ROPS/FOPS) | Standard |
| Auxiliary Hydraulics | Standard |
| Bob-Tach Attachment System | Standard |
| Joystick Control | Standard |
| Hydrostatic Transmission | Standard |

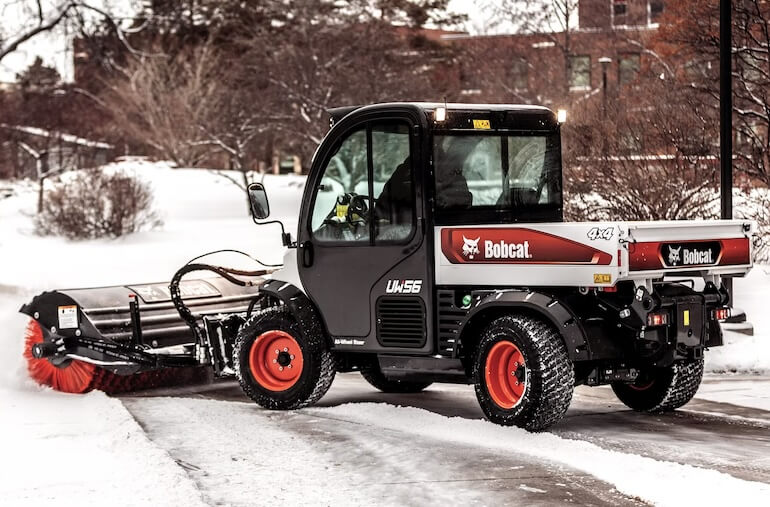

Bobcat UW56 Attachments
The Bobcat UW56 Toolcat 4×4 Utility Work Machine is not only powerful and versatile on its own but also significantly enhanced by its compatibility with a wide range of Bobcat attachments. These attachments extend the functionality of the UW56, allowing it to perform a variety of tasks with precision and efficiency. Here are some of the key attachments compatible with the UW56:

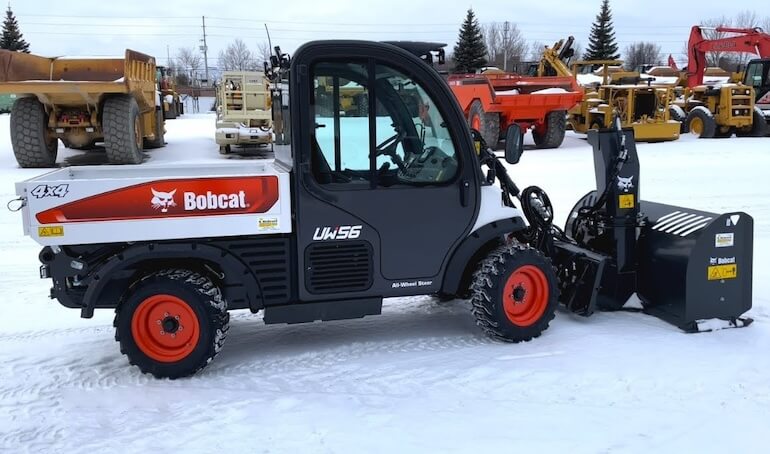

Snowblower: Ideal for clearing large amounts of snow quickly and efficiently, the Bobcat snowblower attachment transforms the UW56 into a formidable snow removal machine. It is perfect for maintaining driveways, parking lots, and sidewalks during the winter months.

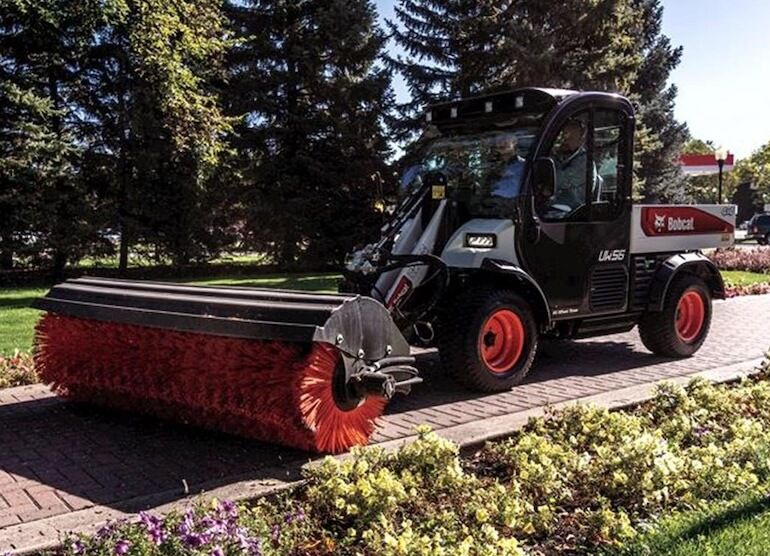

Angle Broom: The angle broom attachment is excellent for sweeping away dirt, debris, and light snow from pavements, driveways, and other surfaces. Its adjustable angles allow for versatile cleaning in various directions, making it an essential tool for property maintenance.

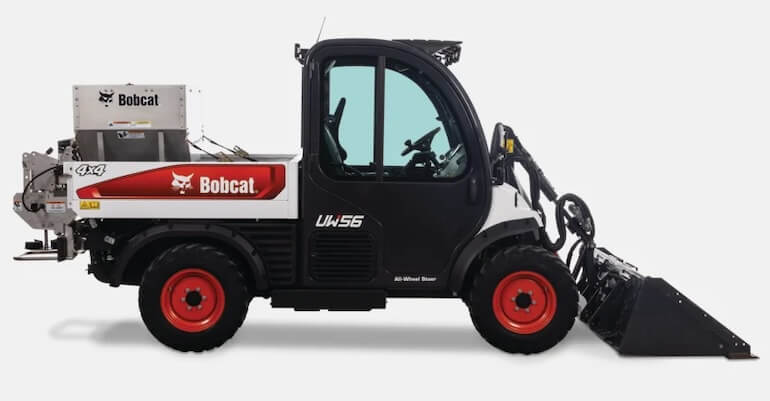

Spreader: Perfect for evenly distributing materials such as salt, sand, or seed, the spreader attachment enhances the UW56’s utility in landscaping and winter maintenance tasks. It ensures efficient coverage, reducing the time and effort needed for these applications.

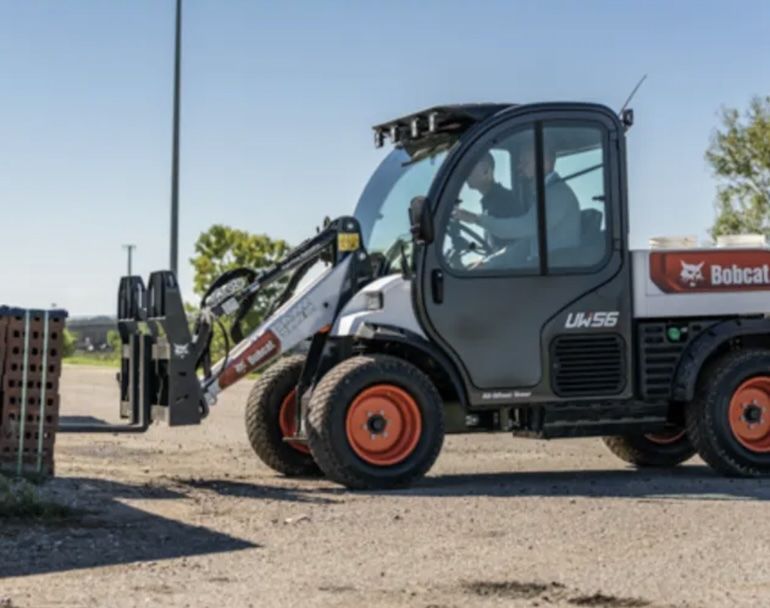

Pallet Fork: Transform the UW56 into a material handling powerhouse with the pallet fork attachment. It is ideal for lifting, moving, and placing pallets, making it an indispensable tool in warehouse operations, construction sites, and agricultural settings.
Snow Blade: This attachment makes quick work of snow removal, pushing snow off to the side with ease. The snow blade is particularly useful for clearing roads, driveways, and other large areas quickly and efficiently.
Each of these attachments is designed to integrate seamlessly with the Bobcat UW56 Toolcat, ensuring maximum efficiency and productivity. By leveraging these attachments, operators can tackle a broader range of tasks with a single machine, reducing the need for multiple pieces of equipment and optimizing workflow.
The UW56 also boasts impressive load capacities and hydraulic power, making it suitable for a wide range of applications from lifting and carrying to precise positioning and handling of heavy materials.
Whether you are tackling landscaping, construction, farming, or any other intensive work, the Bobcat UW56 Toolcat 4×4 Utility Work Machine offers the reliability, efficiency, and versatility needed to get the job done efficiently and effectively.
