The Cub Cadet Big Country 4×2 UTV Model 430 stands out as a versatile and robust utility vehicle, designed to meet the rigorous demands of various off-road tasks.
This model is available with two powerful engine options, each delivering 18 horsepower to provide reliable performance and efficiency for a wide range of applications.
Cub Cadet 430 Big Country 4×2 Engine Specs
| Engine Make | Honda | Kohler PS-62651 |
| Engine Power | 18 hp | 18 hp |
| Maximum Torque | 31.7 lb-ft (43 Nm) @ 2500 rpm | 32.6 lb-ft @ 2600 rpm |
| Engine Type | 4-Cycle Gas | 4-Cycle Gas |
| Cylinders | 2 | 2 |
| Valves | Overhead | Overhead |
| Engine Displacement | 37.5 cu. in. (614 cc) | 38 cu. in. (624 cc) |
| Ignition | Transistor Controlled | Transistor Controlled |
| Lubrication | Full Pressure | Full Pressure |
| Oil Filter | Replaceable (standard) | Replaceable (standard) |
| RPM, idle (no load) | 1,250 – 1,550 | 1300 rpm |
| RPM, fast (no load) | 3,850 – 4000 | 3950 rpm |
| Cooling System | Air | Air |
| Air Cleaner | Heavy Duty, Replaceable, Dual Element | Heavy Duty, Replaceable, Dual Element |
Cub Cadet 4×2 Big Country 430 Electrical System
| Battery | 30 A/hr, 365 cold cranking amps |
| Alternator | 12 V 20 A Regulated |
| Headlights | 2×37.5 watt Halogen |

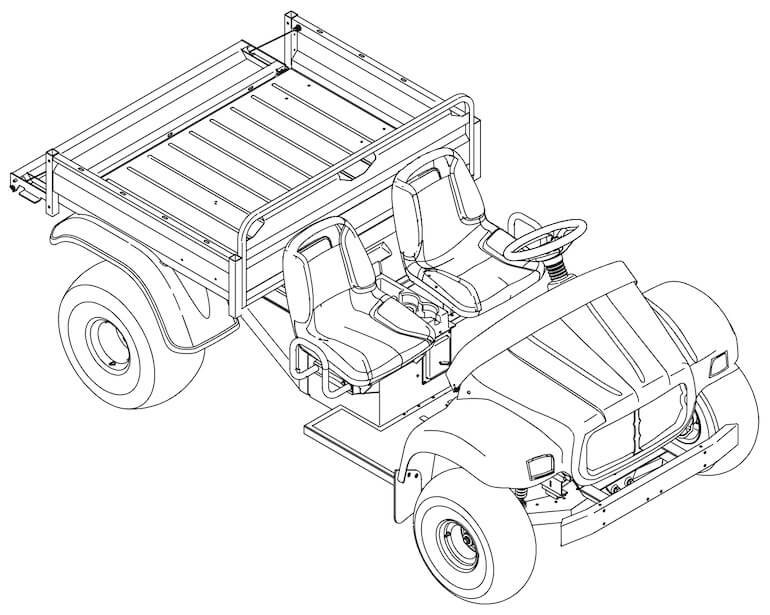

Cub Cadet 430 Big Country 4×2 UTV Dimensions
| Overall Length | 110.4” (280.4 cm) |
| Overall Width | 65.0” (165.1 cm) |
| Front-Tread Centers | 50.0” (127 cm) |
| Rear-Tread Centers | 52.0” (132.1 cm) |
| Overall Height | 41” (104.1 cm) |
| Wheel Base | 84.0” (213.4 cm) |
| Weight (including fuel/fluids) | 1,552 lbs. (704.2 kg) |
| Ground Clearance (Under Transaxle) | 6.4” (16.3 cm) |
| Ground Clearance (Under Foot Platform) | 7.5” (19.1 cm) |
| Seating Capacity | 2 persons |
| Seat Type | High Back |
| Turn Clearance Circle | 23.0 ft (7.0 m) |
| Towing Capacity | 1,200 lb (545.5 kg) |
| Payload Capacity | 1,400 lb (636.4 kg) |
Cub Cadet Big Country 4×2 Utility Vehicle Cargo Box
| Material | 14-Gauge Steel |
| Attachment | Rubber Isolated |
| Cargo Box Volume Capacity | 13.3 cu ft (0.38 m3) |
| Cargo Box Weight Capacity | 1,000 lb (453.6 kg) |
Cub Cadet 430 Big Country 4×2 Transmission Specs
| Transmission Type | Continuously Variable (CVT) |

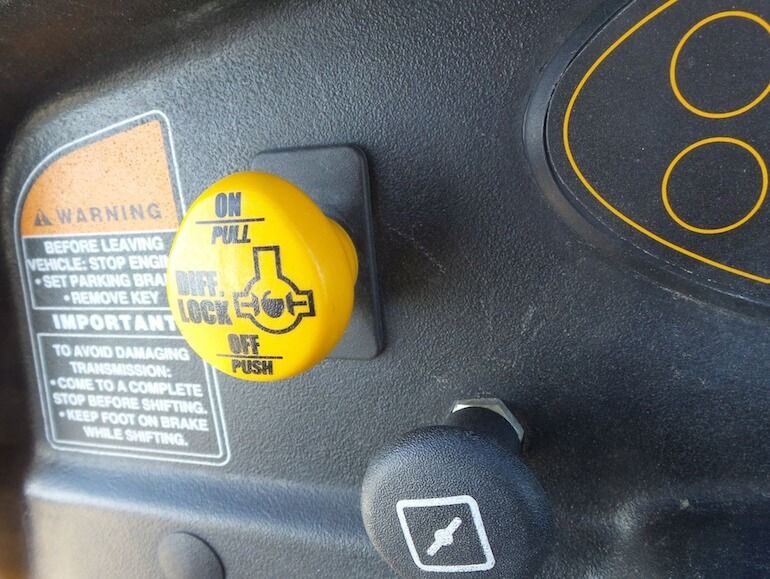

| Differential Lock | Standard, Hand Operated |
| Max Speed | 19 mph (30.6 km/h) |
| Transaxle | Fully enclosed, Oil Bath |
| Gear Selection | Forward, Neutral, Reverse |
| Overall Reduction Ratio | Low: 73.8:1, High: 16.5:1 |
| Drive Chain | No. 60 Industrial Roller Chain |
| Rear Axle Housing | Welded Steel |
| Steering | Rack & Pinion w/ Ackerman-Type Geometry |
| Front Suspension | Independent, spring over shock, single A-arm |
| Rear Suspension | Fully Independent w/ Coil Over Shocks |
| Brakes | Wet Disk in Transaxle |
| Parking Brake | Foot Operated |
| Fuel Gauge | Located Under Seat |
| Low Fuel Indicator | Dash Indicator Light |
| Fuel Tank Capacity | 5.7 gal (21.6 L) |
The first engine variant is the Honda 18 hp engine, featuring a displacement of 37.5 cubic inches (614 cc). Known for its durability and smooth operation, this Honda engine offers a balance of power and fuel efficiency, making it an excellent choice for those who require a dependable engine for everyday utility tasks.
The second option is the Kohler 18 hp engine, which comes with a slightly larger displacement of 38 cubic inches (624 cc). Kohler engines are renowned for their rugged construction and consistent performance under heavy loads. This makes the Kohler variant particularly suitable for more demanding environments where reliability and power are paramount.
Both engine options are designed to maximize the utility and versatility of the Big Country 4×2, ensuring that users can tackle a variety of jobs with confidence. Whether it’s for agricultural use, landscaping, or general property maintenance, the Cub Cadet Big Country 4×2 UTV Model 430 with either the Honda or Kohler engine is built to deliver superior performance and longevity.
