The Kawasaki Mule PRO FX 1000 is a powerhouse in the utility vehicle market, combining rugged durability, impressive power, and advanced features to meet the demands of both work and recreation. Designed to tackle the toughest tasks with ease, the Mule PRO FX 1000 stands out as a reliable and versatile companion for professionals and outdoor enthusiasts alike.
Kawasaki has equipped the Mule PRO FX 1000 with a host of advanced features to enhance comfort and convenience. The spacious cabin offers seating for three adults, with ample legroom and ergonomic design to ensure a comfortable ride, even during long hours of operation. The vehicle is also fitted with a digital display that provides essential information at a glance, including speed, fuel level, and engine status.

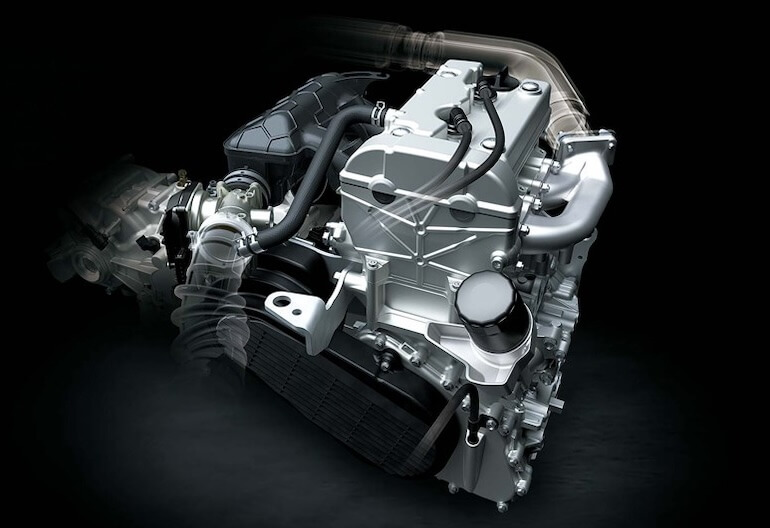

Kawasaki Mule PRO FX 1000 Engine Specs
| Engine Type | 4-stroke, 2-cylinder, DOHC, liquid-cooled, gas |
| Displacement | 61 cu in (999 cc) |
| Maximum Torque | 61.5 lb-ft (83.4 Nm) |
| Bore x Stroke | 92.0 x 75.1 mm |
| Compression Ratio | 10.1:1 |
| Alternator Output (max) | 90 amp |
| Fuel System | DFI with 38 mm throttle body |
| Fuel Capacity | 7.9 gal (30 L) |
At the heart of the Mule PRO FX 1000 is a robust 999cc liquid-cooled, 4-stroke, 3-cylinder engine that delivers exceptional power and torque. This engine ensures that the Mule PRO FX 1000 can handle heavy loads and challenging terrains without compromising on performance.
Whether you’re hauling equipment, transporting materials, or navigating rough trails, this utility vehicle provides the muscle needed to get the job done efficiently.
Kawasaki Mule PRO FX 1000 Transmission
Built to withstand the harshest conditions, the Mule PRO FX 1000 features a rugged frame and durable components that ensure long-lasting performance. The high ground clearance and robust suspension system allow the vehicle to navigate over obstacles and rough terrain with ease. Additionally, the selectable 2WD/4WD system with a dual-mode rear differential provides excellent traction and stability, making it suitable for various environments.
| Type | CVT with (L,H,N,R) |
| Final Drive | Selectable 2WD/4WD, shaft. Dual mode rear differential with differential lock |
| Front Suspension / Wheel Travel | Double wishbone / 11.0 in |
| Rear Suspension / Wheel Travel | Double wishbone / 10.1 in |
| Front Tires | 26 x 9.00-12, radial |
| Rear Tires | 26 x 11.00-12, radial |
| Steering | Rack-and-pinion |
| Front Brakes | Dual Disc, 2 piston caliper |
| Rear Brakes | Dual Disc, 1 piston caliper |
| Park Brake Type | Independent, Mechanical Disc |

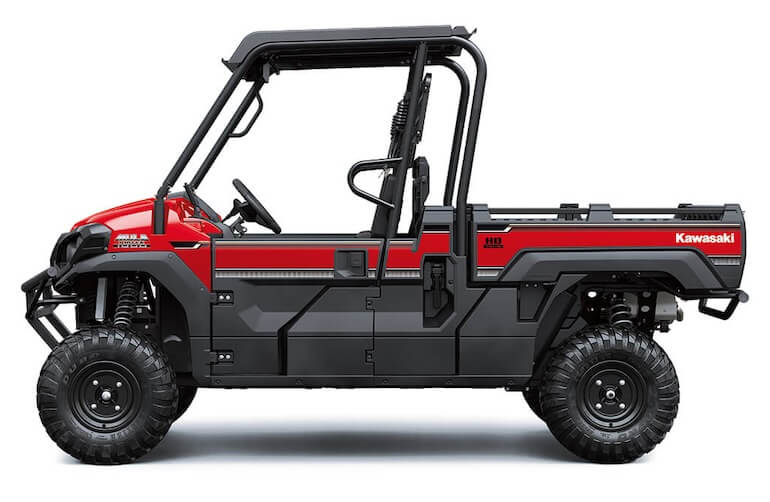

Kawasaki Mule PRO FX 1000 Dimensions
| Overall Length | 136.6 in (347.0 cm) |
| Overall Width | 64.0 in (162.6 cm) |
| Overall Height | 81.1 in (206.0 cm) |
| Wheelbase | 92.3 in (234.5 cm) |
| Ground Clearance | 11.9 in (30.2 cm) max, 11.8 in (30.0 cm) std |
| Turning Radius | 16.0 ft (4.9 m) |
| Curb Weight | 1,891.9 lb (857.9 kg) / 1,894.1 lb (859.0 kg) CA Model |

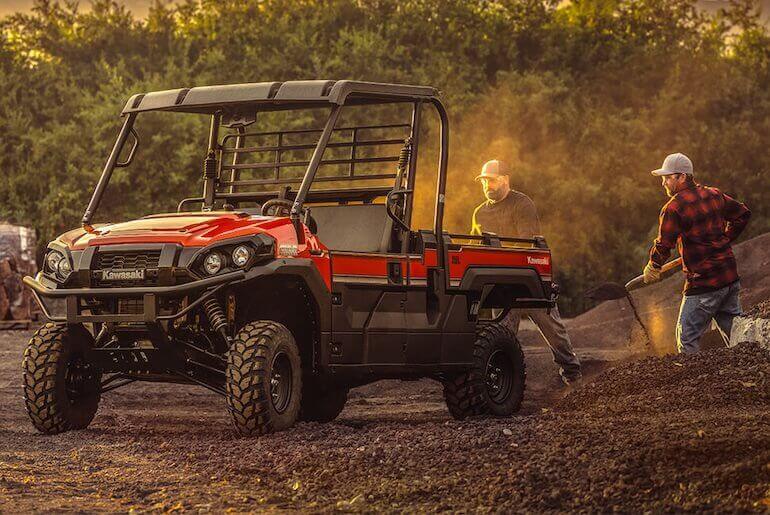

Kawasaki Mule PRO FX 1000 Capacities

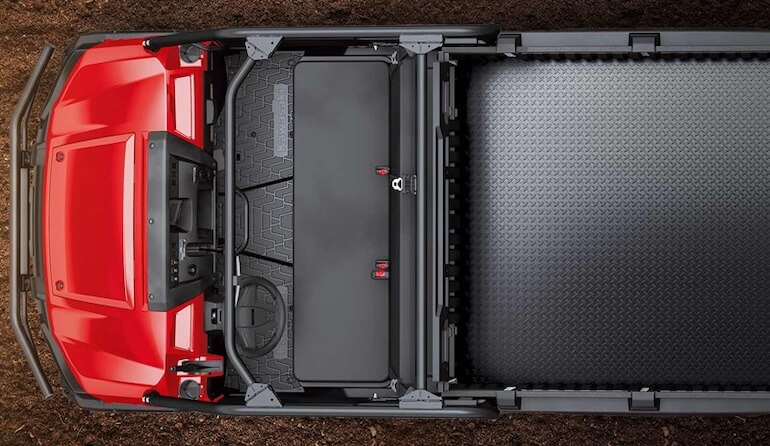

| Cargo Bed Length | 54.1 in (137.4 cm) |
| Cargo Bed Width | 53.3 in (135.4 cm) |
| Cargo Bed Height | 11.0 in (28.0 cm) |
| Cargo Bed Load Capacity | 999 lb (453.6 kg) / 600.0 lb (272.2 kg) CA Model |
| Payload Capacity | 1,616.3 lb (733.2 kg) / 1,263.5 lb (573.2 kg) CA Model |
| Towing Capacity | 2,000 lb (907.2 kg) |
| Seating Capacity | 3 |

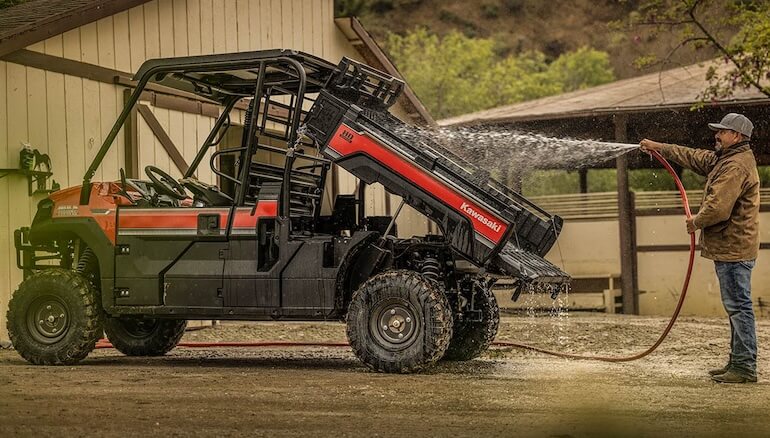

The Mule PRO FX 1000 is designed with versatility in mind, offering a spacious and durable cargo bed with a load capacity of up to 1,000 pounds.
This makes it perfect for a wide range of tasks, from agricultural work and construction to landscaping and recreational use. The vehicle’s high towing capacity further enhances its utility, allowing you to tow trailers and other equipment effortlessly.
Kawasaki Mule PRO FX 1000 UTV Features
Safety is paramount in the design of the Mule PRO FX 1000. The vehicle is equipped with a rollover protective structure (ROPS) to protect occupants in case of an accident. The braking system, consisting of hydraulic disc brakes, provides reliable stopping power, enhancing overall safety.

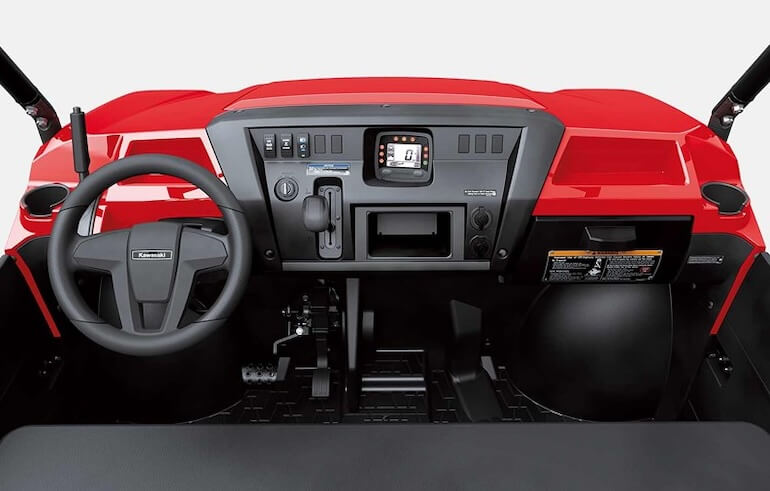

| Dashboard | Multi-function display includes digital speedometer, fuel gauge, odometer, hour meter, clock, dual trip meters, 2WD/4WD indicator, water temperature warning indicator, oil pressure warning indicator, fuel injection warning indicator, CVT warning indicator, neutral, reverse and parking indicators, seatbelt reminder lamps |
| Additional Features | Roof, Rear Bumper, Additional Under Seat Storage Bin, Rearview Mirror, Hydraulic Cargo Bed Lift, Self-Leveling Rear Suspension, Anti-cinch Seatbelts |
| Lighting | 2x halogen headlights. 2x LED headlights |
| Colors | Firecracker Red |
Furthermore, the Mule PRO FX 1000 is built with Kawasaki’s renowned attention to detail and quality, ensuring reliability and reducing maintenance needs.
The Mule PRO FX 1000 is an ideal choice for professionals in agriculture, construction, landscaping, and other industries that require a dependable and versatile utility vehicle.
Its robust performance and large cargo capacity make it well-suited for transporting tools, materials, and equipment. Additionally, outdoor enthusiasts will appreciate its ability to handle recreational activities such as hunting, camping, and off-road adventures.
In conclusion, the Kawasaki Mule PRO FX 1000 utility vehicle combines power, versatility, and durability in a well-designed package. It is built to handle the toughest tasks and the most demanding environments, making it an invaluable asset for both work and play. Whether you’re navigating challenging terrain or transporting heavy loads, the Mule PRO FX 1000 delivers exceptional performance and reliability every time.
