The Kawasaki Mule PRO FXR UTV is a top-tier utility vehicle designed for those who demand the best in performance, comfort, and versatility. This powerful UTV combines rugged capability with refined style, making it ideal for both work and recreational use.
Built with a focus on durability and convenience, the Mule PRO FXR features a robust 812cc, three-cylinder engine that delivers impressive power and torque, ensuring you can tackle the toughest jobs with ease.
Kawasaki Mule PRO FXR Engine Specs
| Engine Type | 4-stroke, 3-cylinder, DOHC, liquid-cooled, gas |
| Displacement | 49.5 cu in (812 cc) |
| Maximum Torque | 48.0 lb-ft (65 Nm) @ 3,500 rpm |
| Bore x Stroke | 2.83 x 2.62 in (71.9 x 66.5 mm) |
| Compression Ratio | 9.5:1 |
| Alternator Output (max) | 75 amp |
| Fuel System | DFI with 34 mm throttle body |
| Fuel Capacity | 7.9 gal (30 L) |
Mule PRO FXR 1000 Transmission Specs
| Type | CVT with (L,H,N,R) |
| Final Drive | Selectable 2WD/4WD, shaft. Dual mode rear differential with differential lock |
| Front Suspension / Wheel Travel | Double wishbone / 8.7 in |
| Rear Suspension / Wheel Travel | Double wishbone / 8.5 in (L) / 8.7 in (R) |
| Front Tires | 27 x 9.00-12, radial |
| Rear Tires | 27 x 11.00-12, radial |
| Steering | Electric Power Steering (EPS), Tilt steering |
| Front Brakes | Dual Disc, 2 piston caliper |
| Rear Brakes | Dual Disc, 1 piston caliper |
| Park Brake Type | Independent, Mechanical Disc |

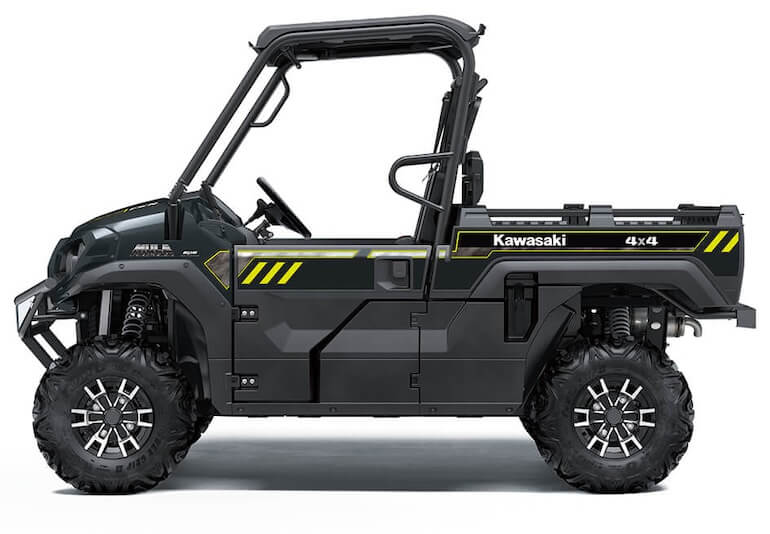

Kawasaki Mule PRO FXR 1000 Dimensions
| Overall Length | 121.5 in (308.6 cm) |
| Overall Width | 64.0 in (162.6 cm) |
| Overall Height | 77.2 in (196.1 cm) |
| Wheelbase | 79.7 in (202.5 cm) |
| Ground Clearance | 10.8 in (27.4 cm) |
| Turning Radius | 14.0 ft (4.3 m) |
| Curb Weight | 1,768.4 lb (802.3 kg) |

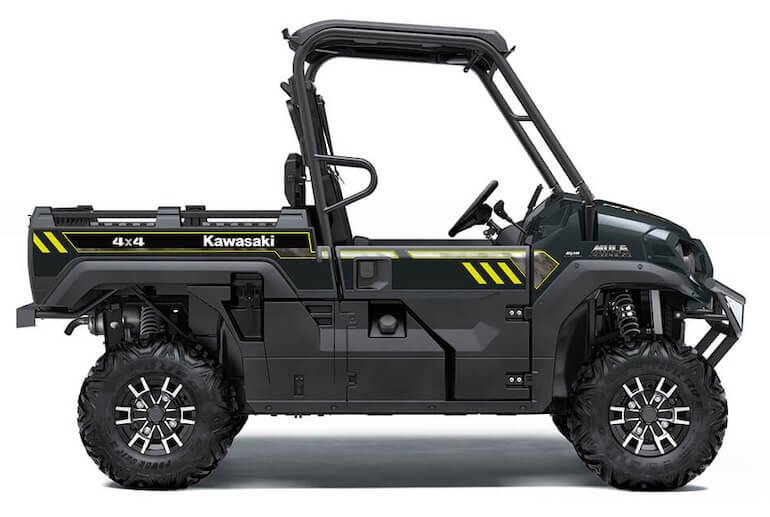

Kawasaki Mule PRO FXR 1000 UTV Capacities

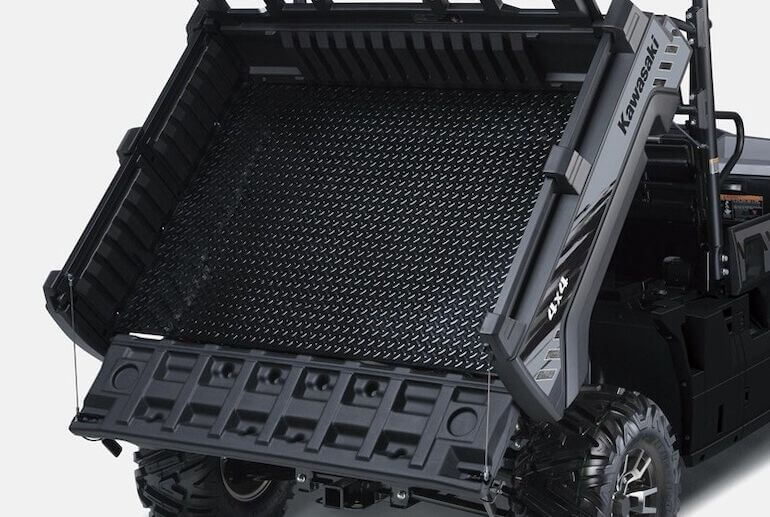

| Cargo Bed Length | 37.6 in (95.5 cm) |
| Cargo Bed Width | 53.3 in (135.4 cm) |
| Cargo Bed Height | 11.0 in (28.0 cm) |
| Cargo Bed Load Capacity | 999 lb (453.6 kg) / 600.0 lb (272.2 kg) CA Model |
| Payload Capacity | 1,616.3 lb (733.4 kg) / 1,263.5 (573.3 kg) for CA Model |
| Towing Capacity | 2,000 lb (907.2 kg) |
| Seating Capacity | 3 |
The Mule PRO FXR’s compact size and tight turning radius make it exceptionally maneuverable, perfect for navigating through narrow trails or tight workspaces.
Its advanced suspension system provides a smooth ride, even on rough terrain, while the spacious cab offers comfortable seating and easy access to controls.
Kawasaki Mule PRO FXR 1000 Features

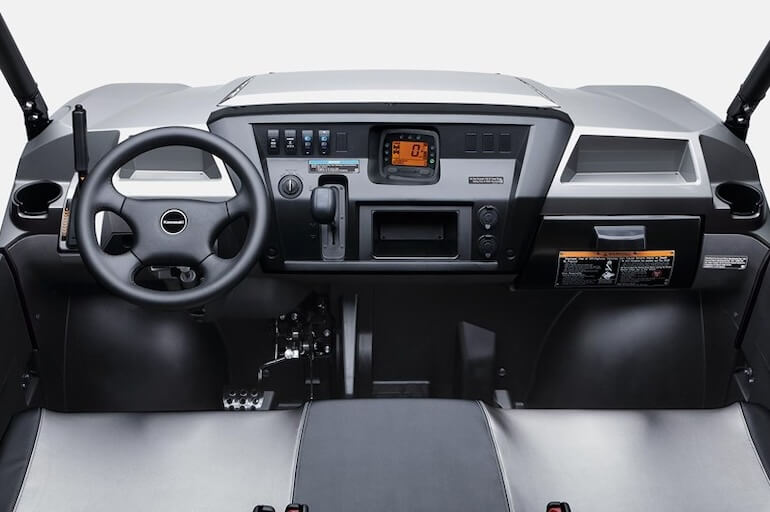

| Dashboard | Multi-function display includes digital speedometer, 2WD/4WD indicator, fuel gauge, odometer, CVT and EPS warning indicators, hour meter, clock, dual trip meters, water temperature warning indicator, oil pressure warning indicator, fuel injection warning indicator, neutral, reverse and parking indicators, seatbelt reminder lamps |
| Additional Features | Roof, Rear Bumper, Contoured Two-Tone Bench Seat |

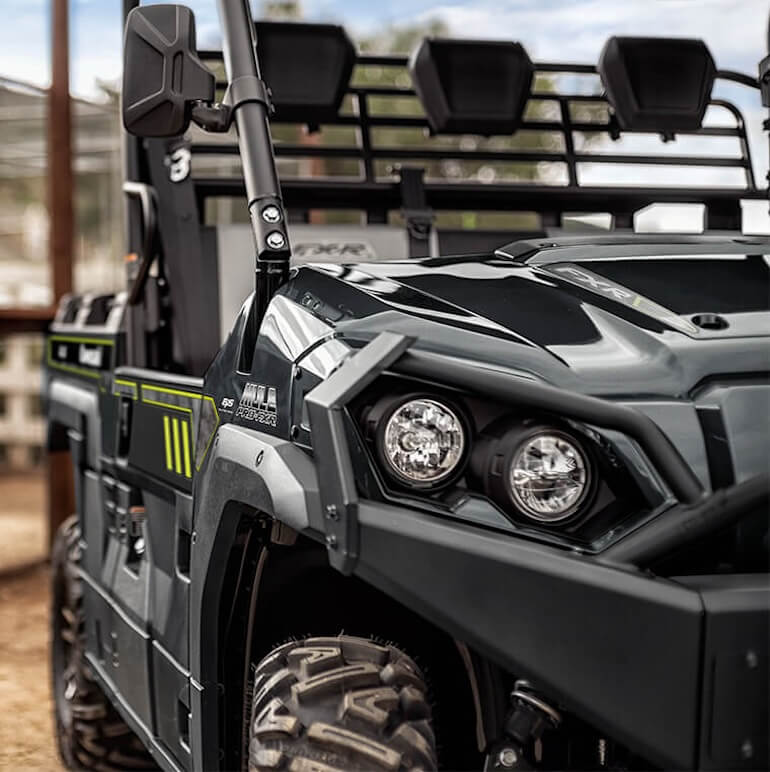

| Lighting | 2x halogen headlights. 2x LED headlights |
| Colors | Metallic Carbon Gray |
With a cargo bed that can handle heavy loads and a towing capacity that meets the demands of any task, the Mule PRO FXR is the ultimate partner for your outdoor adventures or job site needs.
Whether you’re hauling equipment, transporting passengers, or exploring off-road trails, the Kawasaki Mule PRO FXR UTV is engineered to deliver performance, reliability, and comfort in every situation.
