The Kawasaki Mule SX 4×4 XC / 4×4 XC LE are the pinnacle of the Mule SX series, designed to deliver exceptional performance and versatility in a compact package. These utility vehicles are built to tackle challenging terrains while providing a comfortable and reliable experience for both work and recreational activities. The selectable 2WD/4WD system ensures superior traction and control, allowing these models to navigate through mud, snow, and rugged trails with ease. The CVT (Continuously Variable Transmission) with dual-mode rear differential adds to their versatility, providing smooth acceleration and deceleration.
The Mule SX 4×4 XC Series are perfect for a variety of tasks, including light agricultural work, groundskeeping, construction site duties, and recreational activities. Their compact size and exceptional maneuverability make them suitable for use in tight and confined spaces, while their powerful engine and 4WD capabilities allow them to tackle challenging terrains effortlessly.
Mule SX 4×4 XC / 4×4 XC LE Engine Specs
Both the Mule SX 4×4 XC and XC LE are powered by a robust 401cc air-cooled, 4-stroke engine, offering dependable power for various tasks.
| Model | Mule SX 4×4 XC | Mule SX 4×4 XC LE |
|---|---|---|
| Engine | 4-stroke, single-cylinder, OHV, air-cooled | 4-stroke, single-cylinder, OHV, air-cooled |
| DISPL | 24.5 cu in (401 cc) | 24.5 cu in (401 cc) |
| Maximum Torque | 21.4 lb-ft (29 Nm) @ 2,400 rpm | 21.4 lb-ft (29 Nm) @ 2,400 rpm |
| Bore x Stroke | 82 x 76 mm | 82 x 76 mm |
| Compression Ratio | 8.6:1 | 8.6:1 |
| Fuel System | Fuel Injection | Fuel Injection |
| Alternator Output (max) | 22.9 amp | 22.9 amp |

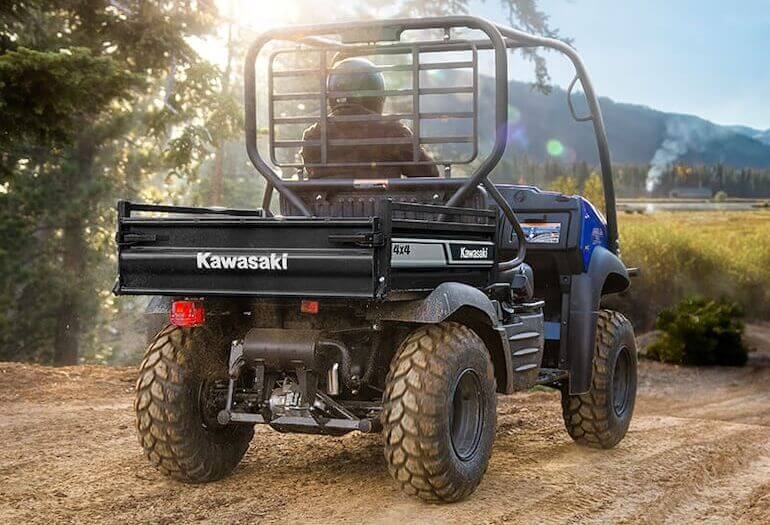

Kawasaki Mule SX 4×4 XC LE Transmission
| Model | Mule SX 4×4 XC | Mule SX 4×4 XC LE |
|---|---|---|
| Type | CVT with (H,L,N,R) | |
| Final Drive | Selectable 2WD/4WD, shaft. Dual mode rear differential with differential lock | |
| Front Suspension / Wheel Travel | MacPherson Strut / 3.1 in | Unit Swingarm / 3.1 in |
| Rear Suspension / Wheel Travel | Unit Swingarm / 3.1 in | Unit Swingarm / 3.1 in |
| Front Tires | 26 x 9-12 | 26 x 9-12 |
| Rear Tires | 26 x 9-12 | 26 x 9-12 |
| Steering | Rack-and-pinion | |
| Park Brake Type | Independent, mechanical drum | |
| Front Brakes | Drum | |
| Rear Brakes | Drum | |

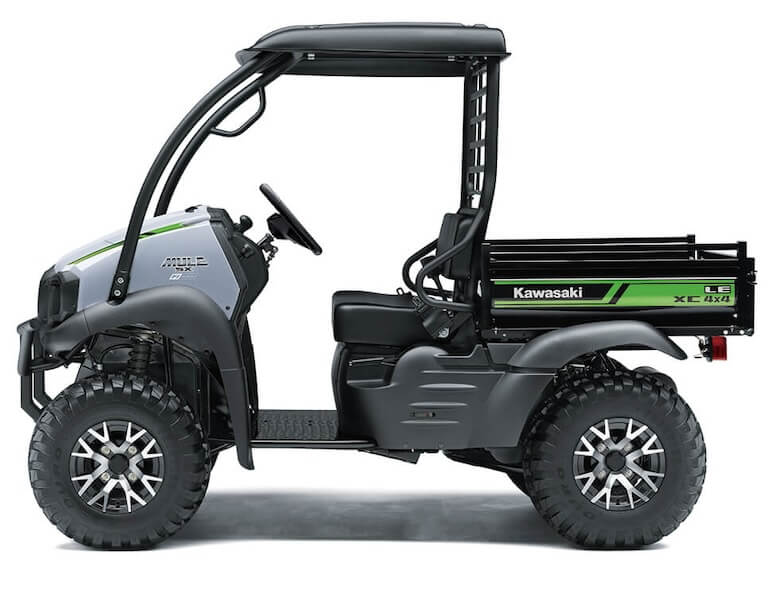

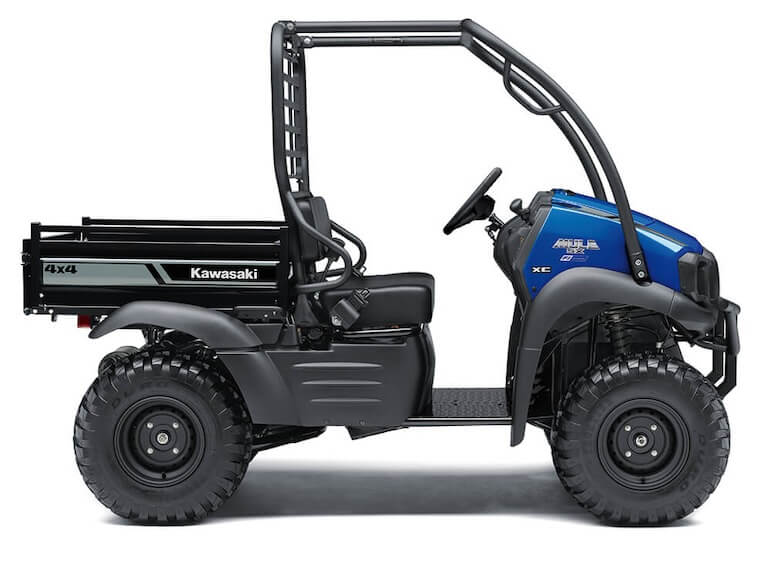

Kawasaki Mule SX 4×4 XC LE Dimensions
The compact size of the Mule SX 4×4 XC / XC LE makes them highly maneuverable, perfect for tight spaces and narrow trails. Despite their small footprint, these models boast a rugged build that can withstand the rigors of tough working conditions. The durable chassis and suspension system ensure a stable and comfortable ride over rough terrain.
| Model | Mule SX 4×4 XC | Mule SX 4×4 XC LE |
|---|---|---|
| Overall Length | 106.7 in (271 cm) | 106.7 in (271 cm) |
| Overall Width | 52.6 in (134 cm) | 52.6 in (134 cm) |
| Overall Height | 73.4 in (186.4 cm) | 75.0 in (190.5 cm) |
| Wheelbase | 70.1 in (178 cm) | 70.1 in (178 cm) |
| Ground Clearance | 8.1 in (20.6 cm) | 6.7 in (17.0 cm) |
| Turning Radius | 11.8 ft (3.6 m) | 11.8 ft (3.6 m) |
| Curb Weight | 1,082.7 lb (491.1 kg) | 1,098.1 lb (498.0 kg) |

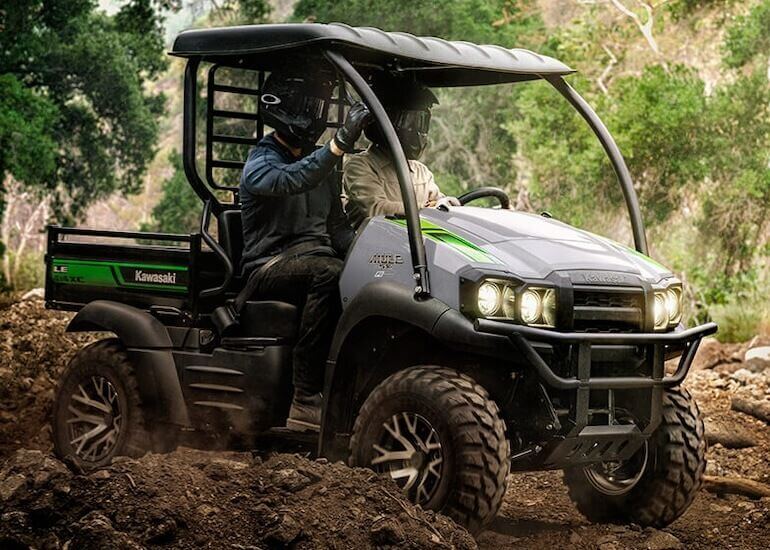

Kawasaki Mule SX 4×4 XC LE Capacities
Designed for a wide range of applications, the Mule SX 4×4 XC are equipped with a cargo bed capable of carrying up to 400 lbs. This makes them ideal for transporting tools, supplies, and equipment.
Whether you’re working on a farm, maintaining grounds, or exploring off-road trails, these utility vehicles provide the versatility and convenience needed to get the job done efficiently.
| Model | Mule SX 4×4 XC | Mule SX 4×4 XC LE | |
|---|---|---|---|
| Cargo Bed Length | 35.6 in (90.4 cm) | 35.6 in (90.4 cm) | |
| Cargo Bed Width | 40.9 in (103.9 cm) | 40.9 in (103.9 cm) | |
| Cargo Bed Height | 9.6 in (24.4 cm) | 9.6 in (24.4 cm) | |
| Cargo Bed Load Capacity | 399 lb (180.9 kg) | 399 lb (180.9 kg) | |
| Payload Capacity | 900 lb (408.2 kg) | 884 lb (400.9 kg) | |
| Towing Capacity | 1,100 lb (498.9 kg) | 1,100 lb (498.9 kg) | |
| Seating Capacity | 2 | 2 | |
| Fuel Capacity | 4.2 gal (15.9 L) | ||
The Mule SX 4×4 XC LE model takes comfort and convenience to the next level with premium features. It includes a sun top for protection against the elements, LED headlights for enhanced visibility, and a high-back bench seat for added comfort during long hours of operation. Both models feature an easy-to-read digital display, convenient storage compartments, and comfortable seating for two passengers.
Kawasaki Mule SX 4×4 XC LE UTV Features
| Model | Mule SX 4×4 XC | Mule SX 4×4 XC LE |
|---|---|---|
| Dash | Fuel gauge, hour meter, oil temp light, parking brake light | |
| Lighting | 2x halogen headlights, 2x tail/brake lights | 4x LED headlights, tail/brake lights |
| Colors | Metallic Sierra Blue | Ice Gray |
| Add-ons | N/A | Roof, Under Seat Storage, LED Headlights, Painted Body Panels |
Safety is a priority with the Mule SX 4×4 XC Series. Both models come with a roll-over protective structure (ROPS) to ensure the safety of the occupants. The durable construction and reliable components reduce maintenance needs and enhance the overall lifespan of the vehicles, providing long-term value to the owners.
In summary, the Kawasaki Mule SX 4×4 XC / XC LE utility vehicles offer a blend of power, durability, and comfort in a compact design. These models are built to handle tough tasks and rough terrains, making them a reliable and versatile choice for both work and play.
