The Kubota RTV-X Full-Size Diesel Utility Vehicle is the epitome of rugged durability and reliable performance, designed to tackle the toughest tasks and terrains with ease. Engineered with a powerful Kubota D1105-E4-UV engine, this utility vehicle features a 3-cylinder, 4-cycle diesel engine that delivers an impressive 24.8 horsepower, ensuring robust performance for a wide range of applications.
Equipped with a variable hydro transmission (VHT-X) and a Hi-Lo range gear selection, the RTV-X offers smooth and versatile driving capabilities. Its advanced 4WD system, combined with a limited-slip front differential and a foot-operated rear differential lock, provides exceptional traction and control on uneven and slippery surfaces. The vehicle’s hydrostatic power steering ensures precise handling, making it easy to maneuver in tight spaces and challenging conditions.
Kubota RTV-X UTV Diesel Engine Specs
| Engine Model | Kubota D1105-E4-UV |
| Engine Type | 3-cylinders, 4-cycle, diesel, OHV |
| Displacement | 67.1 cu.in. (1,100 cc) |
| Engine Power | 24.8 hp (18.5 kW) @ 3000 rpm |
| Cooling System | Liquid |
| Fuel Tank Capacity | 7.9 gal (30 L) |
Kubota RTV-X UTV Transmission + Drive System
| Transmission | Variable hydro transmission (VHT-X) |
| Gear Selection | Hi-Lo range forward, neutral, reverse |
| 4WD System | Standard |
| Front Differential | Limited-slip differential |
| Rear Differential | Foot operated differential lock |
| Max Speed | 25 mph (40 km/h) |
Kubota RTV-X Utility Vehicle Dimensions
| Basic | Standard | Premium | |
|---|---|---|---|
| Length | 120.3 in (3055 mm) | 122.4 in (3,110 mm) | 122.9 in (3,121 mm) |
| Width | 63.2 in (1,605 mm) | ||
| Height, Overall | 79.5 in (2,020 mm) | ||
| Wheelbase | 80.5 in (2,045 mm) | ||
| Turning Radius | 13.1 ft (4.0 m) | ||
| Ground Clearance | 10.5 in (266 mm) | ||
| Bed Height (Unloaded) | 34.9 in (887 mm) | ||
| Front Tread Centers | 48.8 in (1,240 mm) | ||
| Rear Tread Centers | 48.8 in (1,240 mm) | ||
| Weight | 2,050 lb (930 kg) | 2,072 lb (940 kg) | 2,099 lb (952 kg) |
| Color | Orange | Orange, Camo | Orange, Camo, Desert Sand |
| Spray-on Bed Liner | Not available | (Orange) Available, (Camo) Standard | Standard |
| Tires (Front) | 25 × 10-12, 6-ply | ||
| Tires (Rear) | 25 × 10-12, 6-ply | ||
| Alloy Wheels | Option | Option | (Orange, Camo) Available, (Desert Sand) Standart |
Kubota RTV-X Cargo Box (Frame) Specs
| Cargo Bed Material | Steel |
| Bed Width | 57.7 in (1,465 mm) |
| Bed Length | 40.5 in (1,030 mm) |
| Bed Depth | 11.2 in (285 mm) |
| Volume | 15.2 cu.ft. (0.43 m3) |
| Payload Capacity | 1,102 lb (500 kg) |
| Towing Capacity | 1,300 lb (590 kg) |
| Hydraulic Bed Lift | Option for Basic Model / Standart for RTV-X Premium and Standard Models |
Kubota RTV-X Suspension, Brakes & Steering
| Front Suspension | Independent, Dual A-arms with adjustable spring preload |
| Rear Suspension | Independent with coil over shock |
| Front Suspension Travel | 8 in (205 mm) |
| Rear Suspension Travel | 8 in (205 mm) |
| Brakes | Wet-disk brakes |
| Parking Brake | Rear wheel, hand operated |
| Steering | Hydrostatic power steering |
Kubota RTV-X Safety Specifications
| Occupant Protective System (OPS) | 2.0 in (50.8 mm) steel tube |
| Seat Belts | 2-point |
| Certification | SAE J2194 and OSHA 1928 ROPS |
| Headlights | LED (High/Low) |
| Sound Rating at Operator’s Ear at Max RPM | 84 db(A) |
The Kubota RTV-X is built for heavy-duty use, featuring a sturdy steel cargo bed with a payload capacity of 1,102 lbs (500 kg) and a towing capacity of 1,300 lbs (590 kg). The hydraulic bed lift, standard on most models, enhances convenience when loading and unloading heavy materials. The vehicle’s independent suspension system with dual A-arms and adjustable spring preload ensures a smooth ride, while the wet-disk brakes offer reliable stopping power.

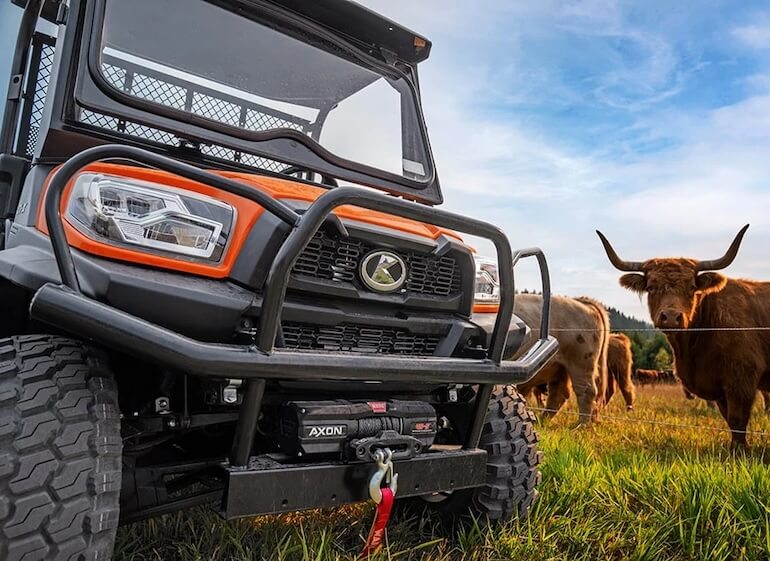

Kubota RTV-X Attachments & Add Ons
- Commercial HD Front 72” Straight & V-Blade;
- General Duty Front 72” Straight Blade;
- Laminated Glass Windshield (AS1);
- Metal FOPS Canopy (Black);
- Warn VRX Winch Kit (3,500 lb, Steel Cabl)
- Tail Lamp Guards.

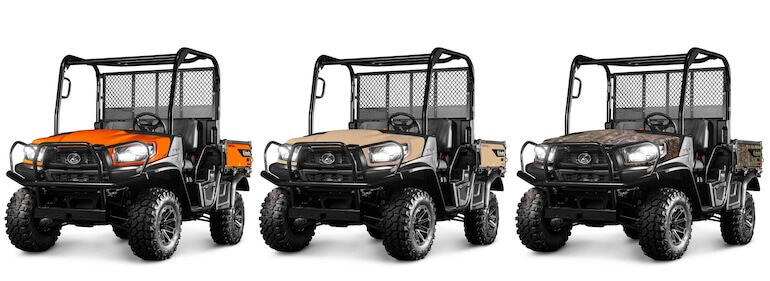

Designed with operator safety and comfort in mind, the RTV-X includes a 2-point seat belt system and a robust occupant protective system (OPS) certified to SAE J2194 and OSHA 1928 ROPS standards. The spacious cabin, available in a variety of colors including Orange, Camo, and Desert Sand, provides a comfortable and ergonomic environment for long hours of operation.
With LED headlights for enhanced visibility, a sound rating of 84 dB(A) at the operator’s ear, and a fuel tank capacity of 7.9 gallons (30 liters), the Kubota RTV-X is designed to perform efficiently and comfortably in any environment.
The Kubota RTV-X Full-Size Diesel Utility Vehicle is the ultimate choice for those seeking a dependable, high-performance utility vehicle that excels in demanding work environments. Whether for agricultural, industrial, or recreational use, the RTV-X delivers unmatched versatility, durability, and efficiency.
