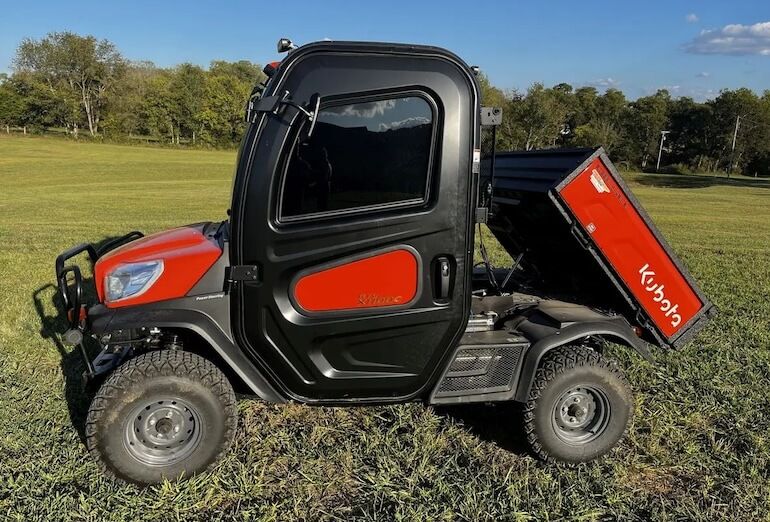

The Kubota RTV-X1100C is the epitome of durability, comfort, and performance in the world of utility vehicles. Designed for rigorous tasks in diverse terrains, the RTV-X1100C UTV offers a robust combination of power, advanced features, and superior build quality, making it a top choice for both professional and recreational use.

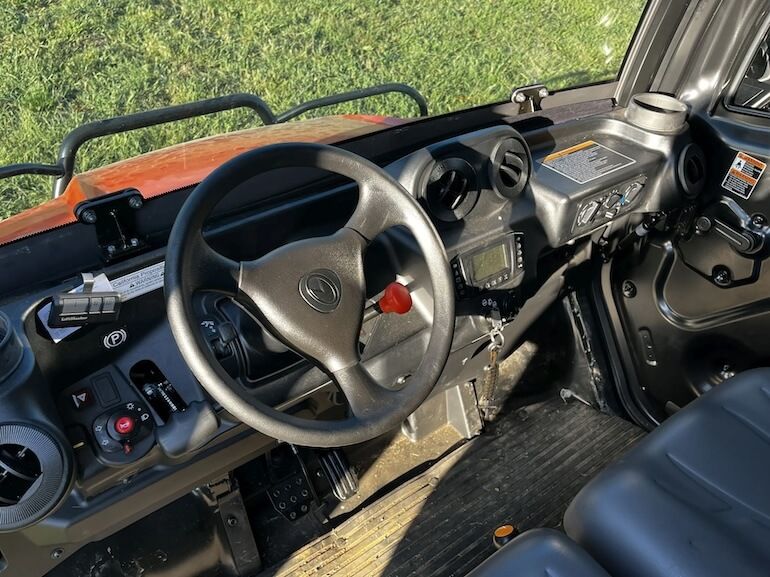

The RTV-X1100CFull-Size Utility Vehicle features an enclosed cab with climate control, providing a comfortable environment for the operator in all weather conditions. The ergonomic design includes easy-to-use controls and ample space for enhanced operator comfort during long hours of operation.
Kubota RTV-X1100C UTV Engine Specs
Equipped with a reliable and powerful KUBOTA D1105-E4-UV, 3-cylinder, 4-cycle, diesel, OHV engine, the RTV-X1100C delivers exceptional performance with a displacement of 68.5 cu.in (1123 cc) and 24.8 horsepower at 3000 rpm. This ensures the vehicle can handle heavy loads and challenging terrains with ease.
| Engine Model | KUBOTA D1105-E4-UV |
| Engine Type | 3-cyl, 4-cycle, diesel, OHV |
| Displacement | 68.5 cu.in (1,123 cc) |
| Horsepower | 24.8 hp (18.5 kW) @ 3000 rpm |
| Cooling system | Liquid |
| Battery Ah, CCA | 670 CCA |
Kubota RTV-X1100C Transmission Specs
The Variable Hydro Transmission (VHT-X) with Hi-Lo range gear selection ensures smooth and efficient power delivery, while the 4-wheel drive system and limited-slip differential provide excellent traction and control.
| Max Speed | 25 mph (40 km/h) |
| Transmission | Variable hydro transmission (VHT-X) |
| Gear selection | Hi-Lo range forward, neutral, reverse |
| 4WD Front Differential | Limited-slip differential |
| 4WD Rear Differential | Foot operated differential lock |
| Steering | Hydrostatic power |
| Front / Rear Brakes | Wet-disc brakes |
| Parking Brake | Rear wheel, hand operated |

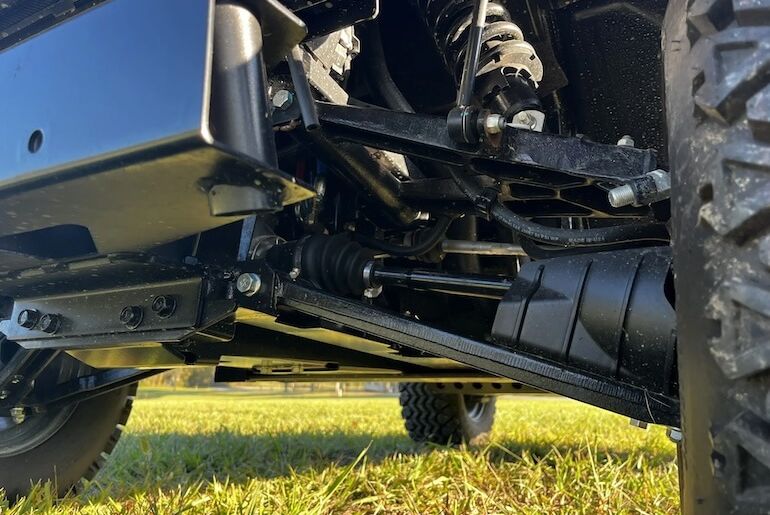

| Front Suspension | 8 in (205 mm) Independent, Dual A-arms with adjustable spring preload |
| Rear Suspension | 8 in (205 mm) Independent with coil over shock |

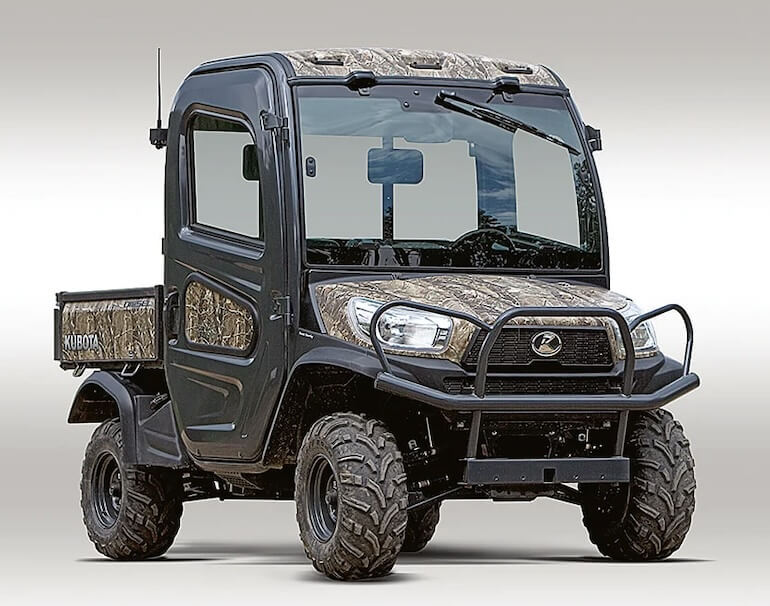

Kubota RTV-X1100C Dimensions
| Length | 122.5 in (3110 mm) |
| Width | 63.2 in (1605 mm) |
| Height, overall | 79.5 in (2020 mm) |
| Wheelbase | 80.5 in (2045 mm) |
| Ground Clearance (Front) | 11.2 in (285 mm) |
| Ground Clearance (Rear) | 9.4 in (240 mm) |
| Turning radius | 13.1 ft (4.0 m) |
| Weight | 2370 lb (1075 kg) |
RTV-X1100C Capacities & Cargo Bed Specs
With a payload capacity of 1,629 lbs (739 kg) and a towing capacity of 1,300 lbs (590 kg), the Kubota RTV-X1100C is well-suited for transporting heavy loads. The cargo bed, made of durable steel, measures 40.5 x 57.5 x 11.2 inches, providing ample space for various types of cargo.
| Hydraulic Bed Lift | Standart |
| Cargo Bed Material | Steel |
| Cargo Bed Width | 57.7 in (1465 mm) |
| Cargo Bed Leight | 40.5 in (1030 mm) |
| Cargo Bed Height | 34.9 in (887 mm) |
| Cargo Bed Dept | 11.2 in (285 mm) |
| Cargo Bed Volume | 15.2 cu. ft. (0.43 m3) |
| Cargo Bed Load | 1,102 lb (500 kg) |

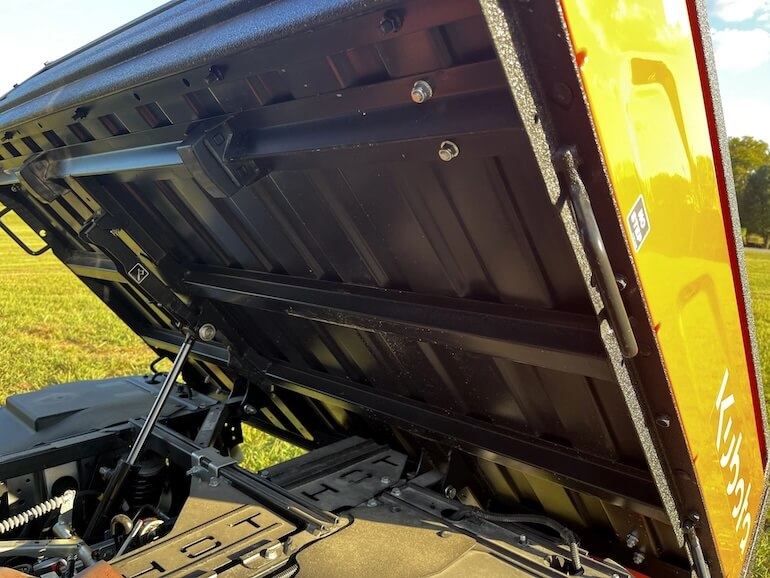

| Dumping System | Hydro power lift |

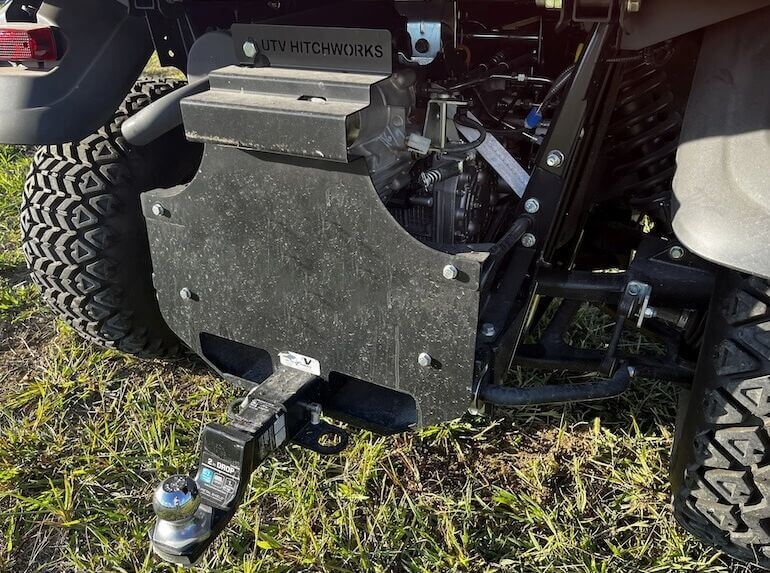

| Towing capacity | 1,300 lb (590 kg) |
| Payload capacity | 1,629 lb (739 kg) |
| Fuel tank capacity | 7.9 gal (30 L) |
| Tires ATV | 25 x 10-12, 6-ply |
| Tires HDWS | 25 x 10-12, 6-ply (optional) |
| Tires TURF | 25 × 10-12, 4-ply (Optional) |
| Alloy wheel (not available with Turf tire) | Optional or Standart (Orange) / Optional (Camo model) |

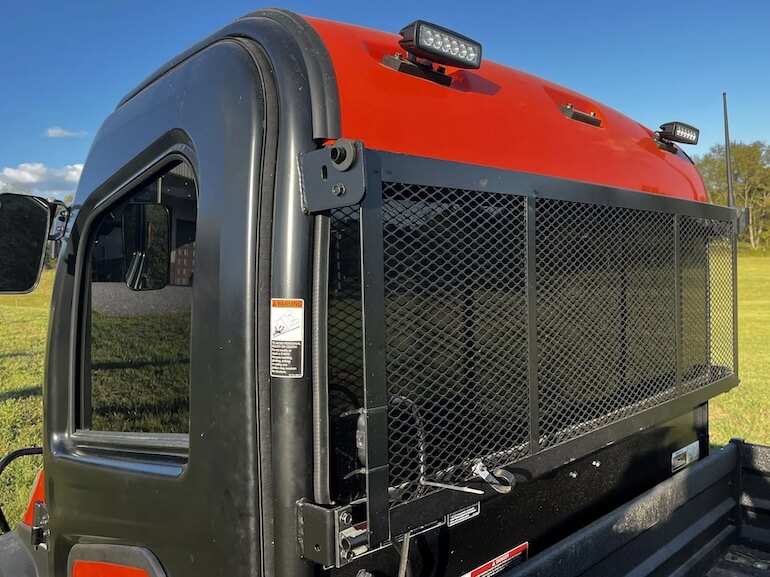

Kubota RTV-X1100C Safety & OPS
Built with a robust steel frame and reinforced components, the RTV-X1100C Full-Size UTV is designed to withstand tough working conditions. It also meets SAE J2194 and OSHA ROPS standards, ensuring maximum safety for the operator.
| Headlights | 2x 37.5 Watt halogen |
| ROPS Structure | 2.4 x 2.4 in (61 x 61 mm) Formed steel tube |
| Seat belts | 2-point |
| Occupant Protective System Certification | SAE J2194 and OSHA 1928 ROPS |
| Sound rating at operator’s ear db(A) | 83 |
| Front guard design | Center and bumper and lens |
The vehicle includes modern features such as LED headlights, a sound-rated cabin at 84 dB(A), and optional electric hydraulic power lift for the cargo bed, enhancing both functionality and operator comfort.

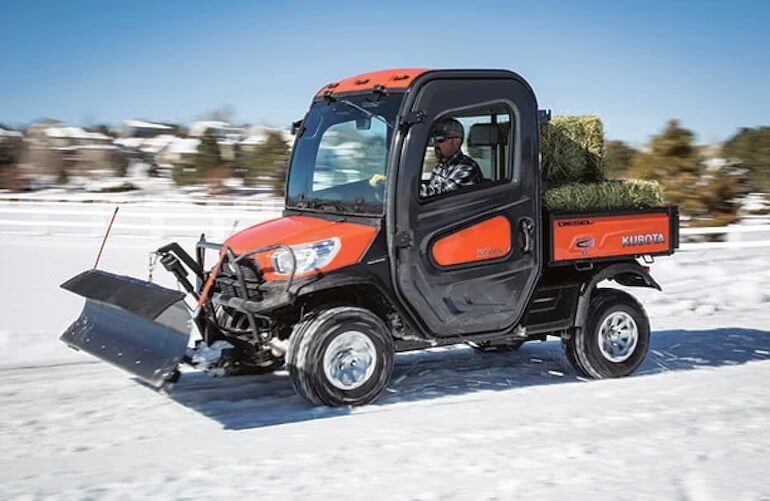

Whether you are navigating through rugged landscapes, managing agricultural tasks, or performing maintenance in challenging environments, the Kubota RTV-X1100C Full-Size Utility Vehicle is engineered to meet your demands with reliability and efficiency.
