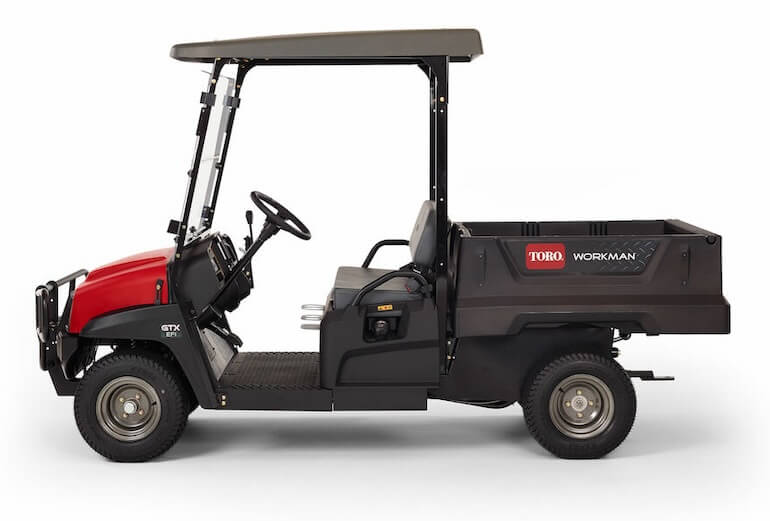

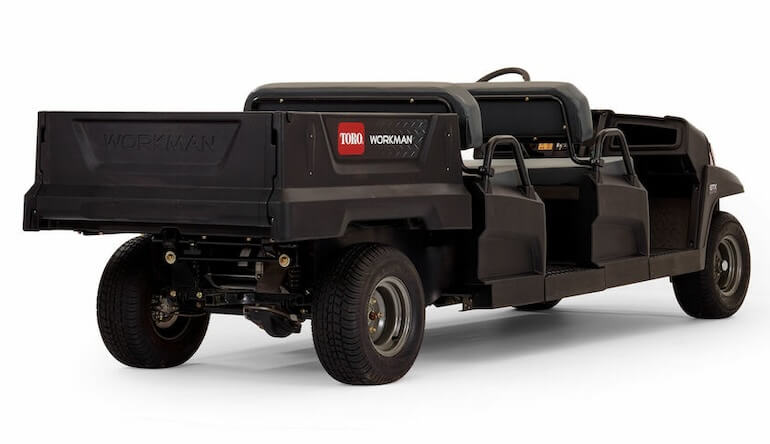

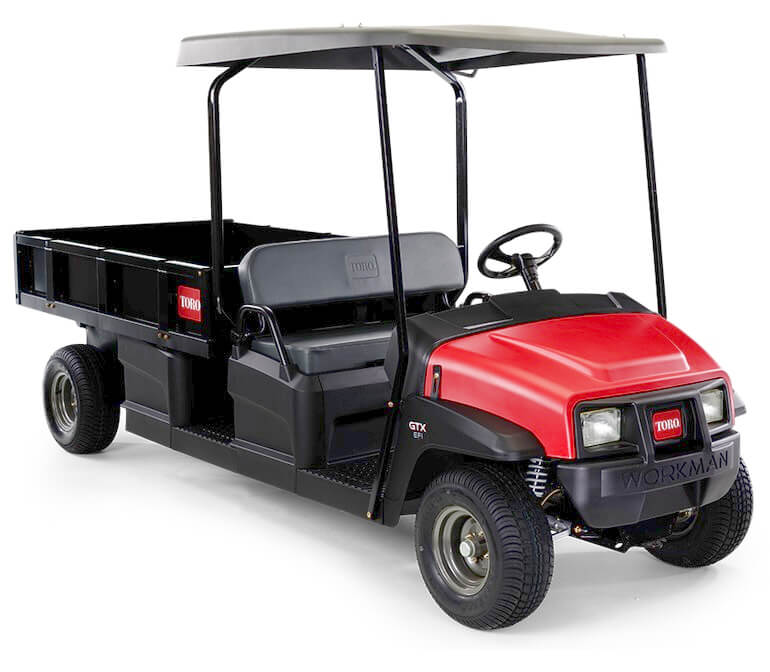

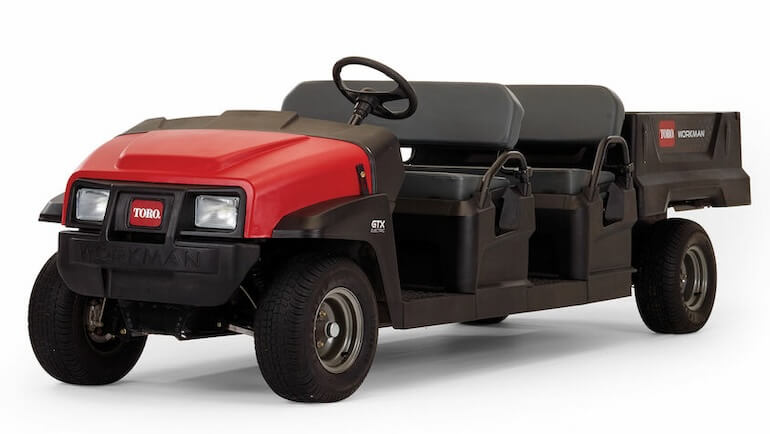

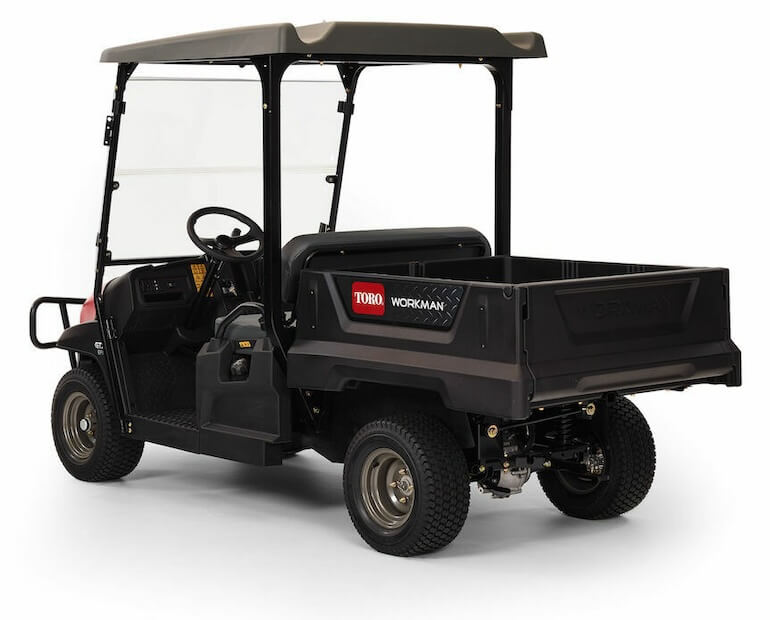

The Toro Workman® GTX Series represents the latest in utility vehicle technology, offering versatile and robust solutions for various tasks and terrains. Available in both gas and electric models, the Workman® GTX Series provides exceptional power, reliability, and efficiency. Whether you need a standard, extended, or lifted configuration, these utility vehicles are designed to meet the demands of professional groundskeepers, landscapers, and maintenance crews.
With advanced features such as powerful engines, comfortable seating, and impressive towing and cargo capacities, the Workman® GTX Series ensures you have the right tool for the job, every time. The Toro Workman® GTX Series UTVs are engineered for both performance and comfort, making them ideal for diverse applications, from transporting materials and equipment to maintaining large properties and recreational areas. The series includes six distinct models with various configurations, such as standard, extended, and lifted, to cater to specific needs.
Toro Workman GTX Drivetrain Specs
Choose between robust gas-powered engines or eco-friendly electric motors, providing flexibility based on your operational requirements and environmental considerations.

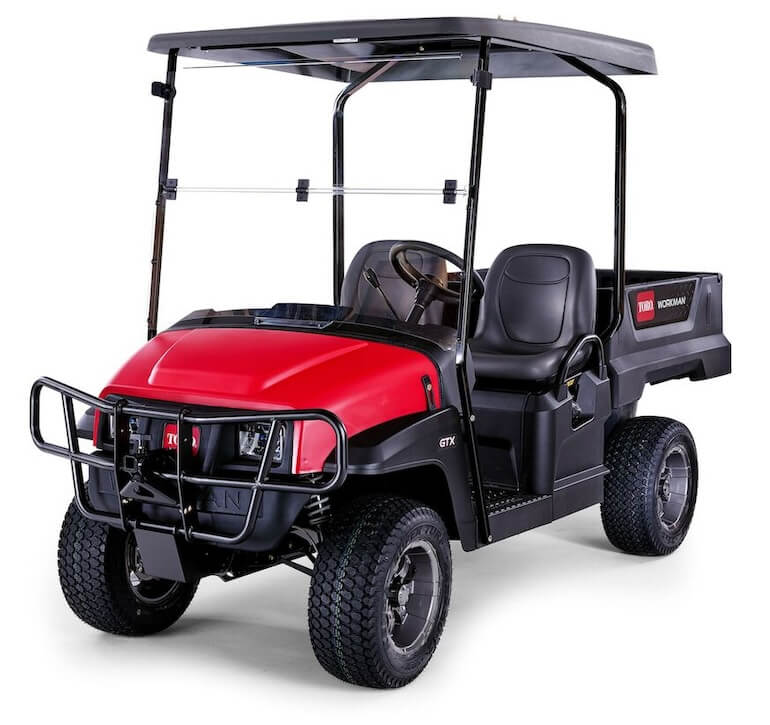

| Spec / Model | Workman GTX (GAS EFI): 07409, 07411EX | Workman GTX LIFTED (GAS EFI): 07059LT | Workman GTX (ELECTRIC): 07410, 07412EX |
|---|---|---|---|
| Power System | Kohler EFI 429 cc (26.2 cu in) gasoline engine, air-cooled, single cylinder | Brushless high-torque 48 V AC Induction motor with 5.0 kW continuous power | |
| Emissions | EPA & CARB exhaust and evaporative emissions regulations | N/A | |
| Fuel Capacity | 5 gal (18.9 L) | N/A | |
| Max Speed | 16 mph (25.6 km/h). Speed reduction kits available | 16 mph (25.6 km/h), adjustable | |
| Transaxle | 11.47:1 Forward, 14.35:1 Reverse | 17:1 double-reduction high torque | |
| Battery | 1x 12-volt starter battery | 8x Trojan® T-125 Advanced Deep Cycle 6V batteries featuring a single port fill system and water level indicators | |
| Controller | N/A | 540 amps max with regenerative motor braking, roll-away protection, thermal cutback, sealed/ waterproof, status light and three power modes | |
| Charger | N/A | On-board high efficiency 1 kW smart charger with 85-265 V AC global input, temperature controlled, sealed & waterproof, remote indicator viewable at charge port | |
| Starting | Pedal or key start capability standard | Pedal start | |
Toro Workman GTX Dimensions
| Spec / Model | Workman GTX (GAS EFI): 07409, 07411EX | Workman GTX LIFTED (GAS EFI): 07059LT | Workman GTX (ELECTRIC): 07410, 07412EX |
|---|---|---|---|
| Width | 2-Seat with Bed (Std.): 47 in (119.3 cm) 2-Seat with Bed (Lifted): 47 in (119.3 cm) 4-Seat with Bed (Std.): 47 in (119.3 cm) 2-Seat with 6’ Flat Bed (Std.): 47 in (119.3 cm) |
||
| Length | 2-Seat with Bed (Std.): 119 in (302 cm) 2-Seat with Bed (Lifted): 119 in (302 cm) 4-Seat with Bed (Std.): 144 in (366 cm) 2-Seat with 6’ Flat Bed (Std.): 156 in (396 cm) |
||
| Height | 2-Seat with Bed (Std.): 50.2 in (127 cm) 2-Seat with Bed (Lifted): 53.2 in (135 cm) 4-Seat with Bed (Std.): 50.2 in (127 cm) 2-Seat with 6’ Flat Bed (Std.): 50.2 in (127 cm) |
||
| Wheeldase | 2-Seat with Bed (Std.): 77.8 in (197 cm) 2-Seat with Bed (Lifted): 77.8 in (197 cm) 4-Seat with Bed (Std.): 114 in (290 cm) 2-Seat with 6’ Flat Bed (Std.): 114 in (290 cm) |
||
| Turning Radius | Standard UTV model: turning clearance circle: 20.7 ft (6.3 m), inside turning radius: 60.25 in (153 cm). Extended UTV model: turning clearance circle: 31 ft (9.45 m), inside turning radius: 100 in (254 cm). |
||
| Weight | 2-Seat with Bed: 875 lb (397 kg) 4-Seat with Bed: 1,150 lb (522 kg) 2-Seat with 6’ Flat Bed: 1,264 lb (573 kg) |
2-Seat with Bed: 1,395 lb (633 kg) 4-Seat with Bed: 1,670 lb (757 kg) 2-Seat with 6’ Flat Bed: 1,784 lb (809 kg) |
|

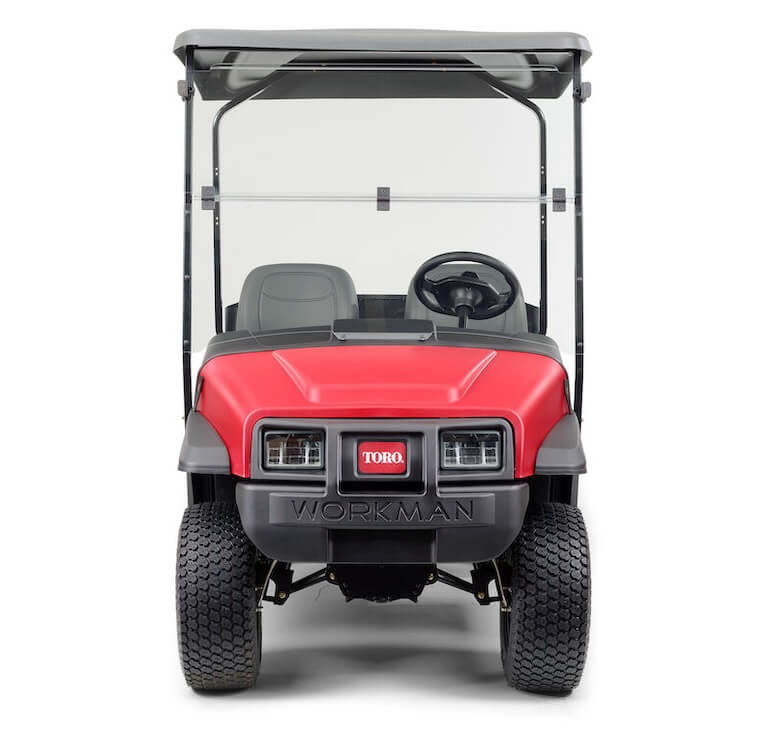

| Ground Clearance | Front: 9 in (22.8 cm), Rear: 6 in (15.2 cm) | Front: 12 in (30.4 cm), Rear: 7 in (17.8 cm) | Front: 9 in (22.8 cm), Rear: 6 in (15.2 cm) |

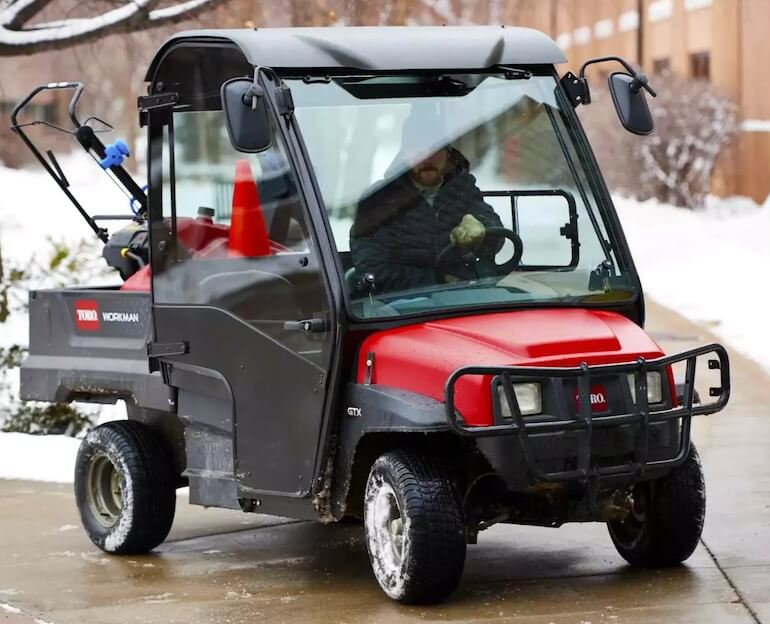

| Cab Dimensions | Height: 79” (201 cm) Width: 56” (142 cm) | Height: 82” (208 cm) Width: 56” (142 cm) | Height: 79” (201 cm) Width: 56 in (142 cm) |
| Canopy Dimensions | Height: 75.2 in (191 cm) Width: 54.3 in (138 cm) | Height: 78.2 in (199 cm) Width: 54.3 in (138 cm) | Height: 75.2 in (191 cm) Width: 54.3 in (138 cm) |
| Cargo Bed Width | 38.5 in (97.8 cm) | ||
| Cargo Bed Length | 40 in (101.6 cm) | ||
| Cargo Bed Height | 11 in (27.9 cm) | ||
Toro Workman GTX Capacities

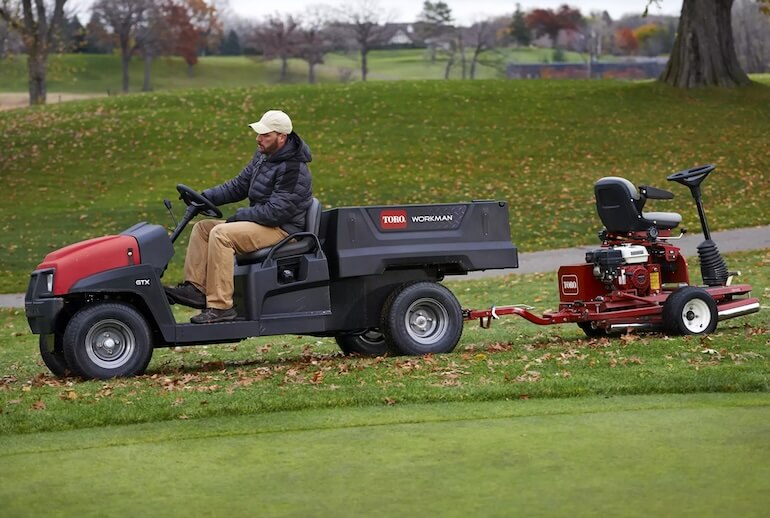

These UTVs offer impressive cargo capacities and towing capabilities, allowing for efficient transport of tools, supplies, and materials.
| Spec / Model | Workman GTX (GAS EFI): 07409, 07411EX | Workman GTX LIFTED (GAS EFI): 07059LT | Workman GTX (ELECTRIC): 07410, 07412EX |
|---|---|---|---|
| Cargo Bed Capacity | 800 lb (363 kg) | ||
| Vehicle Capacity | 2-seat with bed 1,200 lb (544 kg) | ||
| Towing Capacity | 1,500 lb (680 kg) Class 1 – 1.25 in receiver standard | ||
Toro Workman GTX Chassis Specs
Equipped with superior suspension systems and optimized handling characteristics, the Workman® GTX ensures a smooth and stable ride, even on uneven terrain.
| Spec / Model | Workman GTX (GAS EFI): 07409, 07411EX | Workman GTX LIFTED (GAS EFI): 07059LT | Workman GTX (ELECTRIC): 07410, 07412EX |
|---|---|---|---|
| Suspension | FRONT – 3.5 in (9 cm) Modified MacPherson Strut. REAR – 4 in (10 cm) Articulating Swing Arm. Adjustable Coil Over Shocks at all four wheels. |
||
| Brakes | Front and rear wheel hydraulic disc brakes. | ||
| Steering | Manual rack and pinion steering system with ergonomically positioned column. Steering wheel has 2.75 turns lock-to-lock with 13.75 in (35 cm) diameter. | ||
| Turning Radius | Standard UTV model: turning clearance circle: 20.7 ft (6.3 m), inside turning radius: 60.25 in (153 cm). Extended UTV model: turning clearance circle: 31 ft (9.45 m), inside turning radius: 100 in (254 cm). |
||
| Transaxle | 11.47:1 Forward, 14.35:1 Reverse | 17:1 double-reduction high torque. | |
| Ground Clearance | Front: 9 in (22.8 cm), Rear: 6 in (15.2 cm) | Front: 12 in (30.4 cm), Rear: 7 in (17.8 cm) | Front: 9 in (22.8 cm), Rear: 6 in (15.2 cm) |
| Tires | 20 x 8-10, 4-ply. Or alternate 4-ply/6-ply. | 22 x 9.5-12, 4-ply. Or alternate 4-ply/6-ply. | 20 x 8-10, 4-ply. Or alternate 4-ply/6-ply. |
| Wheels | 10″ (25.4 cm) steel | 12″ (30.5 cm) aluminum | 10″ (25.4 cm) steel |
Workman GTX Additional Specifications
With spacious seating, intuitive controls, and ergonomic design, these UTVs prioritize operator comfort and ease of use, reducing fatigue during long working hours. The series incorporates practical features such as easy-to-read instrumentation, ample storage compartments, and versatile accessory options to enhance productivity and convenience.
| Spec / Model | Workman GTX (GAS EFI): 07409, 07411EX | Workman GTX LIFTED (GAS EFI): 07059LT | Workman GTX (ELECTRIC): 07410, 07412EX |
|---|---|---|---|
| Instrument Cluster / Dashboard | Hour meter, fuel gage, USB power port, headlight switch, on/off ignition key switch, horn, gear selector and parking brake lever. Two cup holders, radio holder and three in-dash storage compartments. | Hour meter, battery level indicator, USB power port, headlight switch, on/off ignition key switch, gear selector and parking brake lever. Two cup holders, radio holder and three in-dash storage compartments. | |
| Optional Accessories | Canopy, solid folding windshield, 4-seat configuration, flat bed, 6-foot flat bed, bed sides, storage box, trash can mount, bed racking, electric bed lift, brush guard, 12V outlet, L-track attachment system, all-terrain tire kit, beverage cart, range cage, glass windshield. | ||
| Safety | Brake/tail/signal lights, ROPS certified hard cab, horn kit, back up alarm kit, parking brake alarm kit, 2-post ROPS kit, medical-bed. | ||
Built with high-quality materials and a sturdy frame, the Workman® GTX Series is designed to withstand rigorous use and harsh conditions, ensuring long-term reliability and durability.
The Toro Workman® GTX Series sets a new standard in utility vehicle performance, offering a combination of power, versatility, and comfort to meet the diverse needs of modern grounds maintenance and landscaping professionals.
Whether you’re managing a golf course, park, resort, or any other large property, the Workman® GTX Series provides the reliability and efficiency you need to get the job done right.
